High Precision 3D Coordinate Measuring Machine for Mold Industry with 0.1μm Resolution and Powerful Software
High Precision 3D Coordinate Measuring Machine for Mold Industry with 0.1μm Resolution and Powerful Software
Specifications
Hourly Temperature Cycle :
1 °C/H
Air Supply :
0.12-0.45m³/min
Max 3D Acceleration :
900mm/s
Brand Name :
UNIMETRO
Model Number :
HE
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Discussible
Payment Terms :
T/T
Supply Ability :
10 per month
Delivery Time :
20 work days
Packaging Details :
Wood Case
Max 3D Speed :
520mm/s
Air Pressure :
0.7-1.0Mpa
Working temperature :
18-22°C
Filter Accuracy :
0.3 um
Power Voltage :
220V
Description

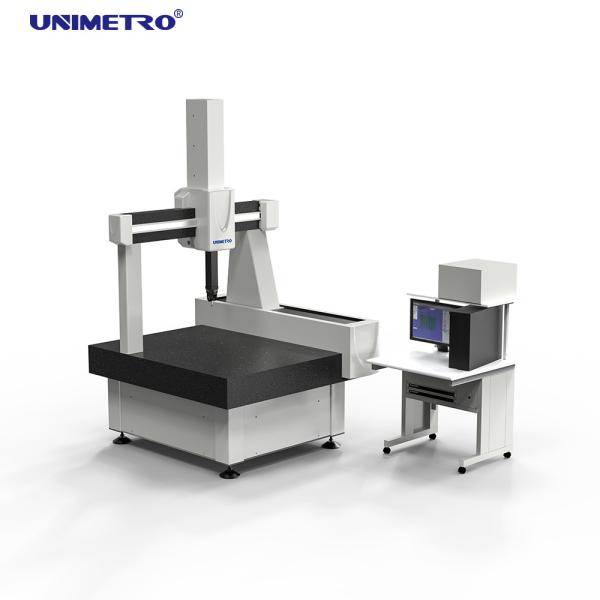

3D Coordinate Measuring Machine for Mold Industry with Powerful Software and 0.1μm Resolution
Product Overview

"Helium" represents the highest precision machine wholly developed and designed by UNIMETRO. Each component undergoes strict selection during manufacturing, ensuring perfect and timely assembly. All measuring machines are accepted according to ISO 10360-2 standards, utilizing two standardized acceptance procedures with ultra-precision laser measurement and DKD-certified solid measures.

Technical Specifications
Parameter Specification
Measuring Area X=710mm, Y=1016mm, Z=610mm
Overall Dimensions 1460 × 1800 × 2700 mm
Maximum Part Weight 1000kg
Machine Weight 2380kg
MPEe ≤ 1.8+L/350 (μm)
MPEp ≤ 2.3μm
Scale Resolution 0.5μm
Maximum 3D Speed 520mm/s
Maximum 3D Acceleration 900mm/s
Key Advantages
  • Patent double passive vibration damping
  • High quality granite worktable
  • Enclosed guides in all axes
  • Friction "automatic rectifying" transmission
  • Imported key parts
  • RENISHAW optical scale
  • Air bearing surround guide way in all 4 sides
  • Small holes technology
Software Features

Rational-DMIS - A newly developed large-scale integrated 3D measurement software package designed for both beginners and advanced users. Features full native DMIS kernel compliance with ISO 22093:2003 standards, making it a model for CMM measurement software standardization.

High Precision 3D Coordinate Measuring Machine for Mold Industry with 0.1μm Resolution and Powerful Software
Probe System Specifications

Probe Head: MH20i manual head by RENISHAW

Parameter Specification
Repeatability of position +0.5 μm
Positioning steps 15°
Rotating axis +180°
Swing axis 0°-90°
Total number of positions 140mm
Operational temperature 10-40℃

Probe: TP20 SF module / M2 probe assembly

Number Name Specifications Quantity
A-5004-7585 Probe extension rod 10mm 1
A-5004-7586 Probe extension rod 20mm 2
A-5000-2280 Probe extension rod 240mm 1
A-5000-7805 Ball probe Φ0.7×10mm 2
A-5000-7806 Ball probe Φ1×10mm 2
A-5000-3603 Ball probe Φ2×10mm 2
A-5000-3604 Ball probe Φ3×10mm 2
A-5000-4161 Ball probe Φ4×10mm 1
A-5000-2286 Ball probe Φ5×10mm 1
Probe spanner 2
Total: 10 Type 16pc
Company Information
High Precision 3D Coordinate Measuring Machine for Mold Industry with 0.1μm Resolution and Powerful Software High Precision 3D Coordinate Measuring Machine for Mold Industry with 0.1μm Resolution and Powerful Software High Precision 3D Coordinate Measuring Machine for Mold Industry with 0.1μm Resolution and Powerful Software High Precision 3D Coordinate Measuring Machine for Mold Industry with 0.1μm Resolution and Powerful Software
Our Clients & Agents
High Precision 3D Coordinate Measuring Machine for Mold Industry with 0.1μm Resolution and Powerful Software High Precision 3D Coordinate Measuring Machine for Mold Industry with 0.1μm Resolution and Powerful Software
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: We are a factory and provide responses within 24 hours.
Q2: What does your company mainly produce?
A2: We specialize in Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related equipment.
Q3: How to Choose the Appropriate Specification?
A3: Our professional team will recommend suitable specifications based on your product variety and measurement requirements.
Q4: Do you accept customized service?
A4: Yes, we provide both standard machines and customized solutions tailored to specific customer needs.
Q5: What is your warranty period?
A5: Our products come with a 1-year warranty. We have enhanced durability on breakable parts, ensuring reliable product quality.
