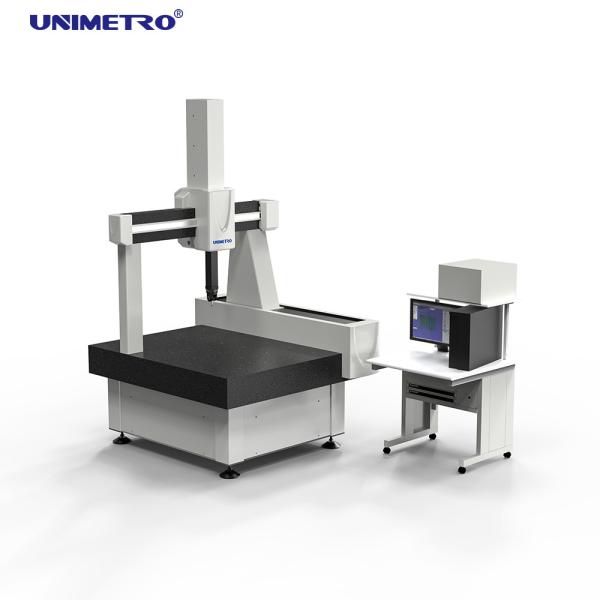

The bridge 3D Coordinate Measuring Machine adopts a simplified design, offering exceptional cost-effectiveness for precision machining applications. Ideal for testing requirements in electronics, molds, household appliances, automotive small parts, and aviation components.

The granite working platform serves as the foundation of the 3D Coordinate Measuring Machine, with all three axes constructed from granite material. This provides stress-free, rust-proof, and corrosion-resistant properties with low thermal expansion coefficient and minimal temperature-induced deformation. Effectively reduces machine vibration and enhances overall performance.

Features friction transmission across all three axes with a "self-correcting deviation" stable transmission system. The "fixed + micro suspension" structure ensures parallel transmission to the guide rail while maintaining precision stability and motion consistency. Provides enhanced collision protection for safer operation.

Utilizes Renishaw high-precision grating rulers with resolution ranging from 0.1μm to 20nm. Renishaw's global reputation ensures quality and reliable after-sales service for all coordinate system components.

The Helium series 3D Coordinate Measuring Machine is specifically designed for small and medium-sized products, molds, and electronic products industries. Available in customizable sizes according to customer requirements. Features lightweight design, rapid installation, and no foundation requirements.

Rational-DMIS is a comprehensive integrated 3D measurement software package developed with both beginner-friendly usability and advanced functionality. Built with a native DMIS kernel compliant with ISO standard ISO 22093:2003, it sets the standard for CMM measurement software.

MH20I Manual Head by RENISHAW (Manual)

• Indexing axis A: 0°~90° Step distance: 15°
• Indexing axis B: ±180° Step distance: 15°
• Spatial measurement orientation: 168 times
• Positional repeatability: 1.5μm

PH20MT Motorized Probe Heads by RENISHAW

• Repeatability of position: +0.5 μm
• Positioning steps: Limitless
• Rotating axis: 360°
• Swing axis: 0°-115°
• Total number of positions: Countless
• Operational temperature: 10-40℃

PH10T by RENISHAW

Compatible with any M8 threaded interface probe and extension rod (maximum allowable lengthening to 300mm).

Primarily used for measuring cabinets, frames, gears, cams, worm gears, worms, blades, curves, and curved surfaces in machinery, automotive, aviation, military, furniture, tool prototypes, and other small to medium-sized parts and mold industries.

Also applicable in electronics, hardware, and plastics industries for precise detection of workpiece dimensions, shape, and form tolerances. Capable of part inspection, shape measurement, and process control tasks.
