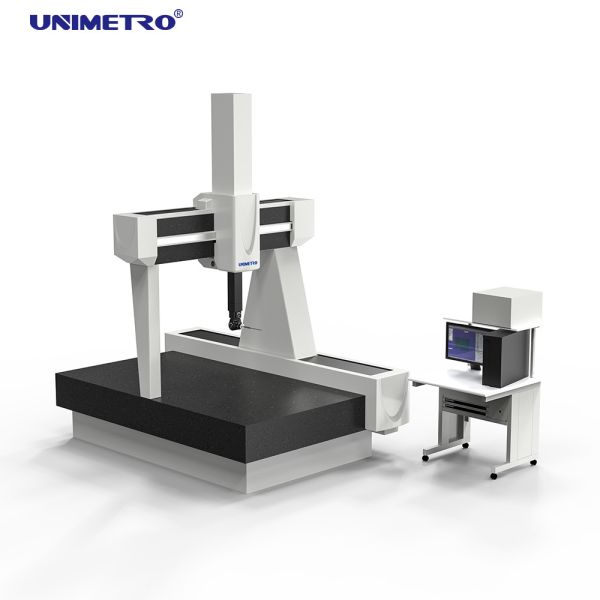

3D Coordinate Measuring Machine with Large Measuring Range
3D Coordinate Measuring Machine with Large Measuring Range
Specifications
Brand Name :
UNIMETRO
Model Number :
Krypton
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1 per 2 months
Delivery Time :
50 work days
Packaging Details :
Wood case
Power Voltage :
220V
MPEE :
1.5~3+L/350um
Controller :
RENISHAW
Price :
Discussible
Product Name :
3D Coordinate Measurement Machine
MPEP :
1.5~3+L/350um
Probe :
PH10,PH10MT,PH20 etc for option
Description
3D Coordinate Measuring Machine with Large Measuring Range
Mold Industry 3D Coordinate Measuring Machine with Powerful Software and 0.1 μm Resolution
Key Advantages
3D Coordinate Measuring Machine with Large Measuring Range
  • Navigator series gantry type 3D coordinate measuring machine is ideal for accurate inspection of enormous parts in automotive, aviation, marine, and large mold industries
  • Advanced structural design ensures high accuracy, stability, rigidity, and reliable performance even in workshop environments
  • Multiple safety devices ensure safe operation with automatic temperature compensation and geometric error compensation throughout the measuring space
  • DUO-Linear scales and DUO axis driving system design provides high reliability and performance with simple, smart structure
  • Compatible with Renishaw trigger probes, contact scanning probes, LS series laser line scanning heads, and high accuracy laser point scanning probes for complex curve high-speed scanning applications (Reverse engineering)
Technical Specifications
Power Voltage Air Pressure Filter Accuracy Air Supply
220V 0.7-1.0Mpa 0.3μm 0.12-0.45m³/min
Temperature Range Hourly Temperature Cycle Thermal Gradient Relative Humidity
18-22°C ≤ 1.8+L/350 (μm) 1°C/m 55%-65%
Applications

This machine is primarily used for measuring cabinets, frames, gears, cams, worm gears, worms, blades, curves, curved surfaces, and other components in machinery, automotive, aviation, military, furniture, tool prototypes, and various small to medium-sized parts and mold industries. It is also applicable in electronics, hardware, and plastics industries for precise detection of workpiece dimensions, shape, and geometric tolerances, enabling part inspection, shape measurement, and process control tasks.

The Navigator series 3D coordinate measuring machine is widely used in heavy and high-precision industries including automotive, aviation, marine, and large mold manufacturing.

Company Information
3D Coordinate Measuring Machine with Large Measuring Range 3D Coordinate Measuring Machine with Large Measuring Range 3D Coordinate Measuring Machine with Large Measuring Range 3D Coordinate Measuring Machine with Large Measuring Range
Our Clients & Agents
3D Coordinate Measuring Machine with Large Measuring Range 3D Coordinate Measuring Machine with Large Measuring Range
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: We are a factory and provide responses within 24 hours.
Q2: What does your company mainly produce?
A2: We primarily manufacture Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related equipment.
Q3: How to Choose the Appropriate Specification?
A3: Our professional team will recommend suitable measuring instrument specifications based on the variety and size of products you need to measure.
Q4: Do you accept customized service?
A4: Yes! We provide both standard machines and customized solutions tailored to customer requirements.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. Our product quality is very stable, and we have made significant improvements to breakable parts. You can be confident in our product quality.
