Specifications
Weight :
1240kg
Voltage :
90kV
Tube Power :
8W
Brand Name :
UNICOMP
Model Number :
UNX6040D
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1Set
Price :
can negotiate
Supply Ability :
300 sets per month
Delivery Time :
30 days
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Payment Terms :
T/T,L/C
Power Supply :
220V±10%,50Hz/60Hz 4A
Description

The Most Economic X-Ray inspection machine AX7900 with high performance


Description of IC X Ray machine AX7900:


This machine integrates a 90kV micro-focus X-ray tube with 5μm focal spot and high-quality FPD digital flat detector. Standard precise XY multi-axis motion is configured, along with optional ±60° angular tilting detection.


The synchronized Z-axis adjustment of X-ray source and detector smoothly regulates imaging magnification and field of view. Featuring quick sample target alignment and powerful DXI image processing algorithm, it realizes programmable XY sequential inspection for diversified defect detection tasks.


It supports maximum loading dimension 600×520mm, effective inspection range 505×440mm, and stable system magnification around 300X.


APPLICATION of IC Xray machine AX7900:

  • LED, SMT, BGA, CSP, Flip Chip Inspection.
  • Semiconductor, Packaging components, Battery Industry.
  • Electronic components, Auto parts, Photovoltaic Industry.
  • Aluminum Die Casting, Moulding Plastic.
  • Ceramics, Other Special Industries



FEATURES of IC Xray machine AX7900:

  • 90KV 5μm X-ray tube, FPD Detector.
  • Multi-function workstation, X-Y multi-axis movement. ±60° "Arc" motion(Option).
  • Motion controls include X/Y table motion plus Z-axis tube and detector movement, ±60° tilt motion (option).
  • Multi-function DXI image processing system.
  • X/Y programming function for multiple image inspection routines
  • Max. loading area 420mm x 420mm, max. detection area 380 x 380mm, with ~300X System Magnification.
  • BGA void/area auto-measurement plus report generation.


Technical Specifications of AX7900


Item Definition Specs
System Parameters Size 1215(W)x1325(D)x1700(H)mm
Weight 1240kg
Power 220V±10%,50Hz/60Hz 4A
Power Consumption 0.8kW
X-ray Tube Type Closed
Max.Voltage 90kV
Max.Power 8W
Spot Size 5μm
X-ray System Intensifier FPD
Monitor 24 ‘’HD
Hard Disk 1TB HDD
System OS Windows 11 64-bit
Detection Region Max.Loading Size 600mm x 520mm
Max.Inspection Area 505mm x 440mm
X-ray Leakage <1μSv/h

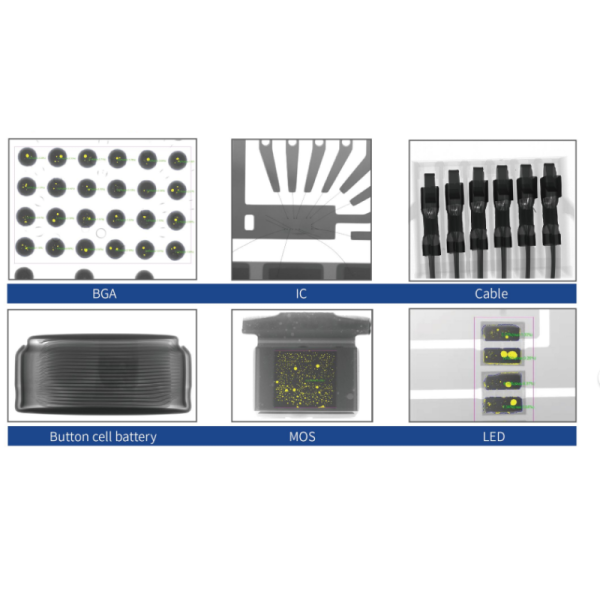

Inspection Images of IC X Ray machine AX7900:

High Sensitivity Imaging PCBA BGA X-ray AX7900 Unicomp Semiconductor Testing Machine

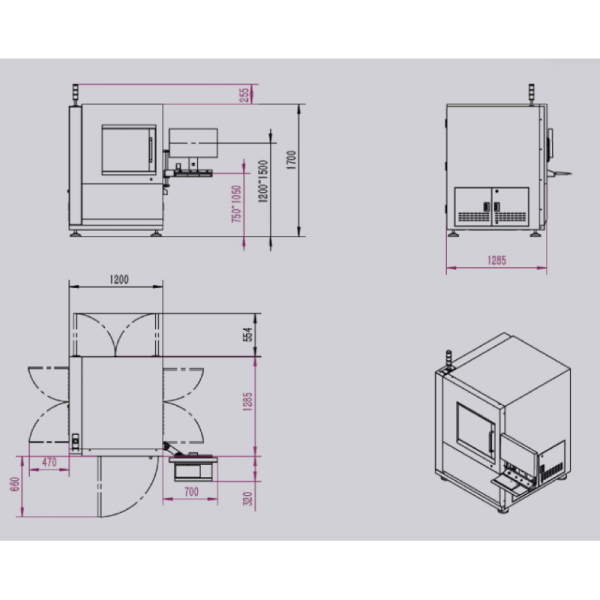

Dimensions and Appearance:

High Sensitivity Imaging PCBA BGA X-ray AX7900 Unicomp Semiconductor Testing Machine
Application Fields:

High Sensitivity Imaging PCBA BGA X-ray AX7900 Unicomp Semiconductor Testing Machine
