Specifications
Brand Name :
Unicomp
Model Number :
AX9600
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 set
Price :
On request
Payment Terms :
T/T,L/C
Supply Ability :
500 sets per month
Delivery Time :
30-35 days after order confirmation
Packaging Details :
Wooden case
Dimensions :
1655mm(L)×2100mm(W)×1880mm(H)
Tube Type :
Open Type
Machine Weight :
4590KG
Voltage :
160kv
Description

Unicomp High-end Semiconductor X-Ray Inspection System AX9600



UNICOMP AX9600 features a self-developed 160kV high-power open micro-focus X-ray tube, delivering an ultra-small 0.8μm focal spot. With exceptional magnification up to 2000 times and outstanding ray penetration capacity, it accurately measures void ratio of TVS diodes, and is ideal for high-precision quality inspection of advanced IC packaging, HBM memory chips and GPU semiconductor components.



Specifications:


System SummaryDimensions1655mm(L)×2100mm(W)×1880mm(H)
Weight4590kg
Power Supply220V±10% 50Hz/60Hz 9A
Power Consumption2kw
X-ray Tube

Tube TypeOpen Type
Voltage160kv
Max.Power64W
Focus Spot Size1µm
Imaging SystemX-ray DetectorFPD
Pixel Size84µm
Detection Area129*129mm
Pixel Matrix1536*1536[pixel]
Frame RatesMax30fps
System Magnification34000X
Motion control systemMax. Payload size520*520[mm]
Max.Detection size520*520[mm]
X/Y/Z-Axis Travel Distance(mm)550/710/265[mm]
Tilt and RotationDetect XY±70° Tilt
Industrial PCMotion Control Mode34"HD 4K curved display
Max.Payload SizeWindows 11 64-bit
Max.Detection Size4TB HDD+512G SSD
X/Y/Z-axis travel distance(mm)32G
Tilt and Rotationi5 12 generation
OtherDoor OpenAutomatic Door
X-Ray Safety＜1µSv/h

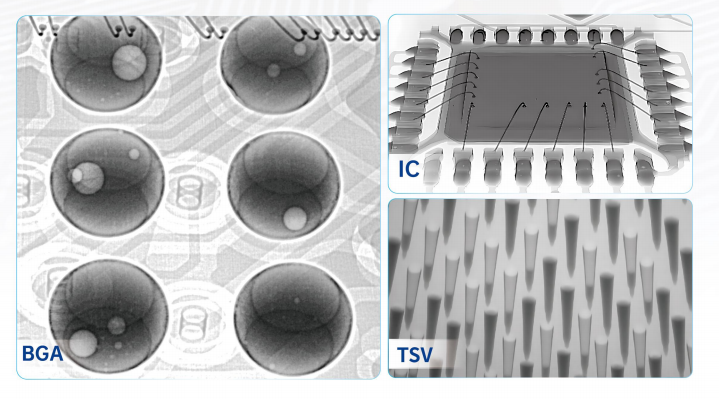

Inspection Images:

Unicomp AX9600 160KV Open Tube 2.5D X-ray for High-Precision TVS Diode Internal

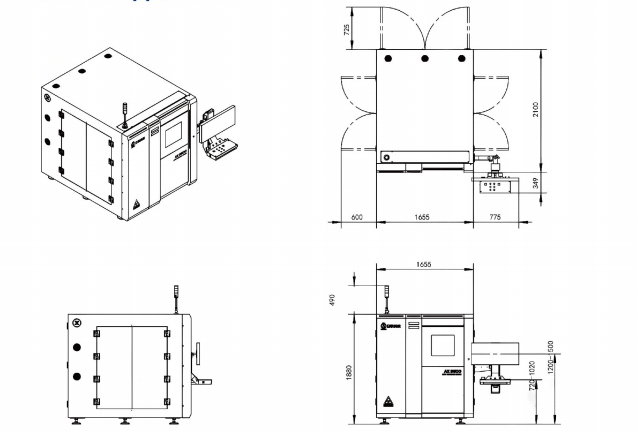

Dimensions and Appearance:

Unicomp AX9600 160KV Open Tube 2.5D X-ray for High-Precision TVS Diode Internal
