Unicomp UNCT3200 High-Resolution 450KV 3D CT/computed tomography System for engine blades Castings porosity analysis
Unicomp UNCT3200 High-Resolution 450KV 3D CT/computed tomography System for engine blades Castings porosity analysis
Unicomp UNCT3200 High-Resolution 450KV 3D CT/computed tomography System for engine blades Castings porosity analysis
Unicomp UNCT3200 High-Resolution 450KV 3D CT/computed tomography System for engine blades Castings porosity analysis
Specifications
Brand Name :
UNICOMP
Model Number :
UNCT3200
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1Set
Price :
can negotiate
Payment Terms :
T/T,L/C
Supply Ability :
300 sets per month
Delivery Time :
30 days
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Tube Type :
Sealed
Weight :
28000kg
Voltage :
450kV
Dimension :
5608mm(L)×2508mm(W)×3167mm(H)
Tube Power :
1500W
Description
Unicomp UNCT3200 High-Resolution 450KV 3D CT/Computed Tomography System for Engine Blades Castings Porosity Analysis
Product Overview

UNCT3200 is a self-shielded, multi-purpose industrial CT computed tomography system designed to accommodate workpieces of various sizes and materials. This system meets industrial CT application demands across diverse industries and is specially engineered for high-precision inspection of medium and large products, including metal castings, non-ferrous metals, new energy lithium battery modules, non-metallic parts, and composite materials.

Product Specifications
Attribute Value
Maximum tube voltage 450kV
Focal size (EN 12543) d=0.4mm/d=1.0mm
Maximum detected weight 100kg
Imaging area 427mm×427mm
Dimensions 5608×2508×3167mm
Machine Weight 28000kg
Power 15kw
Technical Parameters
Parameter Value
Continuous power 800W/1800W
Cooling medium Oil
Training Factory training available
Key Capabilities
  • Material composition analysis
  • Failure diagnostics and structural evaluation
  • Defect identification and precise measurement
  • Reverse engineering applications
  • High-precision motion control system
Applications

This system is extensively used for examining ceramics, pottery artifacts, metallic objects, animal biological specimens, fiber materials, and precision turbine blade porosity analysis.

Support & Services
  • Comprehensive technical support and installation assistance
  • Ongoing maintenance and repair services
  • Operator training and consultation
  • 1-year warranty with lifetime technical support
  • 24-hour email response for technical inquiries
Frequently Asked Questions
Q: How is the machine packaged for delivery?

A: All X-ray inspection machines are packed in standard wooden solid cartons for safe shipping.

Q: What warranty and after-sales service do you provide?

A: We offer 1-year warranty for spare parts with lifetime technical support, including assistant videos for troubleshooting.

Q: Do you provide factory training?

A: Yes, we welcome visitors to our factory and provide complimentary training sessions.

Inspection Images
Unicomp UNCT3200 High-Resolution 450KV 3D CT/computed tomography System for engine blades Castings porosity analysis

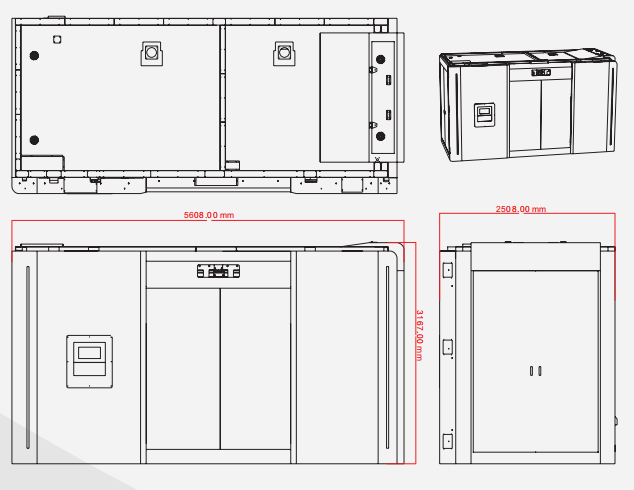

Dimensions and Appearance
Unicomp UNCT3200 High-Resolution 450KV 3D CT/computed tomography System for engine blades Castings porosity analysis
