Specifications
Brand Name :
UNICOMP
Model Number :
AX9600
Certification :
CE
Place of Origin :
China
MOQ :
1Set
Price :
can negotiate
Payment Terms :
T/T,L/C
Supply Ability :
30 sets per month
Delivery Time :
30 days
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Model :
AX9600
Monitor :
34'HD 4K curved display
System OS :
Windows11 64-bit
RAM :
32G
CPU Model :
i5 12 generation
Automatic Calculation :
Automatic bubble measurement for BGA, QFN and other packaged electronic components, and support the output result report
Description

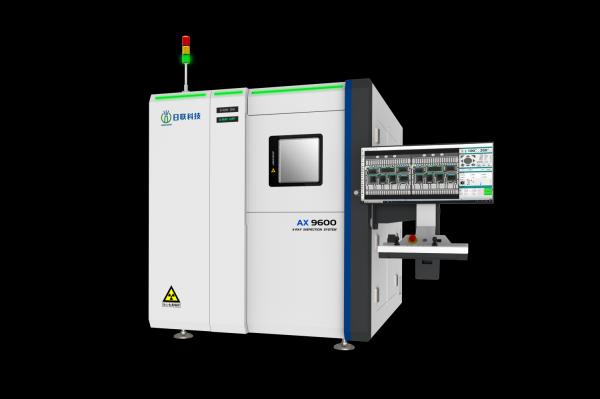

Ultra High Resolution Accurate Solder Void Inspection PCBA MOS Chip X-ray AX9600 Unicomp Power Component PCB


Unicomp


Equipped with UNICOMP’s independently developed 160kV high-power open micro-focus X-ray tube, the AX9600 achieves an ultra-fine focal spot of 0.8μm.

Combined with 2000× ultra-high optical magnification and superior X-ray penetration performance, it enables high-accuracy void fraction testing for TVS diodes.

It is specially optimized for high-precision non-destructive inspection of advanced IC packaging, HBM high-bandwidth memory and GPU semiconductor core components.



Specifications:


System Summary Dimensions 1690mm(L)×2116mm(W)×1880mm(H)
Weight 4590kg
Power Supply 220V±10% 50Hz/60Hz 9A
Power Consumption 2kw
X-ray Tube

 Tube Type Open Type
Voltage 160kv
Max.Power 64W
Focus Spot Size 1µm
Imaging System X-ray Detector FPD
Pixel Size 84µm
Detection Area 129*129mm
Pixel Matrix 1536*1536[pixel]
Frame Rates Max30fps
System Magnification 34000X
Motion control system Max. Payload size 520*520[mm]
Max.Detection size 520*520[mm]
X/Y/Z-Axis Travel Distance(mm) 550/710/265[mm]
Tilt and Rotation Detect XY±70° Tilt
Industrial PC Motion Control Mode 34"HD 4K curved display
Max.Payload Size Windows 11 64-bit
Max.Detection Size 4TB HDD+512G SSD
X/Y/Z-axis travel distance(mm) 32G
Tilt and Rotation i5 12 generation
Other Door Open Automatic Door
X-Ray Safety ＜1µSv/h

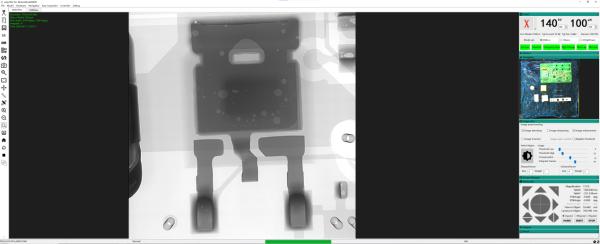

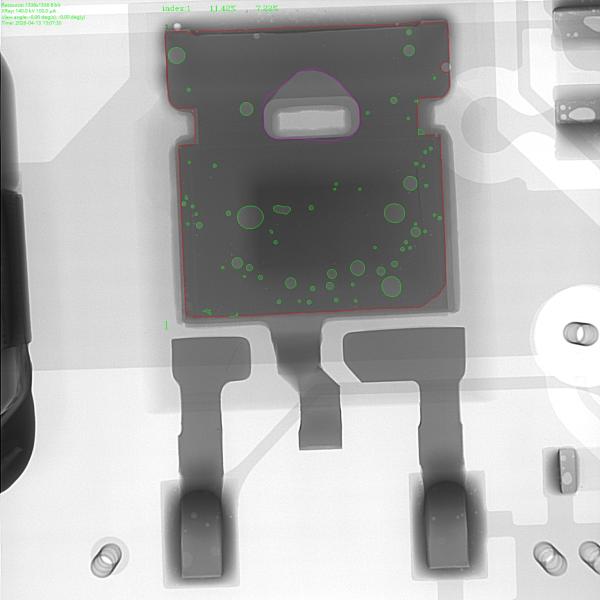

Inspection Images:

Ultra High Resolution Accurate Solder Void Inspection PCBA MOS Chip X-ray AX9600 Unicomp Power Component PCB

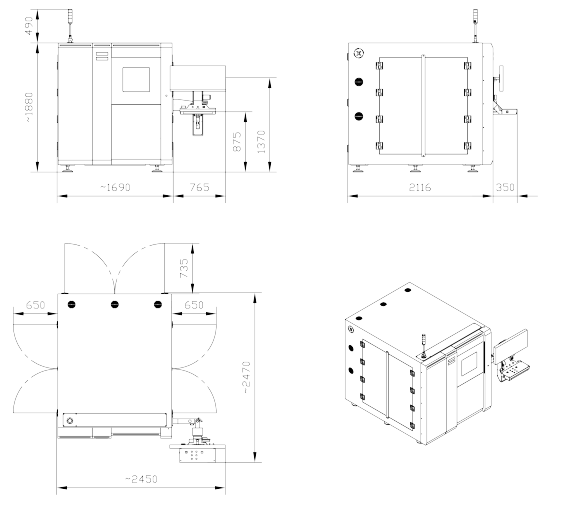

Dimensions and Appearance:

Ultra High Resolution Accurate Solder Void Inspection PCBA MOS Chip X-ray AX9600 Unicomp Power Component PCB

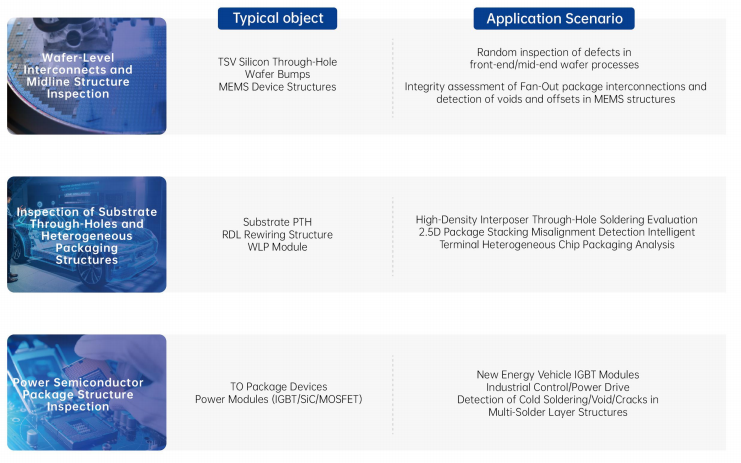

Application Areas:

Ultra High Resolution Accurate Solder Void Inspection PCBA MOS Chip X-ray AX9600 Unicomp Power Component PCB
