Multi-function DR CT Dual Imaging Industrial X-ray CT UNCT3500 Unicomp Non-Destructive Testing
Multi-function DR CT Dual Imaging Industrial X-ray CT UNCT3500 Unicomp Non-Destructive Testing
Specifications
Power Supply Voltage :
380AC/50Hz
Dimension :
5608mm(L)×2508mm(W)×3167mm(H)
Tube Type :
Open Tube
Brand Name :
UNICOMP
Model Number :
UNCT3500
Certification :
CE
Place of Origin :
China
MOQ :
1Set
Price :
can negotiate
Supply Ability :
300 sets per month
Delivery Time :
30 days
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Payment Terms :
T/T,L/C
Weight :
35000kg
Description

Multi-function DR CT Dual Imaging Industrial X-ray CT UNCT3500 Unicomp Non-Destructive Testing


Detection purpose:

Adaptable to a wide range of sizes and materials, this system meets the diverse industrial CT application requirements of various sectors. It is primarily utilized for the precision inspection of medium-to-large-scale products, including metal castings and non-ferrous metals, lithium-ion new energy battery modules, non-metallic workpieces, and composite materials.



Features:


● Strong penetration,high reliable,low breakdown, long life;


● High definition,resolution FPD;


● Multi-functional workstation,360°rotation and shift;


● High automation,fast detection speed;


● User friendly software design for interfacing and to facilitate,customize software function development requirement.



Pre-Sales Service


* Inquiry and consulting support.


* Sample testing support.


* View our Factory.


* Freely provide project designing, process designing, choosing suitable equipment for you.



After-Sales Service


* The quality guarantee period of our machine is 12 months.


* Within the quality guarantee period, free parts replacement and corresponding service are available.



System Parameters Dimensions 5608*2508*3167mm
Equipment weight 35000kg
Power 15KW
Detection range Φ600*800mm
X-ray leakage dose rate ≤1uSv/h
X-ray Generator Tube voltage 225kV,450KV
X-ray tube type Open tube
Power 500W,1500W
Focal size ＜4μm0.4/1mm
Detector Image area 145mm x 145mm
Resolution 3.0LP/mm
Detector ( Selection FPD )

Effective Imaging Area

 427*427mm,614mm
Pixel matrix 3072mm*3072mm,44cm/s
Pixel size 139μm,0.2mm

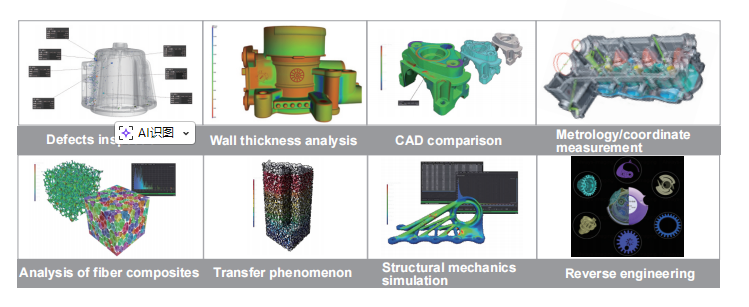

Function Application

Multi-function DR CT Dual Imaging Industrial X-ray CT UNCT3500 Unicomp Non-Destructive Testing

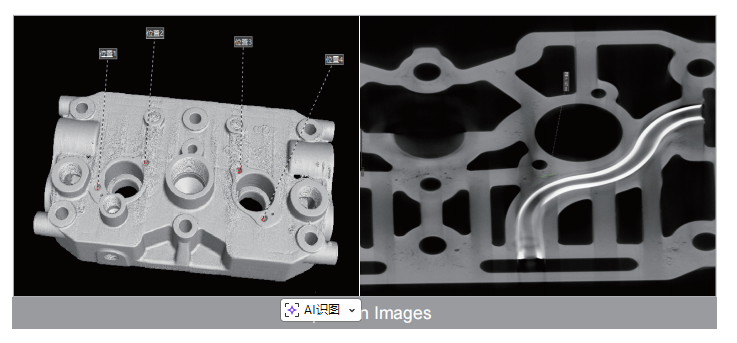

Inspection Images

Multi-function DR CT Dual Imaging Industrial X-ray CT UNCT3500 Unicomp Non-Destructive Testing

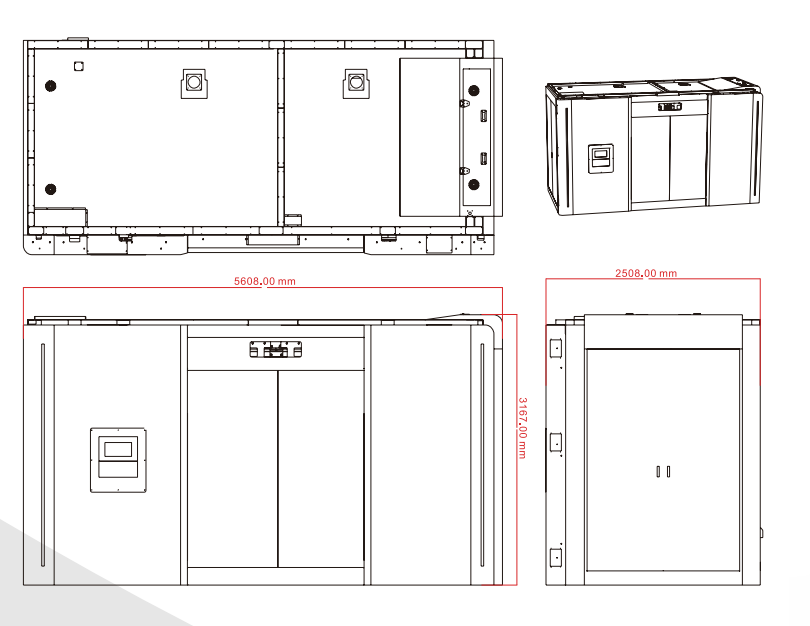

Dimensions and Appearance

Multi-function DR CT Dual Imaging Industrial X-ray CT UNCT3500 Unicomp Non-Destructive Testing
