Unicomp 110KV X-ray Inspection for MOSFET Void Detection and Reliability Analysis AX8300MAX
Unicomp 110KV X-ray Inspection for MOSFET Void Detection and Reliability Analysis AX8300MAX
Unicomp 110KV X-ray Inspection for MOSFET Void Detection and Reliability Analysis AX8300MAX
Unicomp 110KV X-ray Inspection for MOSFET Void Detection and Reliability Analysis AX8300MAX
Unicomp 110KV X-ray Inspection for MOSFET Void Detection and Reliability Analysis AX8300MAX
Unicomp 110KV X-ray Inspection for MOSFET Void Detection and Reliability Analysis AX8300MAX
Specifications
Brand Name :
UNICOMP
Model Number :
AX8300MAX
Certification :
CE
Place of Origin :
China
MOQ :
1Set
Price :
can negotiate
Payment Terms :
T/T,L/C
Supply Ability :
30 sets per month
Delivery Time :
30 days
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Tube Type :
Sealed
Detector :
Flat Panel Detector (FPD)
Pixel Size :
84μm
Monitor :
27"HD 4K display
System OS :
Windows11 64-bit
CPU Model :
i7 6 generation
Description

Unicomp AX8300MAX 110KV X-ray Inspection for Internal Cracks in Ceramic Components



Application

BGA, CSP, LED, Flip Chip; Automotive Components and New Energy Industry; Aluminum Die casting ,molded plastic; Ceramic products and other special industries.


Features
1. Dedicated semiconductor, resolution 5 µm
2. Large detection range, batch detection efficiency
3. Double rocker design easy to operate
4. Compatible with 2D, 2.5D, Extensible 3D
5. Dual screen design, multi-task parellel
6. Equipped with semiconductor automatic detection algorithm

Specifications
Product name AX8300MAX
Dimension 1286(W)*1540(D)*1700(H)[mm]
Machine Weight 1530kg
Power supply 220V±10% 50Hz/60Hz 4A
Detecor
 Hign resolution FPD
Voltage 110kV
Power 900w
Tube Type Sealed
Max.Power 20W
Detection Area

129*129[mm]
Pixel Matrix 1536*1536[pixel]
Frame Rates Max30fps
Geometric Magnification 47.7X

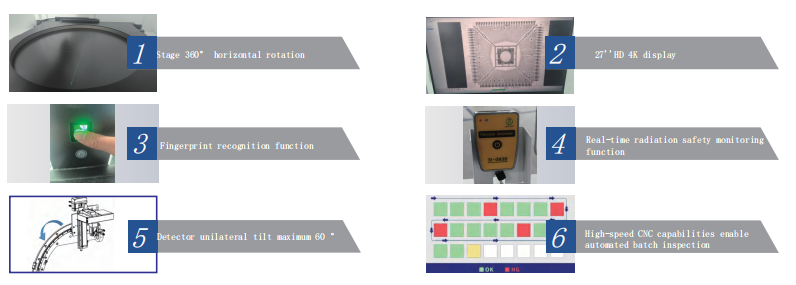

Functions and Features
Unicomp 110KV X-ray Inspection for MOSFET Void Detection and Reliability Analysis AX8300MAX

Inspection Images
Unicomp 110KV X-ray Inspection for MOSFET Void Detection and Reliability Analysis AX8300MAX

FAQ
1. How about the package? Is it safe during the delivery?
All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.

2. Do you provide the Warranty? How about the after-sales service?
1-year warranty free for spare parts, Whole life technical support.
We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.

3. If we come to your factory if you will provide free training?
Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.

Our Services
Help customers analyze product projects and provide detection solutions.Provide professional detection solutions.We have skilled jig design services.24-hour feedback speed by email to others.Free sample detection test.Provide shipping/delivery information checking service.One year guarantee, all life maintain promise.
