Europe brand best Xray machine Unicomp AX7900 for high precision printed circuit board inspection
Europe brand best Xray machine Unicomp AX7900 for high precision printed circuit board inspection
Europe brand best Xray machine Unicomp AX7900 for high precision printed circuit board inspection
Europe brand best Xray machine Unicomp AX7900 for high precision printed circuit board inspection
Europe brand best Xray machine Unicomp AX7900 for high precision printed circuit board inspection
Europe brand best Xray machine Unicomp AX7900 for high precision printed circuit board inspection
Specifications
Payment Terms :
T/T,L/C
Application :
SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Size :
1215(L)x1325(W)x1700(H)mm
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Model Number :
AX7900
Weight :
1240kg
MOQ :
1Set
Delivery Time :
30 days
X-ray Leakage :
< 1uSv/h
Brand Name :
UNICOMP
Power Consumption :
0.8KW
Industry :
Electronics Industry
Place of Origin :
China
Price :
can negotiate
Tube Voltage :
90KV
Supply Ability :
300 sets per month
Name :
Unicomp X-ray Inspection Machine
Certification :
CE, FDA
Description

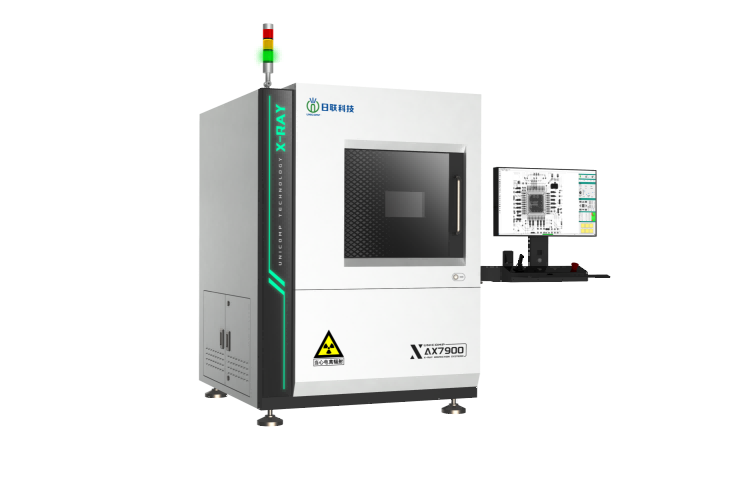

Unicomp AX7900 X-ray Inspection System
High-precision X-ray machine for printed circuit board inspection with advanced imaging capabilities and European engineering excellence.
System Overview
The AX7900 features a 90KV 5μm X-ray tube with FPD detector, multi-function workstation, and comprehensive motion control system. The system offers ±60° tilt motion (optional) and Z-axis movement for precise magnification and field of view adjustment.
Key Features
  • 90KV 5μm X-ray tube with FPD Detector
  • Multi-function workstation with X-Y multi-axis movement
  • ±60° "Arc" motion (optional)
  • Motion controls: X/Y table motion plus Z axis tube and detector movement
  • Multi-function DXI image processing system
  • X/Y programming function for multiple image inspection routines
  • Maximum loading area: 600mm x 520mm
  • Maximum detection area: 505mm x 440mm
  • ~52X Geometric Magnification
  • BGA void/area auto-measurement with report generation
Applications
LED, SMT, BGA, CSP, Flip Chip Inspection, Semiconductor, Packaging components, Battery Industry, Electronic components, Auto parts, Photovoltaic Industry, Aluminum Die Casting, Moulding Plastic, Ceramics, and other special industries.
Technical Specifications
Item Definition Specifications
System Parameters Size 1215(L) x 1325(W) x 1700(H) mm
Weight 1240 kg
Power 220AC/50Hz
Power Consumption 0.8 kW
X-ray Tube Type Closed
Max. Voltage 90 kV
Max. Power 8 W
Spot Size 5 μm
X-ray System Intensifier FPD
Monitor 24" LCD
Geometric Magnification 52X
Detection Region Max. Loading Size 600mm x 520mm
Max. Inspection Area 505mm x 440mm
X-ray Leakage <1 μSv/h
Inspection Images
