2D/2.5D/3D All‑in‑One Imaging 160kV Open Tube Semiconductor BGA AX9500 Unicomp Post‑rework PCBA QC Scanner
2D/2.5D/3D All‑in‑One Imaging 160kV Open Tube Semiconductor BGA AX9500 Unicomp Post‑rework PCBA QC Scanner
2D/2.5D/3D All‑in‑One Imaging 160kV Open Tube Semiconductor BGA AX9500 Unicomp Post‑rework PCBA QC Scanner
2D/2.5D/3D All‑in‑One Imaging 160kV Open Tube Semiconductor BGA AX9500 Unicomp Post‑rework PCBA QC Scanner
Specifications
Payment Terms :
T/T,L/C
Application :
SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Brand Name :
UNICOMP
Model Number :
AX9500
MOQ :
1Set
Delivery Time :
30 days
Price :
can negotiate
Industry :
Electronics Industry
Supply Ability :
300 sets per month
Name :
Unicomp X-ray Inspection Machine
Certification :
CE, FDA
X-ray Leakage :
< 1uSv/h
Place of Origin :
China
Description

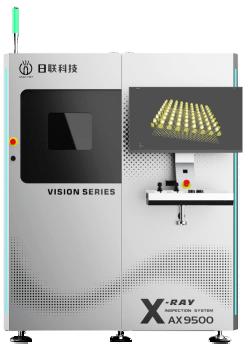

AX9500 UNICOMP X-Ray Computed Tomography System
High-precision 2D/2.5D/3D all-in-one imaging system for accurate PCB and BGA inspection with 160kV open tube technology.
Advanced Inspection Capabilities
Fully upgraded system capable of CT detection on BGA, CSP, flip chips, LEDs and other semiconductors. Ideal for SMT welding analysis and 3D tomography CT scanning (planar CT + cone beam CT).
Industry Applications
  • Semiconductor manufacturing
  • SMT assembly processes
  • Photovoltaic industry
  • Ceramic products and specialized industries
  • Automotive parts inspection
  • Aluminum die-casting mold castings
  • Molded plastic components
System Specifications
System Summary
Footprint1580(W) × 1860(D) × 2000(H) mm
Machine Weight≈3750 kg
Power4.5 kW
Max. Voltage160 kV
X-Ray Leakage<0.5 μSv/h
Imaging System
Tube TypeOpen tube
Resolution1 μm (Optional 0.5 μm)
DetectorFPD
System Magnification2000X
Inspection Area
Max. Inspection Dimension610 × 540 mm
Max. Load Dimension610 × 580 mm
Max. Inspection Area (3D)Planar 3D: 450(X) × 450(Y) mm
Cone-beam 3D: 50(D) × 150(L) mm
Motion Control ModeJoystick, Mouse & Keyboard
Detector Angle360° full viewing angle, 2×70 degree tilt

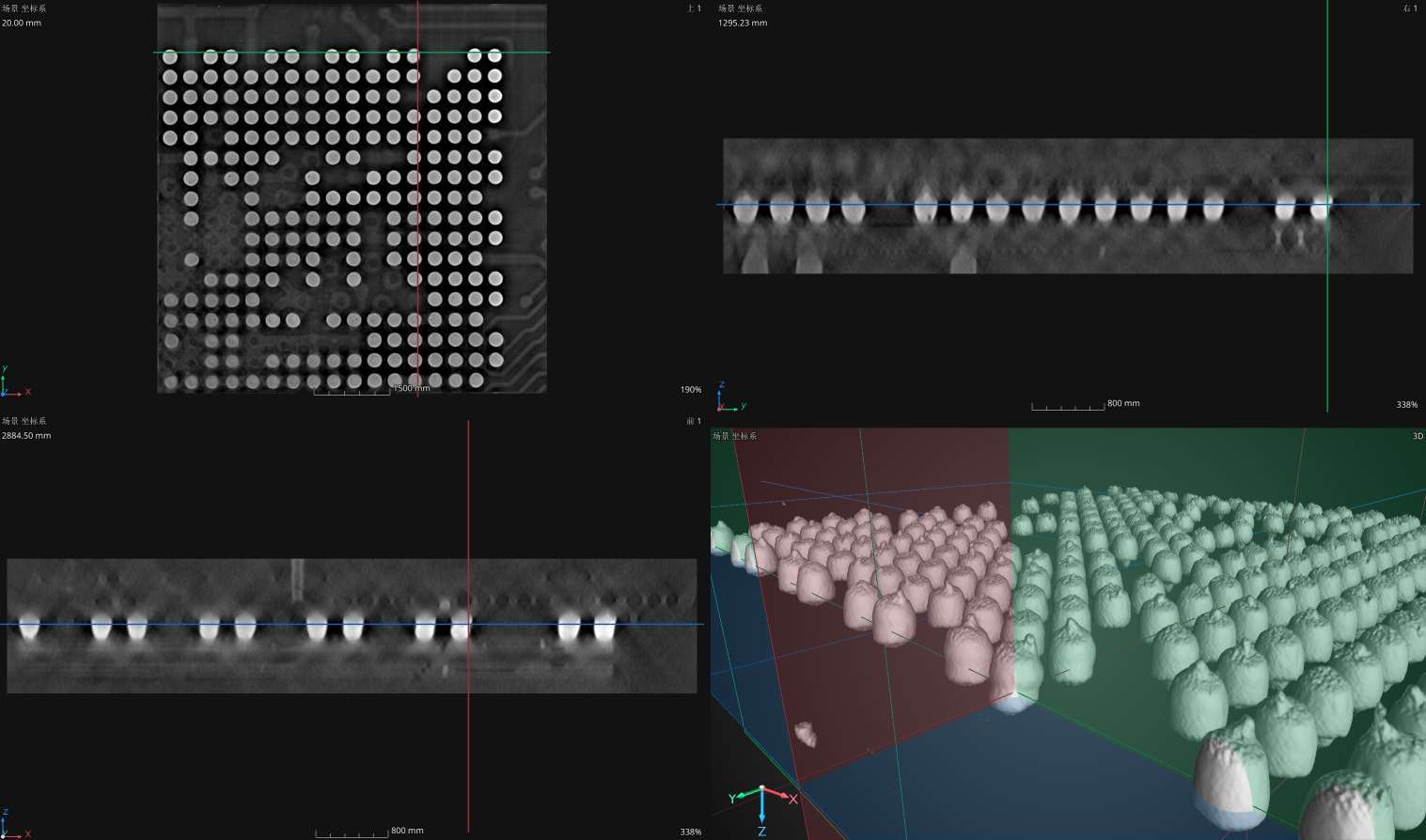

X-Ray Inspection Sample
2D/2.5D/3D All‑in‑One Imaging 160kV Open Tube Semiconductor BGA AX9500 Unicomp Post‑rework PCBA QC Scanner
Specifications are subject to change without notice. All trademarks are the property of the system maker.
