Description
AX7900 Super Resolution X-Ray Inspection System for Antenna Internal Inspection
The UNICOMP AX7900 X-Ray Inspection System delivers superior resolution imaging for comprehensive internal inspection of antenna components and other electronic assemblies.
System Overview
Equipped with a 90kV/5μm microfocus X-ray tube and high-performance FPD flat-panel detector, the AX7900 features a versatile multifunctional workstation. The system includes standard XY multi-axis platform motion with optional ±60° tilting movement. Independent Z-axis travel for both X-ray tube and FPD enables flexible adjustment of magnification and field of view.
Built with precise target positioning and professional DXI image processing software, this system supports programmable XY scanning for automated batch inspection sequences. It offers a maximum loading area of 420*420 mm, maximum effective detection area of 380*380 mm, and system magnification up to 300X. The integrated automatic BGA void & area measurement function supports one-click inspection report export for efficient quality control.
Application Fields
  • LED, SMT, BGA, CSP, Flip Chip Inspection
  • Semiconductor and Packaging Components
  • Battery Industry and Electronic Components
  • Auto Parts and Photovoltaic Industry
  • Aluminum Die Casting and Moulding Plastic
  • Ceramics and Other Special Industries
Key Features
  • 90KV 5μm X-ray tube with FPD Detector
  • Multi-function workstation with X-Y multi-axis movement
  • Optional ±60° "Arc" motion capability
  • Motion controls include X/Y table motion plus Z-axis tube and detector movement
  • Multi-function DXI image processing system
  • X/Y programming function for multiple image inspection routines
  • Maximum loading area 420mm x 420mm
  • Maximum detection area 380mm x 380mm
  • Approximately 300X System Magnification
  • BGA void/area auto-measurement with report generation
Technical Specifications
Item Definition Specifications
System Parameters Size 1215(L) x 1325(W) x 1700(H) mm
Weight 1240 kg
Power 220V±10% 50Hz/60Hz 4A
Power Consumption 0.8 kW
X-ray Tube Type Closed
Max. Voltage 90 kV
Max. Power 8 W
Spot Size 5 μm
X-ray System Intensifier FPD
Monitor 24" HD
Geometric Magnification 52X
Detection Region Max. Loading Size 600mm x 520mm
Max. Inspection Area 505mm x 440mm
X-ray Leakage <1 μSv/h
Inspection Images

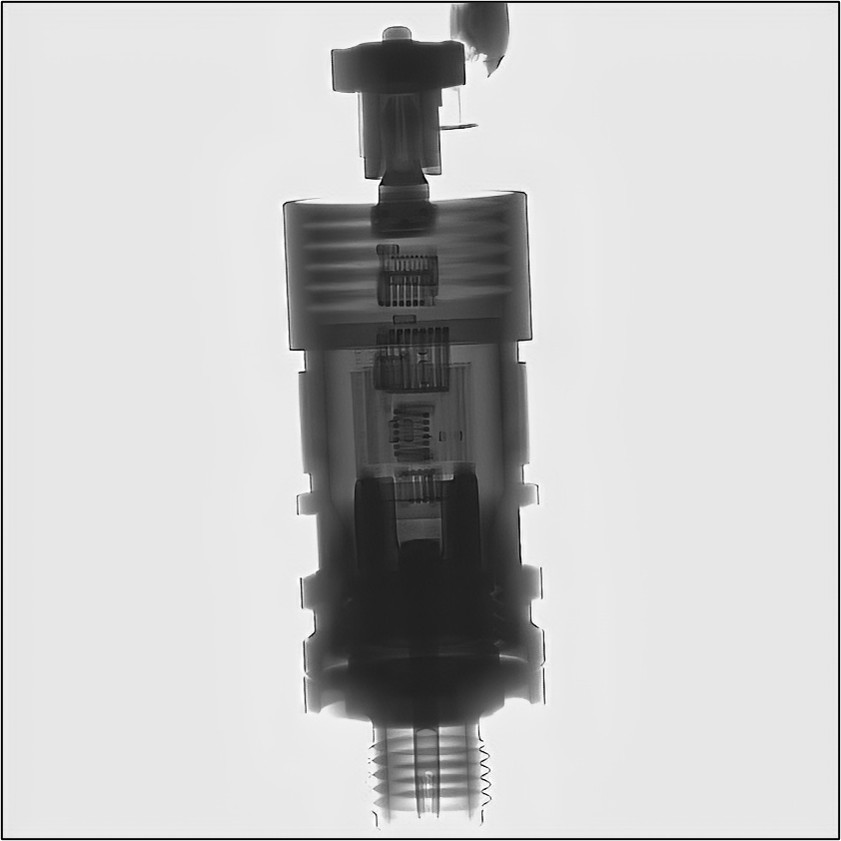

Super Resolution X-Ray Inspection Image on inspecting internal of Antenna with our Hot Sales Model AX7900
Application Fields
Super Resolution X-Ray Inspection Image on inspecting internal of Antenna with our Hot Sales Model AX7900
Dimensions and Appearance
Super Resolution X-Ray Inspection Image on inspecting internal of Antenna with our Hot Sales Model AX7900
