Unicomp AX7900 90KV 2D X-ray Inspection for DC Cable Connector Quality Inspection
Unicomp AX7900 90KV 2D X-ray Inspection for DC Cable Connector Quality Inspection
Unicomp AX7900 90KV 2D X-ray Inspection for DC Cable Connector Quality Inspection
Unicomp AX7900 90KV 2D X-ray Inspection for DC Cable Connector Quality Inspection
Specifications
Supply Ability :
30 sets per month
Model Number :
AX7900
Frame Rates :
Max30fps
Price :
can negotiate
Type :
Electronic semiconductor
Certification :
CE, FDA
RAM :
16G
MOQ :
1Set
Delivery Time :
15 work days
Power consumption :
0.8KW
Payment Terms :
L/C,T/T
Brand Name :
UNICOMP
Pixel Matrix :
1536*1536[pixel]
Place of Origin :
China
CPU Model :
i7 6 generation
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Description
Unicomp AX7900 90KV 2D X-ray Inspection System
Advanced 2D X-ray inspection system specifically designed for DC cable connector quality inspection and comprehensive electronic component analysis.
System Overview
The AX7900 features a 90kV/5μm micro-focus X-ray tube and high-performance FPD detector in a multifunctional workstation design. With standard XY multi-axis motion and optional ±60° tilt capability, this system provides exceptional inspection flexibility. Independent Z-axis movement of both X-ray tube and FPD enables precise magnification and field of view adjustments.
Key Applications
  • LED, SMT, BGA, CSP, and Flip Chip Inspection
  • Semiconductor and Packaging Components
  • Battery Industry Quality Control
  • Electronic Components and Auto Parts
  • Photovoltaic Industry Applications
  • Aluminum Die Casting and Moulding Plastic
  • Ceramics and Special Industrial Applications
System Features
  • 90KV 5μm X-ray tube with FPD Detector
  • Multi-function workstation with X-Y multi-axis movement
  • Optional ±60° "Arc" motion capability
  • Comprehensive motion controls including X/Y table plus Z-axis tube/detector movement
  • Advanced DXI image processing system
  • X/Y programming for multiple image inspection routines
  • Maximum loading area: 420mm x 420mm
  • Maximum detection area: 380mm x 380mm
  • Up to 300X system magnification
  • BGA void/area auto-measurement with report generation
Technical Specifications
Parameter Specification
System Dimensions 1215(L) x 1325(W) x 1700(H) mm
System Weight 1240 kg
Power Requirements 220V±10% 50Hz/60Hz 4A
Power Consumption 0.8 kW
X-ray Tube Type Closed
Maximum Voltage 90 kV
Maximum Power 8 W
Spot Size 5 μm
Intensifier Type FPD
Monitor 24" HD
Geometric Magnification 52X
Maximum Loading Size 600mm x 520mm
Maximum Inspection Area 505mm x 440mm
X-ray Leakage <1 μSv/h
Inspection Images
Unicomp AX7900 90KV 2D X-ray Inspection for DC Cable Connector Quality Inspection
Application Fields
Unicomp AX7900 90KV 2D X-ray Inspection for DC Cable Connector Quality Inspection

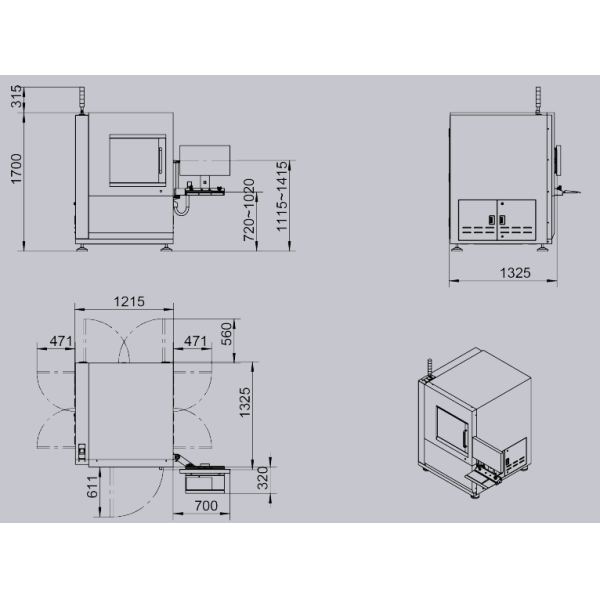

Dimensions and Appearance
Unicomp AX7900 90KV 2D X-ray Inspection for DC Cable Connector Quality Inspection
