Specifications
Brand Name :
HYH
Model Number :
LY-Ku-3D-I
Place of Origin :
Chengdu
MOQ :
1
Price :
Negotiable
Payment Terms :
D/P,T/T,Western Union
Supply Ability :
20set/month
Delivery Time :
30days
Scanning Range Pitch :
0°-40°
Operating Temperature :
-20 to 50 degrees Celsius
Antenna Rotation :
360 degrees
Power Consumption :
Less than 5 kW
Data Processing :
Real-time
Scanning Range :
Azimuth：0°-360°，Pitch：0°-40°
Transmit Power :
160w
Antenna Speed :
Maximum 90 °/s
Transmitter Power :
1-10 kW
Range :
Up To 100 Km
Scanning Range Azimuth :
360°
Target Radial Velocity :
0.8m/s-40m/s
Resolution :
1 m
Antenna Type :
Parabolic
Polarization :
Dual Polarization
Minimum Detection Range :
10 m
Operating Frequency Band :
X Band
Range Resolution :
1-10 m
Antenna Diameter :
1-5 m
Blind Range :
180m
Scan Mode :
Sector Scan
Operating Altitude :
0-10 km
Receiver Sensitivity :
-120 dBm
Pulse Width :
1-10 μs
Pulse Repetition Frequency :
100-1000 Hz
Description

Drone Detection Radar with 360° Mechanical Scan | 200 Target Capacity & IP67 Protection

Product Overview

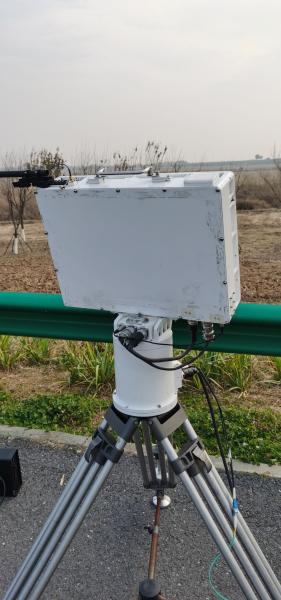

The LY-Ku-3D-I Two-Dimensional Phased Array Radar adopts a phased array system with TWS (Track While Scan) and TAS (Track And Scan) modes for target detection and tracking. TWS meets general wide-area surveillance requirements, while TAS enables high-data-rate continuous tracking of critical targets. It is designed to search, detect, and track low-altitude, slow-moving small drones (e.g., UAVs), measure target parameters, and provide data to other

Key Features

  1. Advanced System Design: Software-defined, reconfigurable architecture.

  2. Flexible Scanning: Customizable scanning zones with high time-resource efficiency.

  3. Dual Modes:

    • Single-array phased scanning + full-space mechanical scanning.

    • Four-array phased scanning for full-space coverage.

  4. Compact & Reliable: High integration, low cost, lightweight, and robust performance.

  5. High-Priority Tracking: Enhanced data rate for critical targets.

Technical Specifications

Category Parameter Details
Operating Frequency Ku-band
Detection Range Target Capacity 200 targets
Max Detection Distance ≥5 km (2D phased scan mode, RCS=0.01m², extendable)
Min Detection Distance ≤200 m
Altitude Coverage ≥1000 m (for targets with 2m² RCS)
Azimuth Range Phased scan: -45° to +45°; Mechanical scan: 0° to 360°
Elevation Range -10° to +50°
Detection Accuracy Distance (RMS) ≤20 m
Azimuth (RMS) ≤0.6°
Altitude (RMS) ≤0.9°
Detection Capability Distance Resolution 15 m
Azimuth Resolution ≤4°
Altitude Resolution ≤6°
Data Rate 6s (TWS normal mode), 2s (TWS small-target mode), 0.5s (TAS mode)
Detection Probability 0.8
False Alarm Rate 10⁻⁶
Track Initiation Time ≤3 frames
Data Processing Processing Delay ≤1s (from target detection to data output)
Operational Performance Power Supply AC (220V±10%, 50Hz±5%) or portable generator
Power Consumption ≤650 W
MTBF (Reliability) ≥1000 hours
MTTR (Maintainability) ≤30 minutes
BIT Fault Detection Rate ≥95%
Environmental Adaptability Operating Temperature -35℃ to +50℃ (outdoor equipment)
Storage Temperature -45℃ to +65℃
Humidity Resistance 98% RH (at 35℃ for outdoor equipment)
Protection Level IP-rated three-proof capabilities (waterproof, dustproof, corrosion-resistant)

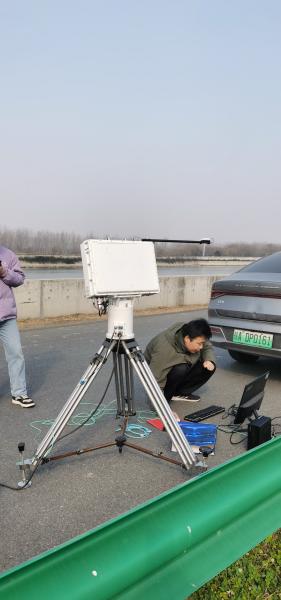

Mobility & Deployment Transport & Installation Compatible with standard vehicles, modular design for flexible assembly,
elevator/hoisting installation for rooftop deployment
