Specifications
Brand Name :
HYH
Model Number :
LY-Ku-3D-II
Place of Origin :
Chengdu
MOQ :
1
Price :
Negotiable
Payment Terms :
D/P,T/T,Western Union
Supply Ability :
20set/month
Delivery Time :
30days
Scanning Range Pitch :
0°-40°
Operating Temperature :
-20 to 50 degrees Celsius
Antenna Rotation :
360 degrees
Power Consumption :
Less than 5 kW
Data Processing :
Real-time
Scanning Range :
Azimuth：0°-360°，Pitch：0°-40°
Transmit Power :
160w
Antenna Speed :
Maximum 90 °/s
Transmitter Power :
1-10 kW
Range :
Up To 100 Km
Scanning Range Azimuth :
360°
Target Radial Velocity :
0.8m/s-40m/s
Resolution :
1 m
Antenna Type :
Parabolic
Polarization :
Dual Polarization
Minimum Detection Range :
10 m
Operating Frequency Band :
X Band
Range Resolution :
1-10 m
Antenna Diameter :
1-5 m
Blind Range :
180m
Scan Mode :
Sector Scan
Operating Altitude :
0-10 km
Receiver Sensitivity :
-120 dBm
Pulse Width :
1-10 μs
Pulse Repetition Frequency :
100-1000 Hz
Description

Anti-Drone Surveillance Radar | 7km Range for DJI Phantom 4 Detection

Product Overview

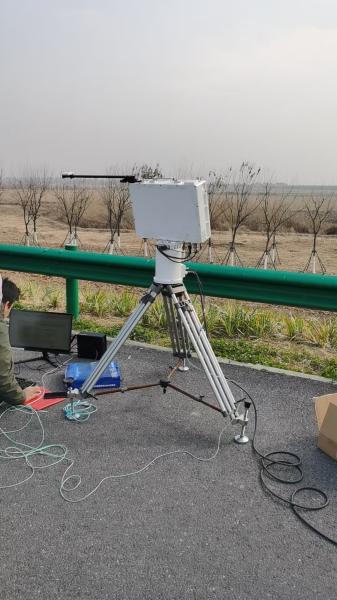

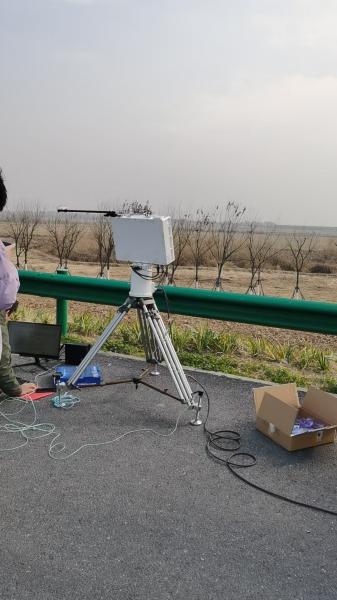

The LY-Ku-3D-II Digital Phased Array Radar employs a hybrid architecture combining phased array transmission and digital multi-beam reception. It is designed for low-altitude surveillance in complex environments, providing 24/7 detection and tracking of slow-moving small targets (e.g., drones). The radar delivers precise distance, azimuth, elevation, and velocity data, supporting airspace monitoring and security operations.

Key Features

  1. Hybrid Beamforming: Wide-beam transmission + digital beamforming reception.

  2. Compact & Robust: Lightweight, highly integrated, low-cost, and reliable.

  3. Advanced Signal Processing: Clutter suppression, adaptive waveforms, and bandwidth options.

  4. Dual Scanning Modes: Mechanical scanning + servo tracking for target detection, classification, and high-data-rate tracking.

  5. Mission Flexibility: Configurable for diverse operational scenarios.

Technical Specifications

Category Parameter Details
Operating Frequency Ku-band
Detection Range Small Target Mode ≥7 km (DJI Phantom 4 or equivalent RCS target)
Min Detection Distance ≤150 m
Altitude Coverage ≥1000 m (for DJI Phantom 4)
Azimuth Range 0° to 360°
Elevation Range 0° to 50°
Detection Accuracy Distance (RMS) ≤15 m
Azimuth (RMS) ≤0.5°
Altitude (RMS) ≤0.5°
Target Processing Capacity per Frame 200 tracks / 5000 points
Signal Processing Techniques Digital Beamforming, Pulse Compression, MTD, CFAR, Clutter Mapping
Data Rate 5s, 2.5s
Operational Performance Power Supply AC (220V±10%, 50Hz±5%) or portable generator
Power Consumption ≤650 W
Environmental Adaptability Operating Temperature -35℃ to +50℃ (outdoor equipment)
Storage Temperature -45℃ to +65℃
Humidity Resistance 98% RH (at 35℃ for outdoor equipment)
Protection Level IP-rated three-proof capabilities (waterproof, dustproof, corrosion-resistant)
Mobility & Deployment Transport & Installation Vehicle-mountable, modular design, rooftop deployment via elevator/crane

Why Choose LY-Ku-3D-II?

  • Precision: Sub-0.5° accuracy for azimuth and elevation.

  • Versatility: Hybrid scanning modes adapt to dynamic threats.

  • Durability: Operates in extreme temperatures (-35℃ to +50℃).

  • Cost-Effective: High performance at competitive pricing.
