Multi Function 2d 3d Phased Array Radar With TAS Mode 4km Range UAV Tracking
Multi Function 2d 3d Phased Array Radar With TAS Mode 4km Range UAV Tracking
Multi Function 2d 3d Phased Array Radar With TAS Mode 4km Range UAV Tracking
Multi Function 2d 3d Phased Array Radar With TAS Mode 4km Range UAV Tracking
Multi Function 2d 3d Phased Array Radar With TAS Mode 4km Range UAV Tracking
Multi Function 2d 3d Phased Array Radar With TAS Mode 4km Range UAV Tracking
Multi Function 2d 3d Phased Array Radar With TAS Mode 4km Range UAV Tracking
Multi Function 2d 3d Phased Array Radar With TAS Mode 4km Range UAV Tracking
Multi Function 2d 3d Phased Array Radar With TAS Mode 4km Range UAV Tracking
Multi Function 2d 3d Phased Array Radar With TAS Mode 4km Range UAV Tracking
Specifications
Brand Name :
HYH
Model Number :
LY-X-3D-I
Place of Origin :
Chengdu
MOQ :
1
Price :
Negotiable
Payment Terms :
D/P,T/T,Western Union
Supply Ability :
20set/month
Delivery Time :
30days
Operating Altitude :
0-10 km
Scanning Mode :
Pulse Doppler
Scan Rate :
Up to 60 RPM
Resolution :
1 M
Detection Range :
Up to 100 km
Scanning Range Pitch :
0°-40°
Operating Frequency Band :
X Band
Antenna Type :
Parabolic
Frequency :
S-band
Blind Range :
180m
Antenna Speed :
<6s
Data Update Rate :
1-10 seconds
Scanning Range :
Azimuth：0°-360°，Pitch：0°-40°
Transmit Power :
320w
Power Supply :
AC 220V, 50Hz
Minimum Detection Range :
10 m
Range Resolution :
1-10 m
Antenna Diameter :
1-5 m
Scan Mode :
Sector Scan
Antenna Rotation :
360 Degrees
Scanning Range Azimuth :
360°
Receiver Sensitivity :
-120 dBm
Pulse Width :
1-10 μs
Transmitter Power :
1-10 kW
Pulse Repetition Frequency :
100-1000 Hz
Range :
Up To 100 Km
Description

Drone Detection Radar with TAS Mode | 4km UAV Tracking & ≤200W Power

Product Overview

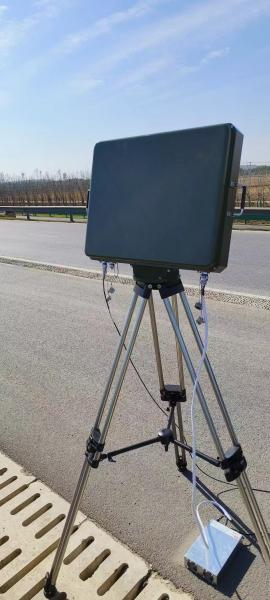

The LY-Ku-3D-V Multi-Function Phased Array Radar combines 2D phased scanning and azimuth mechanical scanning for comprehensive surveillance. It supports two operational modes: full-area early warning and focused zone monitoring, enabling target detection (TWS) and high-data-rate tracking (TAS). Designed for ground personnel, vehicles, low-altitude drones, and helicopters, it provides real-time target classification and guidance data for integrated defense systems.

Key Features

  • Dual Surveillance Modes: Full-area scanning + focused zone tracking.

  • Multi-Target Classification: Detects and categorizes diverse threats (human, vehicles, drones).

  • Customizable Scanning: Optimizes time and resource efficiency.

  • Lightweight & Efficient: Low power consumption (≤200W), high integration, and compact design (≤35kg).

  • High-Priority Tracking: Adjustable TAS data rate (0.5–3s) for critical targets.

Technical Specifications

Category Parameter Details
Operating Frequency Ku-band
Detection Range Max Detection Distance - Human (RCS=0.5m²): ≥5km (mechanical scan), ≥6km (phased scan)
- Medium Vehicle: ≥10km
- UAV (RCS=0.03m²): ≥3km (mechanical scan), ≥4km (phased scan)
Min Detection Distance ≤100m
Altitude Coverage ≥500m
Scanning Range Azimuth Phased scan: ±45°; Mechanical scan: 0°–360°
Elevation 0°–45°
Measurement Accuracy Distance (RMS) ≤10m
Azimuth (RMS) ≤0.5°
Elevation (RMS) ≤1°
Tracking Data Rate TWS Mode 3s (mechanical/phased scan)
TAS Mode Adjustable (0.5–3s)
Environmental Adaptability Operating Temperature -40℃ to +50℃
Storage Temperature -50℃ to +65℃
Power Supply Input AC 220V±10%, 50Hz±5% (compatible with portable generators)
Power Consumption ≤200W
Weight Total System ≤35kg (includes antenna, servo, UPS, processing unit, and accessories)

Why Choose LY-Ku-3D-V?

  • Versatility: Detects ground and aerial targets with precision.

  • Energy Efficiency: Ultra-low power consumption for extended operations.

  • Rapid Deployment: Lightweight design allows quick setup in diverse environments.

  • Adaptive Tracking: Customizable TAS mode for critical threat prioritization.

Applications

  • Military & Border Security: Monitor personnel, vehicles, and UAVs in real-time.

  • Critical Infrastructure Protection: Secure power plants, airports, and urban areas.

  • Disaster Response: Track movement in complex terrains during emergencies.
