Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation
Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation
Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation
Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation
Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation
Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation
Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation
Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation
Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation
Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation
Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation
Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation
Specifications
Brand Name :
HYH
Model Number :
LY-X-3D-I
Place of Origin :
Chengdu
MOQ :
1
Price :
Negotiable
Payment Terms :
D/P,T/T,Western Union
Supply Ability :
20set/month
Delivery Time :
30days
Operating Altitude :
0-10 km
Scanning Mode :
Pulse Doppler
Scan Rate :
Up to 60 RPM
Resolution :
1 M
Detection Range :
Up to 100 km
Scanning Range Pitch :
0°-40°
Operating Frequency Band :
X Band
Antenna Type :
Parabolic
Frequency :
S-band
Blind Range :
180m
Antenna Speed :
<6s
Data Update Rate :
1-10 seconds
Scanning Range :
Azimuth：0°-360°，Pitch：0°-40°
Transmit Power :
320w
Power Supply :
AC 220V, 50Hz
Minimum Detection Range :
10 m
Range Resolution :
1-10 m
Antenna Diameter :
1-5 m
Scan Mode :
Sector Scan
Antenna Rotation :
360 Degrees
Scanning Range Azimuth :
360°
Receiver Sensitivity :
-120 dBm
Pulse Width :
1-10 μs
Transmitter Power :
1-10 kW
Pulse Repetition Frequency :
100-1000 Hz
Range :
Up To 100 Km
Description

Digital Phased Array Radar with Beidou/GPS | 6km UAV Detection & All-Weather Operation

Product Overview

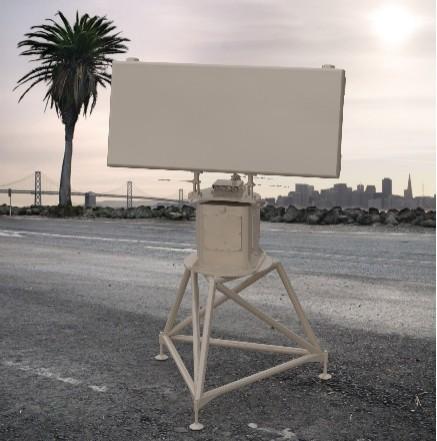

The LY-X-3D-I is a fully solid-state, coherent, active digital phased array radar designed for low-altitude surveillance, including detection and tracking of general aviation aircraft, drones, and other slow-moving small targets. It provides real-time distance, azimuth, altitude, and velocity data, generating a 3D operational picture for airspace security and interception systems. Featuring automated target recognition and high reliability, it ensures effective monitoring of non-cooperative and high-threat targets in critical areas.

Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation

Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation

Key Features

  1. Superior Low-Altitude Surveillance: Optimized for slow-moving, small targets.

  2. Advanced Technology: Flexible operation modes with altitude measurement capability.

  3. Compact & Reliable: Highly integrated, cost-effective, and durable design.

  4. High Precision: Sub-0.5° accuracy in altitude measurement.

  5. Adaptability: Robust performance in diverse environments.

Technical Specifications

Category Parameter Details
Operating Frequency X-band
Detection Range Max Detection (Small Targets) ≥6 km (RCS=0.01m², extendable)
Max Detection (General Mode) ≥25 km (RCS=2m²)
Min Detection Distance ≤300 m
Altitude Coverage ≥3500 m (for 2m² targets)
Azimuth Range 0° to 360°
Elevation Range 0° to 45°
Detection Accuracy Distance (RMS) ≤30 m
Azimuth (RMS) ≤0.4°
Altitude (RMS) ≤0.5°
Resolution Distance ≤50 m
Azimuth ≤2.5°
Altitude ≤4°
Data Rate 5s, 10s
Detection Probability 0.8
False Alarm Rate 10⁻⁶
Operational Performance Power Supply AC (220V±10%, 50Hz±5%) or generator
Power Consumption ≤1000 W
Reliability MTBF ≥1000 hours
MTTR ≤30 minutes
BIT Fault Detection Rate ≥95%
Environmental Adaptability Operating Temperature -30℃ to +50℃ (outdoor) / -10℃ to +40℃ (indoor)
Storage Temperature -45℃ to +65℃
Humidity Resistance 98% RH (at 35℃ for outdoor)
Wind Resistance Operational at 25 m/s
Positioning System Navigation & Timing Dual-mode Beidou/GPS system (positioning accuracy ≤10m, heading ≤0.2°)

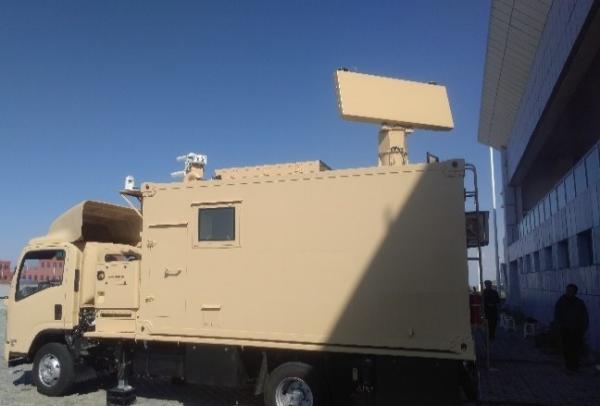

Mobility Deployment Vehicle-mounted, rooftop installation via elevator/crane, modular design

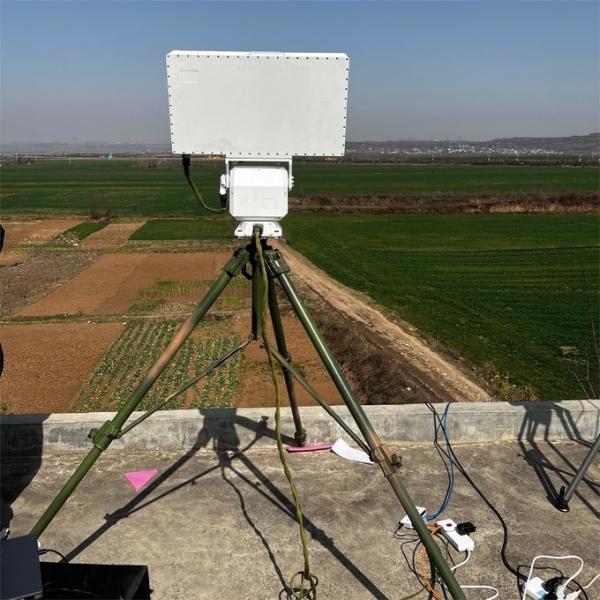

Performance Validation

Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation

  • Air Traffic Surveillance: Capable of tracking flights within 6 km, as demonstrated in Figure 2.

  • Test Results: Continuous tracking of UAVs up to 11 km with precise distance, azimuth, and altitude measurements.

Certifications & Applications

  • Compliance: Meets international standards (CE, FCC).

  • Use Cases: Airspace security, drone defense, border surveillance, and critical infrastructure protection.

  • Digital Anti Drone Radar Long Range Surveillance Radar 6km Range All Weather Operation

Why Choose LY-X-3D-I?

  • Precision: 0.5° altitude accuracy and dual-mode navigation.

  • Versatility: Adapts to extreme environments (-45℃ to +65℃ storage).

  • Scalability: Modular design for rapid deployment.
