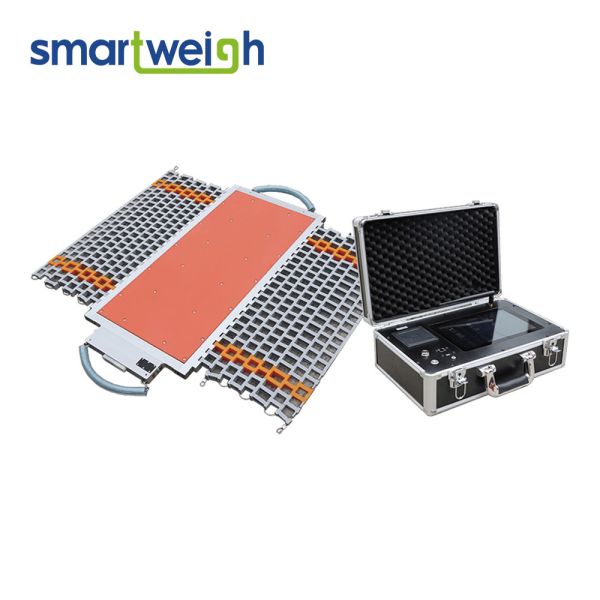

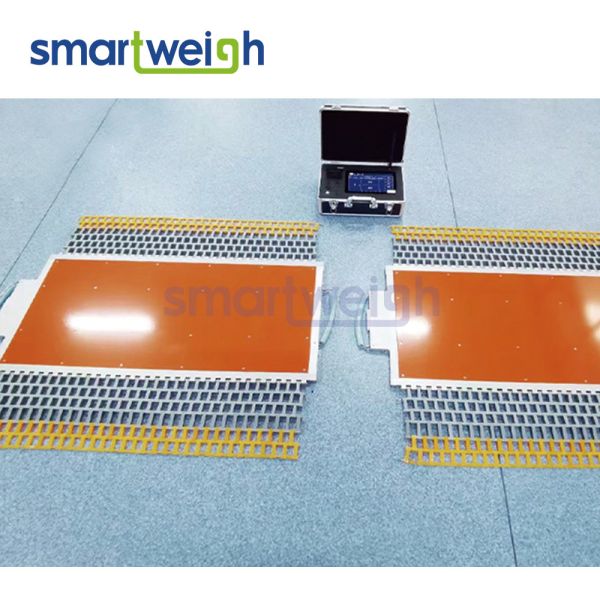

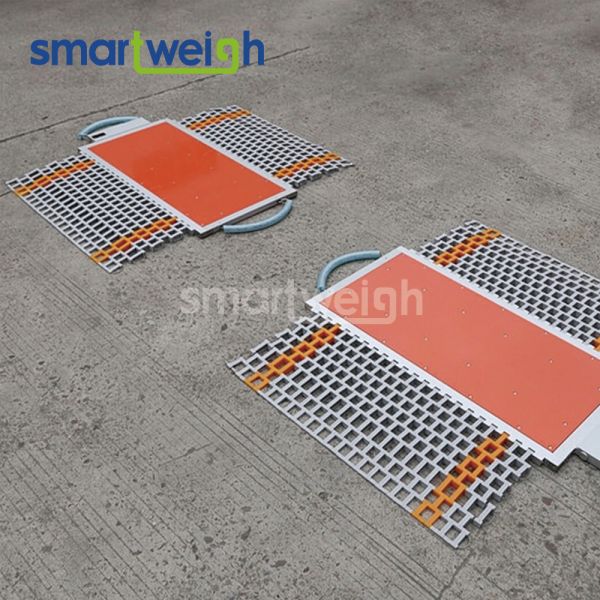

Accurate H Series IP66 Portable Truck Scale 20 Tons Capacity Vehicle Wheel Scales
Accurate H Series IP66 Portable Truck Scale 20 Tons Capacity Vehicle Wheel Scales
Accurate H Series IP66 Portable Truck Scale 20 Tons Capacity Vehicle Wheel Scales
Accurate H Series IP66 Portable Truck Scale 20 Tons Capacity Vehicle Wheel Scales
Accurate H Series IP66 Portable Truck Scale 20 Tons Capacity Vehicle Wheel Scales
Accurate H Series IP66 Portable Truck Scale 20 Tons Capacity Vehicle Wheel Scales
Specifications
Brand Name :
SMARTWEIGH
Place of Origin :
China
Model Number :
PTSH8001
Certification :
ISO/CE/SGS
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Foam and Carton
Delivery Time :
3-8 weeks
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
2000 Sets/Month
Type :
Portable Truck Scales
Size :
800mm*350mm*23mm
Rate load :
20T/Customized
Protection Class :
IP66
Safety overload range :
120%
Customization :
Avaliable
Description

Portable Axle Scale (H Series) Wireless Dynamic Weighing

Accurate H Series IP66 Portable Truck Scale 20 Tons Capacity Vehicle Wheel Scales

  • Designed for highway authorities to effectively detect overloading and ensure compliance, this system also serves as a reliable solution for static weighing in industrial environments like factories, mines, ports, and construction sites. It is the trusted solution for handling low-value bulk materials.

Technical Specifications


Rate load
t
20
Sensitivity
mV/V
0.5±0.2
Total error
%FS
±0.2
Zero balance
%FS
±1
TC0
%F.S/10℃
±0.1
TC Span
%F.S/10℃
±0.1
Input Resistance
Ω
3500±50
Output Resistance
Ω
3500±10
Insulation Resistance
MΩ
5000MΩ
Compensated Temp Range
℃
40
Operating Temp Range
℃
40
Safe Load
%F.S
120
Lateral Load Limit
%F.S
150
Recommend Excitation
V DC
5 12
Maximum Excitation
V DC
15
Protection Class
IP66

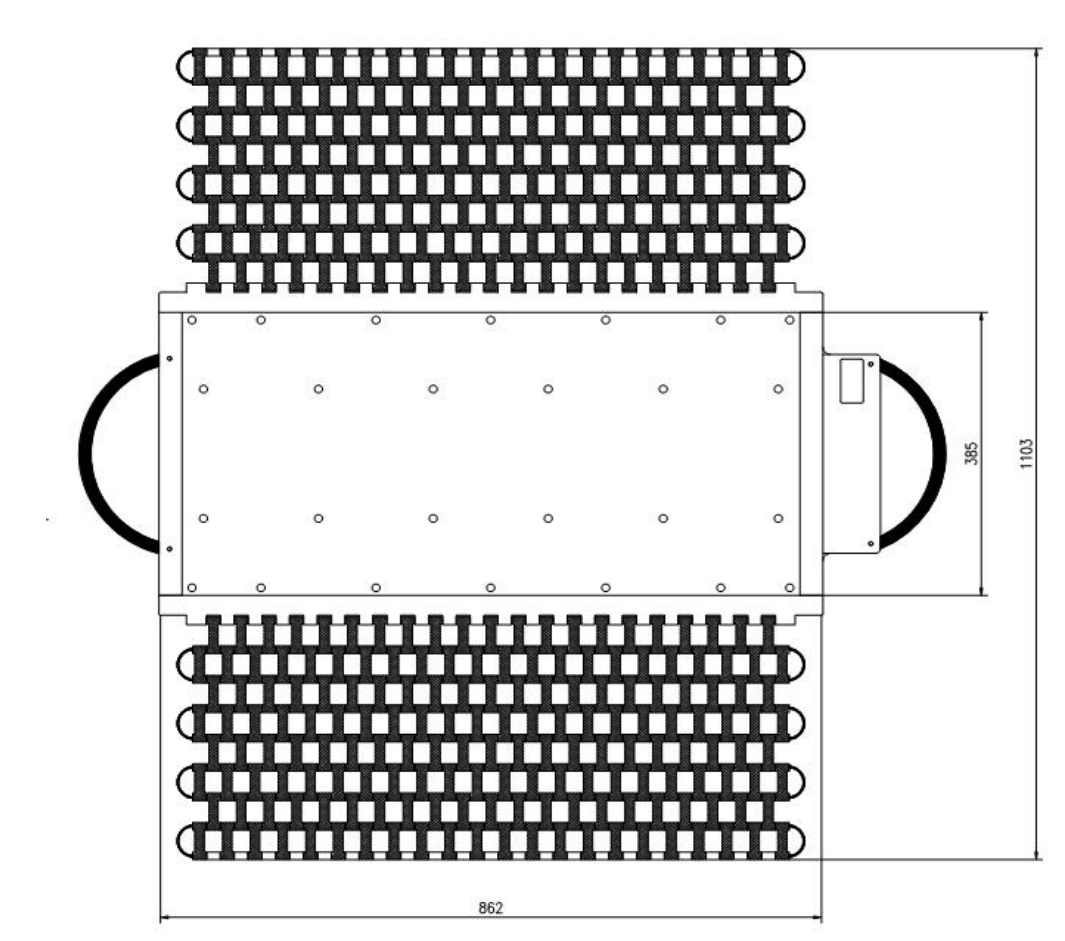

Product Size Illustration


Accurate H Series IP66 Portable Truck Scale 20 Tons Capacity Vehicle Wheel Scales

Packaging & Delivery

Accurate H Series IP66 Portable Truck Scale 20 Tons Capacity Vehicle Wheel Scales

Package Size(mm)
1080*620*120
Package Gross Weight
33kg/one pad


FAQ

1. How to place an order for products?
Let us know your requirement or application, we will give you a quotation in 24 hours. Then we will send the PI after you confirm the order.


2. Do you have any minimum order quantity limit for load cell?
Generally speaking, 1 piece for sample checking is available. But the sample price is high. In the mass production, unit price depends on the rough idea of Qty., the more the better.


3. What areas can your products be applied to?
Our products are rich in variety and can be used in petrochemical, metallurgical, chemical, port, building material, breeding, paper making, pharmaceutical, food, textile, and logistics industry.


4. Where is your company located?
Our company is located in Changzhou, Jiangsu Province, China, just an hour's high-speed rail ride from Shanghai.
