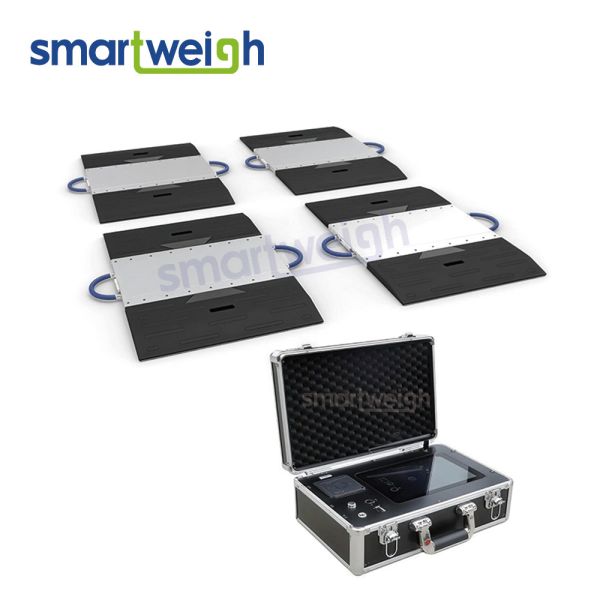

Digital Axle Scale Portable Truck Weight Scale Wireless Wheel Weighing Scales
Digital Axle Scale Portable Truck Weight Scale Wireless Wheel Weighing Scales
Digital Axle Scale Portable Truck Weight Scale Wireless Wheel Weighing Scales
Digital Axle Scale Portable Truck Weight Scale Wireless Wheel Weighing Scales
Digital Axle Scale Portable Truck Weight Scale Wireless Wheel Weighing Scales
Digital Axle Scale Portable Truck Weight Scale Wireless Wheel Weighing Scales
Digital Axle Scale Portable Truck Weight Scale Wireless Wheel Weighing Scales
Digital Axle Scale Portable Truck Weight Scale Wireless Wheel Weighing Scales
Specifications
Brand Name :
SMARTWEIGH
Model Number :
PTSK8001
Certification :
ISO/CE/SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
2000 Sets/Month
Delivery Time :
3-8 weeks
Packaging Details :
Foam and Carton
Type :
Portable Truck Scales
Model :
K-Series
Rate load :
20T
Allowed Capacity :
20T/pad 40T/axle
Safety overload range :
120%
Protection Class :
IP66
Applictaion :
Truck Weighing
Customization :
Avaliable
Description
Heavy-Duty Accurate Portable Truck Scale Digital 20 Ton Capacity Protable Axle Scales For Truck Weighing

This Portable Truck Scale is widely used by traffic management and road administration departments for monitoring vehicle overloading and over-transportation on highways, providing reliable data support for traffic regulation and road maintenance.
In addition, it is ideal for static weighing of bulk or low-value materials in factories, mines, docks, freight yards, and construction sites, ensuring accurate and efficient weight measurement in various industrial applications.


—— TECHNIQUE SPECIFICATION——

SMARTWEIGH INSTRUMENT CO.,LTD.



Pad Size(mm)
500×400×29
700×430×29
800×430×39
Ramp Size(mm)
500×300×29
700×330×29
800×350×39
Pad Packing Size(mm)
700×620×120
920×610×120
1080×610×120
Ramp Packing Size(mm)
540×380×90
730×380×90
830×400×100
Indicator Packing Size(mm)
500×350×240
500×350×240
500×350×240
Indicator Weight
9KG
9KG
9KG
Pad and Packaging Weight(one
piece)
20KG
32KG
44KG
Ramp Weight(two pieces)
10KG

18KG

24KG
Single Pad Capacity

10T

15T

25T
Allowed by Axle Load

20T

30T

50T
Safe Overload
125%

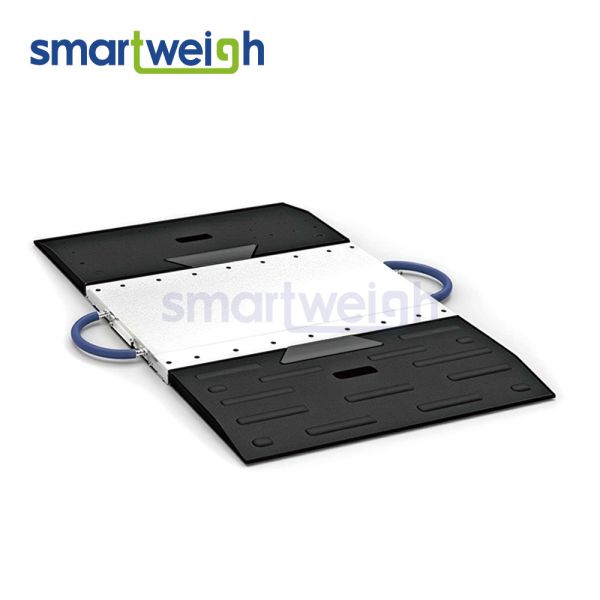

Weighing Pad Description

Overall integrated patch type,with moderate accuracy,moderate weight, moderate installation height, with rubber ramps


K-series Portable Truck Scale Technique Specification
Rate Load
t
5~20
Sensitivity
mV/V
(0.8~1.2) ±0.1
Total Error
%FS
±0.3~0.5
Zero Calance
%FS
±2
TC0
%F.S/10℃
±0.1
TC Span
%F.S/10℃
±0.1
Input Resistance
Ω
3150±100
Output Resistance
Ω
2800±10
Insulation Resistance
MΩ
≥5000MΩ
Compensated Temp Range
℃
-10~+50
Operating Temp Range
℃
-30~+70℃
Safe Load
%F.S
120
Lateral Load Limit
%F.S
150
Recommend Excitation
V DC
5~12
Maximum Excitation
V DC
15
Protection Class
IP66


—— PRODUCT SIZE ILLUSTRATION ——

SMARTWEIGH INSTRUMENT CO.,LTD.


Digital Axle Scale Portable Truck Weight Scale Wireless Wheel Weighing Scales

Available Pad Size(A×B×C)

500×300×30

700×430×30

800×430×40

Maximum Capacity(One Pad)

5T

15T

25T
Division Value
2,5,10,20,50kg
Comprehensive Accuracy (Static)
 ±0.3~0.5%FS

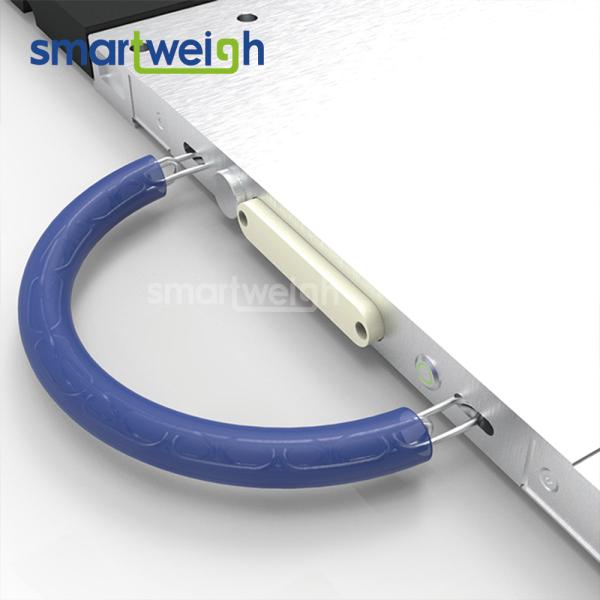

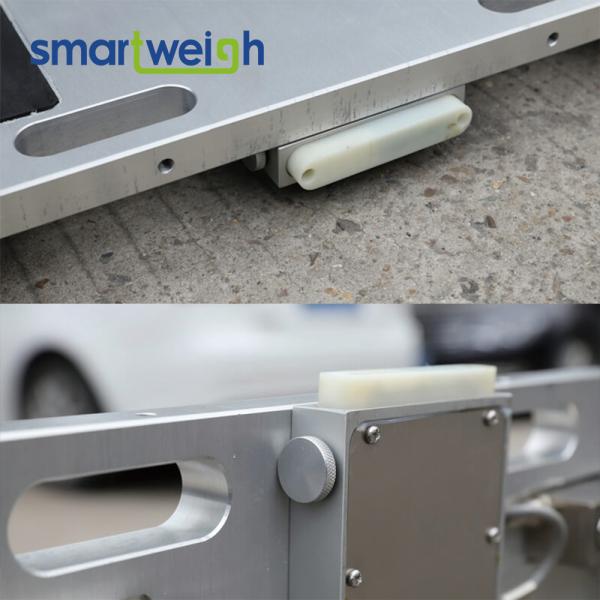

—— PRODUCT DETIALS ——

SMARTWEIGH INSTRUMENT CO.,LTD.


Digital Axle Scale Portable Truck Weight Scale Wireless Wheel Weighing Scales


255 Wireless Dynamic Indicator

Digital Axle Scale Portable Truck Weight Scale Wireless Wheel Weighing Scales

1. Features a 10.1-inch color touchscreen, offering high definition and user-friendly operation via touch or wireless mouse.

2. Runs on the Android OS for excellent compatibility and performance.

3. Dual-channel design with a high-precision integrated weighing platform ensures high detection accuracy and low failure rate.

4. Displays individual axle weights and total weight.

5. Data output via standard RS232/485 and USB2.0 interfaces.

6. Powered by a DC 10.8V lithium battery.

7. Built-in high-speed thermal printer for details like license plate number, total weight, load limit, time, and date.


—— PACKAGEING AND DELIVERY ——

SMARTWEIGH INSTRUMENT CO.,LTD.


Digital Axle Scale Portable Truck Weight Scale Wireless Wheel Weighing Scales


Delivery:We support professional packaging and worldwide delivery, including leading international carriers like DHL, FedEx, and UPS.
