Heavy Duty Portable Truck Scales 30 Tons Capacity Wireless Portable Truck Axle Scales
Heavy Duty Portable Truck Scales 30 Tons Capacity Wireless Portable Truck Axle Scales
Heavy Duty Portable Truck Scales 30 Tons Capacity Wireless Portable Truck Axle Scales
Heavy Duty Portable Truck Scales 30 Tons Capacity Wireless Portable Truck Axle Scales
Heavy Duty Portable Truck Scales 30 Tons Capacity Wireless Portable Truck Axle Scales
Heavy Duty Portable Truck Scales 30 Tons Capacity Wireless Portable Truck Axle Scales
Specifications
Brand Name :
SMARTWEIGH
Model Number :
PTSS8001
Certification :
ISO/CE/SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
2000 Sets/Month
Delivery Time :
3-8 weeks
Packaging Details :
Foam and Carton
Type :
Portable Truck Scales
Model :
S-Series
Rate load :
20T/30T
Safety overload range :
125%
Protection Class :
IP66
Applictaion :
Truck Weighing
Static Accuracy :
0.1%~0.3%
Customization :
Avaliable
Description
High-precision L Series Portable Truck Scale Digital 20 Ton Capacity Protable Axle Scales For Truck Weighing

This Portable Truck Scale is widely used by traffic management and road administration departments for monitoring vehicle overloading and over-transportation on highways, providing reliable data support for traffic regulation and road maintenance.
In addition, it is ideal for static weighing of bulk or low-value materials in factories, mines, docks, freight yards, and construction sites, ensuring accurate and efficient weight measurement in various industrial applications.


—— TECHNIQUE SPECIFICATION——

SMARTWEIGH INSTRUMENT CO.,LTD.



Pad Size(mm)
500×400×45
720×450×45
900×500×45
Ramp Size(mm)
500×200×40
720×250×40
900×300×40
Pad Packing Size(mm)
700×620×120
920×610×120
1080×610×120
Ramp Packing Size(mm)
540×280×100
750×330×100
930×400×100
Indicator Packing Size(mm)
500×350×240
500×350×240
500×350×240
Indicator Weight
9KG
9KG
9KG
Pad and Packaging Weight(one
piece)
25KG
41KG
47KG
Ramp Weight(two pieces)
8KG

17KG

27KG
Single Pad Capacity

10T

20T

25T
Allowed by Axle Load

20T

40T

50T
Safe Overload
125%
Weighing Pad Description
Spoken type sensor assembly type, slightly higher accuracy, self-heavy weight, slightly higher installation height, with
rubber ramps.


L-series Portable Truck Scale Technique Specification
Rate Load
t
1~30
Sensitivity
mV/V
(1.5~2.0) ±0.1
Total Error
%FS
±0.05~0.1
Zero Calance
%FS
±2
TC0
%F.S/10℃
±0.1
TC Span
%F.S/10℃
±0.1
Input Resistance
Ω
350~550
Output Resistance
Ω
330~500
Insulation Resistance
MΩ
≥5000MΩ
Compensated Temp Range
℃
-10~+50℃
Operating Temp Range
℃
-30~+70℃
Safe Load
%F.S
120
Lateral Load Limit
%F.S
150
Recommend Excitation
V DC
5~12
Maximum Excitation
V DC
15
Protection Class
IP66

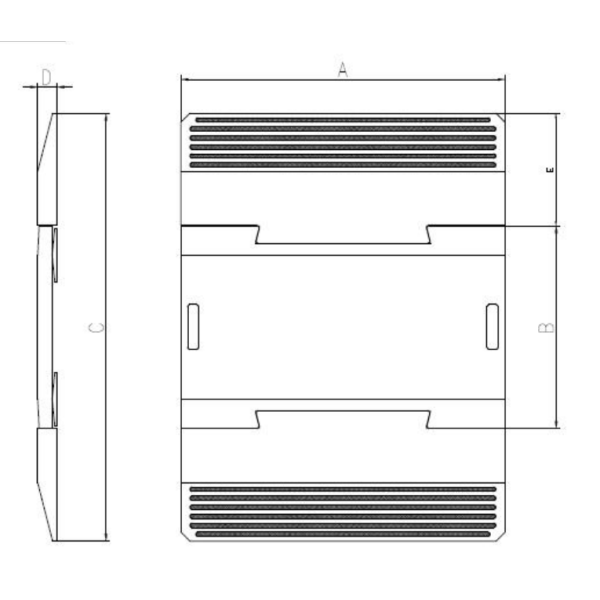

—— PRODUCT SIZE ILLUSTRATION ——

SMARTWEIGH INSTRUMENT CO.,LTD.


Heavy Duty Portable Truck Scales 30 Tons Capacity Wireless Portable Truck Axle Scales

Available Pad Size(A×B×C)

A

B

C

D

E

Maximum Capacity(One Pad)







1~5t
500
400
778
39

190
5~30t
720
450
950
39
250
10~40t
90
500
1000
39
250

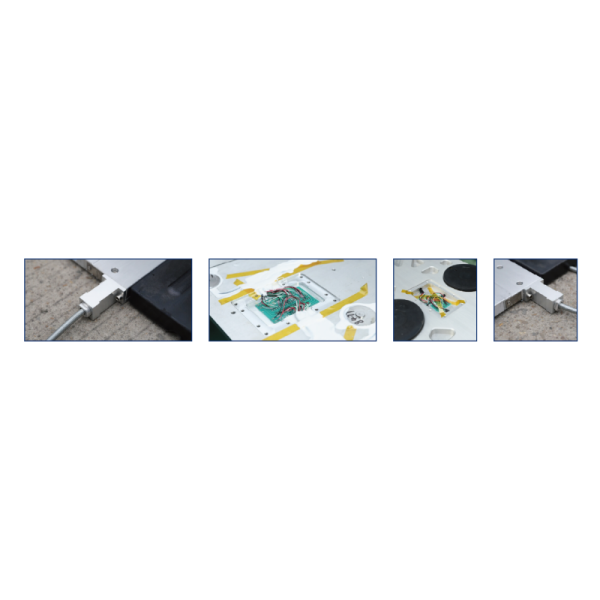

—— PRODUCT DETIALS ——

SMARTWEIGH INSTRUMENT CO.,LTD.


Heavy Duty Portable Truck Scales 30 Tons Capacity Wireless Portable Truck Axle Scales


255 Wireless Dynamic Indicator

Heavy Duty Portable Truck Scales 30 Tons Capacity Wireless Portable Truck Axle Scales

1. Features a 10.1-inch color touchscreen, offering high definition and user-friendly operation via touch or wireless mouse.

2. Runs on the Android OS for excellent compatibility and performance.

3. Dual-channel design with a high-precision integrated weighing platform ensures high detection accuracy and low failure rate.

4. Displays individual axle weights and total weight.

5. Data output via standard RS232/485 and USB2.0 interfaces.

6. Powered by a DC 10.8V lithium battery.

7. Built-in high-speed thermal printer for details like license plate number, total weight, load limit, time, and date.


—— PACKAGEING AND DELIVERY ——

SMARTWEIGH INSTRUMENT CO.,LTD.


Heavy Duty Portable Truck Scales 30 Tons Capacity Wireless Portable Truck Axle Scales


Delivery:We support professional packaging and worldwide delivery, including leading international carriers like DHL, FedEx, and UPS.
