Mobile Axle Weighing Scale Static Portable Wheel Scales For Fleet Management Loading Control
Mobile Axle Weighing Scale Static Portable Wheel Scales For Fleet Management Loading Control
Mobile Axle Weighing Scale Static Portable Wheel Scales For Fleet Management Loading Control
Mobile Axle Weighing Scale Static Portable Wheel Scales For Fleet Management Loading Control
Specifications
Brand Name :
SMARTWEIGH
Model Number :
PTSL8005
Certification :
ISO/CE/SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
2000 Sets/Month
Delivery Time :
3-8 weeks
Packaging Details :
Foam and Carton
Type :
Portable Axle Scales
Model :
L-Series
Safety overload range :
120%
Protection Class :
IP66
Applictaion :
Truck Weighing
Static Accuracy :
±0.3%
Temperature Compensation Range :
-10~+50℃
Customization :
Avaliable
Description
Robust L Series Portable Truck Scale Wireless Digital Axle Scale Wheel Scales For Trucks Weight

This Portable Scale is designed for precise and reliable vehicle weighing. It is widely used by traffic management and road administration departments
to monitor vehicle overloading and transportation on highways, providing accurate data support for road safety and enforcement.Additionally, this digital
A portable axle scale is ideal for static weighing of bulk or low-value materials in factories, mines, docks, freight yards, and construction sites, ensuring stable,
efficient, and long-lasting performance in various industrial weighing applications.


—— TECHNIQUE SPECIFICATION——

SMARTWEIGH INSTRUMENT CO., LTD.



Portable Axle Weighing Scale Specification
Portable Axle Scale Size(mm)
500×400×45
720×450×45
900×500×45
Ramp Size(mm)
500×200×45
720×250×40
900×300×40
Pad Packing Size(mm)
700×620×120
920×610×120
1080×610×120
Ramp Packing Size(mm)
520×280×100
750×330×100
930×400×100
Indicator Packing Size(mm)
500×350×240
500×350×240
500×350×240
Indicator Weight
9KG
9KG
9KG
Pad and Packaging Weight(one piece)
25KG
41KG
47KG
Ramp Weight(two pieces)
8KG

17KG

27KG
Single Pad Capacity

10T

20T

25T
Allowed by Axle Load

20T

40T

50T
Safe Overload
125%
Protection Class
IP66

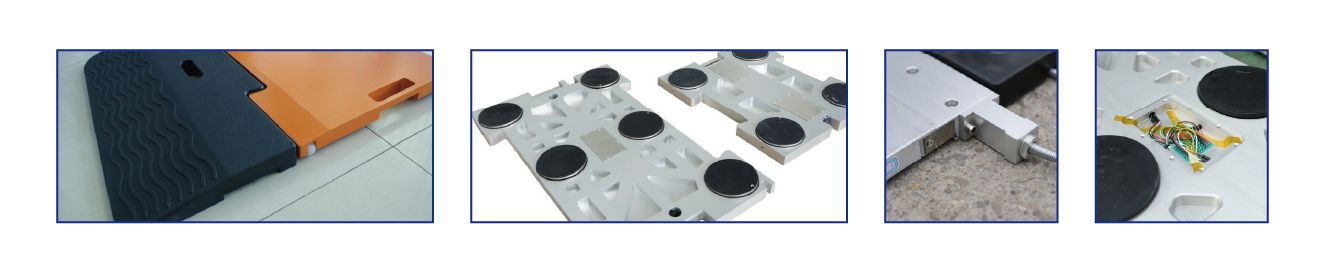

Weighing Pad Description
Spoken type sensor assembly type, slightly higher accuracy, self-heavy weight, slightly higher installation height, with rubber ramps.
Product Name
 Robust L Series Portable Truck Scale Wireless Digital Axle Scale Wheel Scales For Trucks Weight
Type
Wheel Scales


—— PRODUCT DETAILS ——

SMARTWEIGH INSTRUMENT CO., LTD.


Mobile Axle Weighing Scale Static Portable Wheel Scales For Fleet Management Loading Control

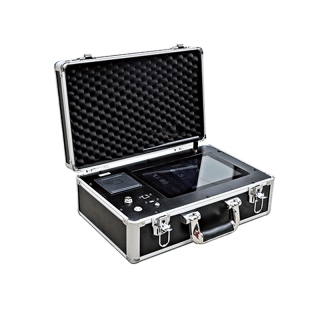

255 Wireless Dynamic Indicator

Mobile Axle Weighing Scale Static Portable Wheel Scales For Fleet Management Loading Control

1. Features a 10.1-inch color touchscreen, offering high definition and user-friendly operation via touch or wireless mouse.

2. Runs on the Android OS for excellent compatibility and performance.

3. Dual-channel design with a high-precision integrated weighing platform ensures high detection accuracy and low failure rate.

4. Displays individual axle weights and total weight.

5. Data output via standard RS232/485 and USB2.0 interfaces.

6. Powered by a DC 10.8V lithium battery.

7. Built-in high-speed thermal printer for details like license plate number, total weight, load limit, time, and date.

8. The ticket print format can be edited in various formats at the customer's request

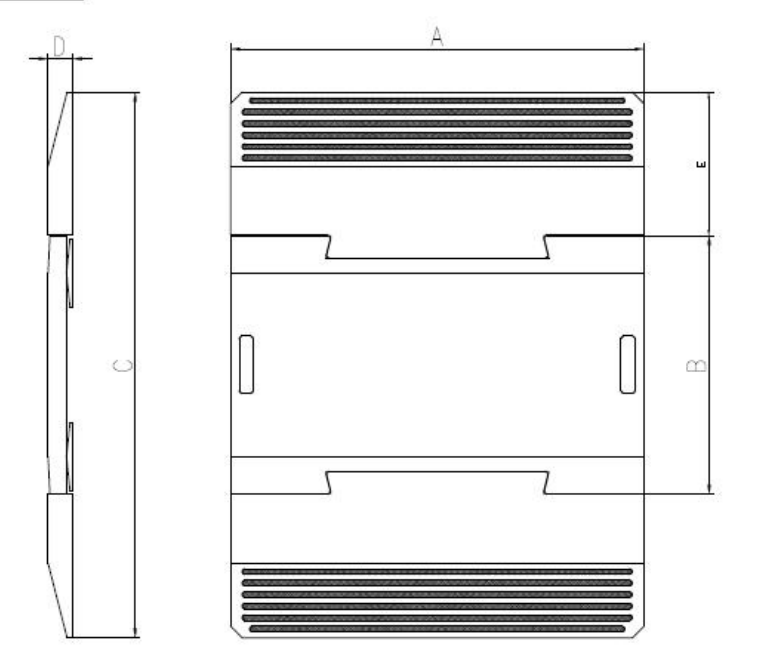

—— PRODUCT SIZE ILLUSTRATION ——

SMARTWEIGH INSTRUMENT CO., LTD.


Mobile Axle Weighing Scale Static Portable Wheel Scales For Fleet Management Loading Control

Portable Scale Size(A×B×C)

A

B

C

D

E

Maximum Capacity(One Pad)


1~5t
500
400
778
39

190
2~30t
720
450
950
39
250
5~25t
900
500
1000
39
250

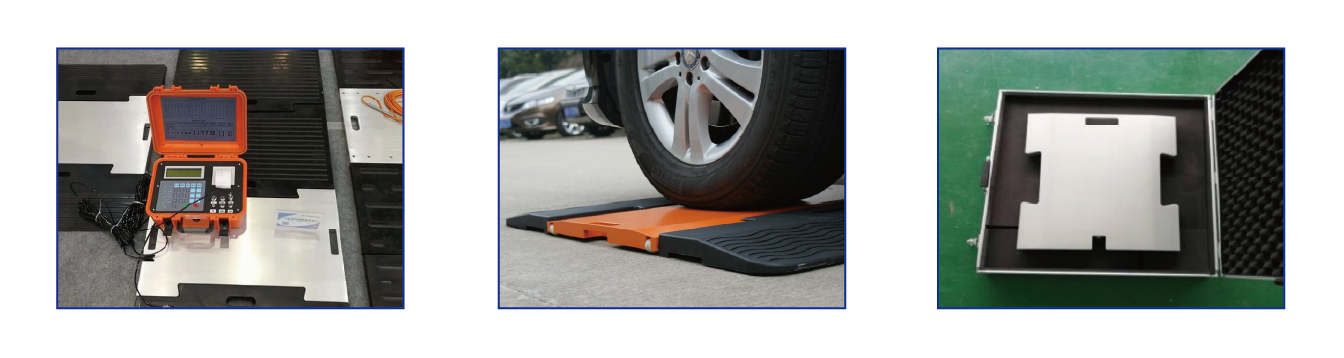

—— APPLICATION SHOWCASE ——

SMARTWEIGH INSTRUMENT CO., LTD.


Mobile Axle Weighing Scale Static Portable Wheel Scales For Fleet Management Loading Control



—— PACKAGEING AND DELIVERY ——

SMARTWEIGH INSTRUMENT CO., LTD.



Mobile Axle Weighing Scale Static Portable Wheel Scales For Fleet Management Loading Control

Delivery: We support professional packaging and worldwide delivery, including leading international carriers like DHL, FedEx, and UPS.
