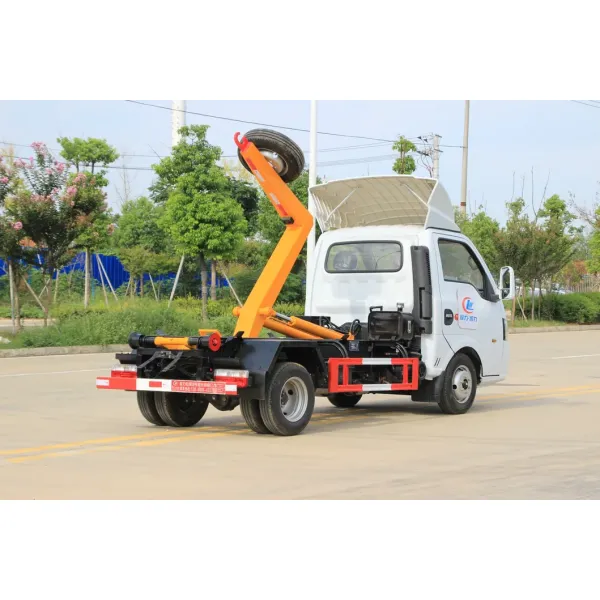

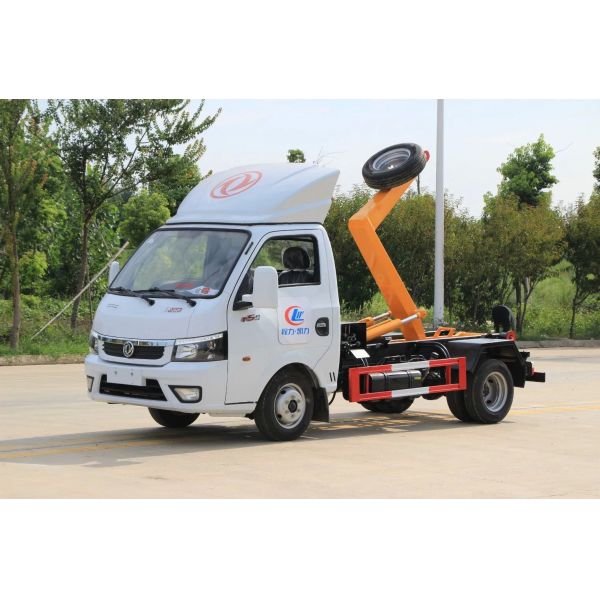

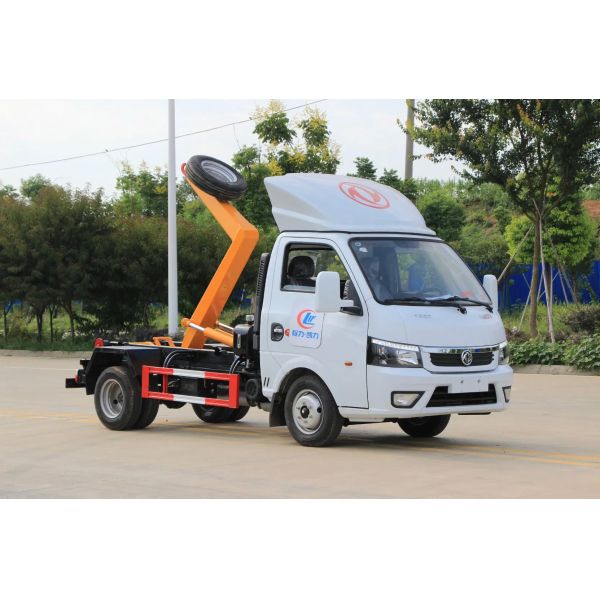

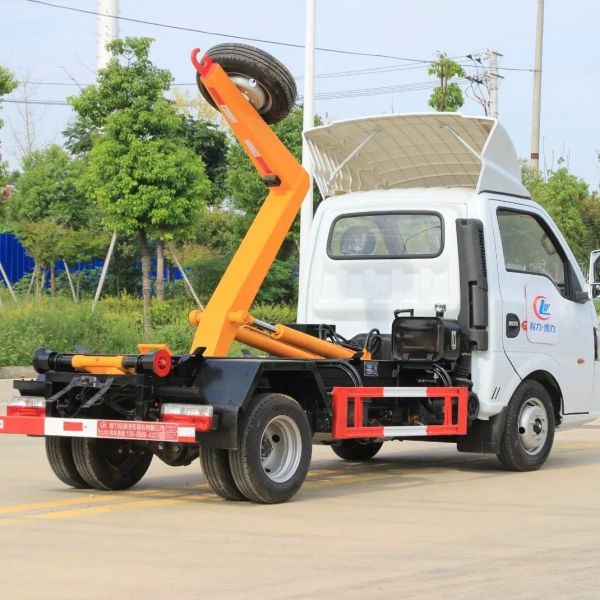

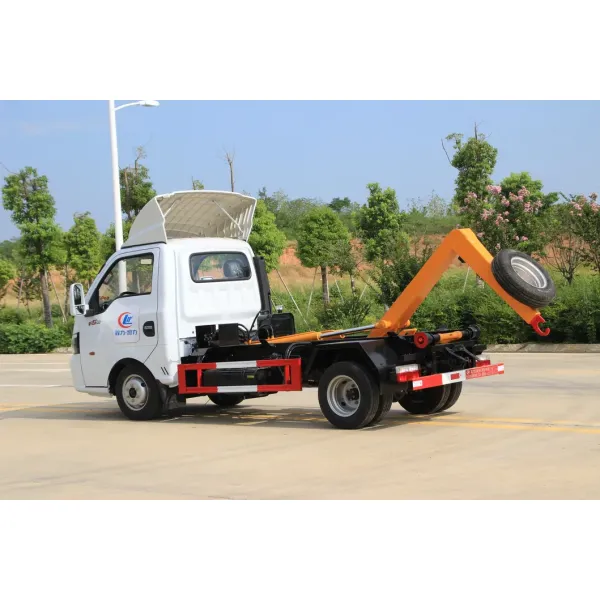

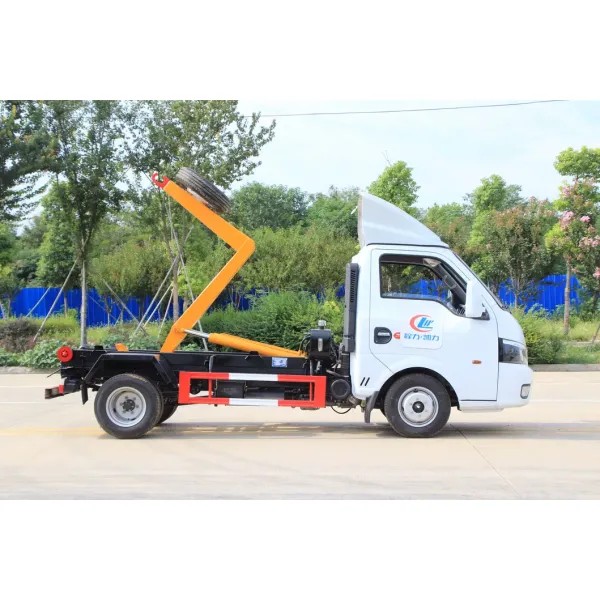

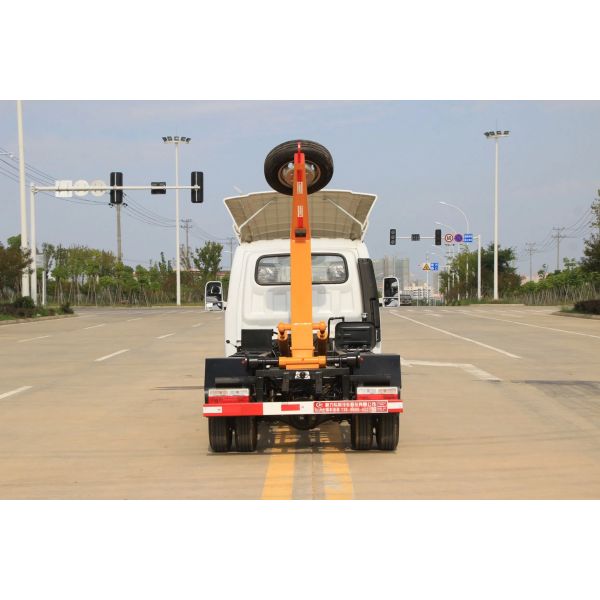

Hook Lift Garbage Truck 4X2 Mini Garbage Truck 4cbm
Hook Lift Garbage Truck 4X2 Mini Garbage Truck 4cbm
Hook Lift Garbage Truck 4X2 Mini Garbage Truck 4cbm
Hook Lift Garbage Truck 4X2 Mini Garbage Truck 4cbm
Hook Lift Garbage Truck 4X2 Mini Garbage Truck 4cbm
Hook Lift Garbage Truck 4X2 Mini Garbage Truck 4cbm
Hook Lift Garbage Truck 4X2 Mini Garbage Truck 4cbm
Hook Lift Garbage Truck 4X2 Mini Garbage Truck 4cbm
Hook Lift Garbage Truck 4X2 Mini Garbage Truck 4cbm
Hook Lift Garbage Truck 4X2 Mini Garbage Truck 4cbm
Hook Lift Garbage Truck 4X2 Mini Garbage Truck 4cbm
Hook Lift Garbage Truck 4X2 Mini Garbage Truck 4cbm
Specifications
Condition :
New
Tank Material :
Q235 Carbon Steel
Name :
Mini Garbage Truck
Drive Model :
4X2/6 Wheels/4*2
Control Model :
Hydraulic Control
MOQ :
1
Price :
15000-35000 per unit
Model NO. :
CLW5030GB
HS Code :
8705909090
Place of Origin :
CHINA
Brand Name :
CLW
Hydraulic System :
China Local Brand
Wheelbase(mm) :
2600mm; 2750mm; 2800mm; 2850mm
Production Capacity :
500 Unit/Month
Trademark :
CLW
Unloading Time :
40-50s
Garbage Box Material :
Carbon Steel
Transport Package :
Naked, RO-RO, Bulk, Container
Origin :
Suizhou, China
Bottom Thickness(mm) :
4.0 mm
Fuel :
Diesel
Usage :
Swing Arm Type
Brand :
Dongfeng
Loading Time :
50-60s
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Transmission Type :
Manual
Container Volume :
3.0cbm/4.0cbm
Drive Wheel :
4×2
Side Plate Thickness(mm) :
3.0 mm
Specification :
5500x1700x2500 mm
Payload :
2tons; 2.5tons; 3tons
Models :
Small
Emission Standard :
Euro 1/Euro 2/Euro 3/Euro 4/Euro 5/Optional
Fuel Type :
Diesel
Colour :
Blue/Red/Yellow/White/Green/Optional
Control Panel :
Close to Cabin
Certificate :
ISO CCC SGS BV
Volume :
3.0cbm/4.0cbm
Description
Product Description

1. Hook Lift Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area.

2. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook lift garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.

Specification
Condition New condition/Left hand drive/Right hand drive/4x2
Main details Wheelbase(mm) 2600;2800;2850
Front/Rear Axle loading(kg) 2000/4000
Rear axle ratio 5.375(6.142)
Wheel track (front/rear) (mm) 1440/1425
Front/Rear overhang(mm) 1110/1488
Min. Ground Clearance 190
Approach/Departure angle(°) 20.5/17 °
Max. driving speed(km/h) 100
Battery 12V*2 ; 100Ah*2
Alternator 14V 60A
Starter 12V 2.8kw
Clutch Dry single plate
Brakes Hydraulic brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 6 pcs with one spare tire
Specifications 6.50-16
Oil tank Fuel tank material Steel
Fuel tank capacity (L) 100
Transmission Manual type, 5 Forwards and 1 reverse
Cab It can accommodate three people. With Air Conditioner

Engine		 Brand Optional
Model Optional
Fuel type Diesel
Emission standard Euro 1/Euro 2/Euro 3/Euro 4/Euro 5
Upper & Control System
Garbage box Capacity(cbm) 3.0cbm/4.0cbm
Tank material Q235 carbon steel
Side plate thickness(mm) 3.0 mm
Bottom thickness(mm) 4.0 mm
pulley wheel quantity(pcs) 4 pcs
Control System Control model Hydraulic control
Control panel Close to Cabin
