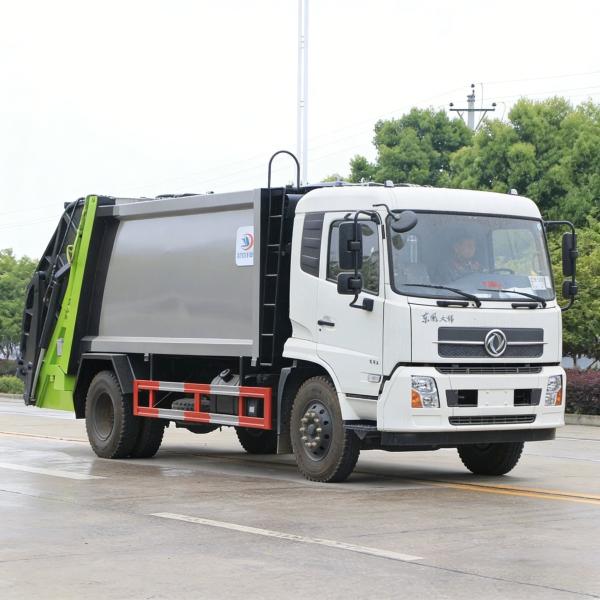

Dongfeng 15 Cbm 4*2 Self Compressing Garbage Compactor Truck Refuse Collection Truck
Dongfeng 15 Cbm 4*2 Self Compressing Garbage Compactor Truck Refuse Collection Truck
Dongfeng 15 Cbm 4*2 Self Compressing Garbage Compactor Truck Refuse Collection Truck
Dongfeng 15 Cbm 4*2 Self Compressing Garbage Compactor Truck Refuse Collection Truck
Dongfeng 15 Cbm 4*2 Self Compressing Garbage Compactor Truck Refuse Collection Truck
Dongfeng 15 Cbm 4*2 Self Compressing Garbage Compactor Truck Refuse Collection Truck
Dongfeng 15 Cbm 4*2 Self Compressing Garbage Compactor Truck Refuse Collection Truck
Dongfeng 15 Cbm 4*2 Self Compressing Garbage Compactor Truck Refuse Collection Truck
Dongfeng 15 Cbm 4*2 Self Compressing Garbage Compactor Truck Refuse Collection Truck
Dongfeng 15 Cbm 4*2 Self Compressing Garbage Compactor Truck Refuse Collection Truck
Dongfeng 15 Cbm 4*2 Self Compressing Garbage Compactor Truck Refuse Collection Truck
Dongfeng 15 Cbm 4*2 Self Compressing Garbage Compactor Truck Refuse Collection Truck
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Campacting Ratio :
0.6-0.8 Ton/Cbm
Drive Wheel :
4×2
Compression Cycle Time :
25-30 S
Garbage Box Capacity :
4ton, 6ton, 8ton, 10ton, 12ton, 15ton, 16ton, etc.
Name :
Garbage Truck
Volume :
10001-15000L
Transmission Type :
Manual
Brand :
Dongfeng
Condition :
New
Unload Garbage Time :
No More Than 40 S
Garbage Box Thickness :
Side 3mm, Bottom 4mm, Carbon Steel-Q345A
Compression Ratio :
3-4
Chassis Brand :
Dongfeng, Foton, Sinotruk, JAC, etc.
Origin :
Suizhou, China
Production Capacity :
500 Unit/Month
Usage :
Garbage Removal and Collection
Certification :
ISO9000, CCC, CE
MOQ :
1
Price :
15000-35000 per unit
HS Code :
8705909090
Emission Standard :
Euro 3
Garbage Box Volume :
5cbm, 8cbm, 10cbm, 12cbm, 15cbm, 18cbm, 20cbm, etc
Models :
Medium
Controlling Way :
Manual and Electrical Control
Trademark :
CLW
Transport Package :
Naked Pack with Wax
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Payload :
12 Ton
Specification :
8350*2490*3250 (mm)
Model NO. :
CLW5107CZB
Fuel :
Diesel
Hydraulic Pressure :
19.6/200 MPa/Kg
Description

Dongfeng 4*2 Self Compressing Garbage Compactor Removal Truck

Product Description
  • Making garbage collection simple: change the dirty appearance of the city and eliminate the secondary pollution;
  • High compression ratio and large loading capacity which is 2 times larger than usual garbage truck;
  • Easy Full Automatic Operation: electrical control system for loading and unloading operations.
  • One Person Operation: Reducing sanitation work, greatly improves the working efficiency.
  • Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.
  • Product Specification
Chassis Specification
Truck model CLW
Cab Dongfeng standard cab without A/C
Driving Type 4*2 Left hand driving
Max Speed (km/h) 90
Overall dimension(mm) 8325×2490×3250
GVW( kg) 15800
Mass in working order ( kg) 9800
Tank Capacity (L) 15000L
Wheelbase(mm) 4700
F/R track base (mm) 1910/1800
F/R overhang (mm) 1430/2420
Approach/Departure Angel 20/18(°)
Tire 10.00R20
Clutch Single-plate dry diaphragm spring clutch
Steering Hydraulic steering with power assistance
Gear box 6 speed
Bridge Front axle 6000
Rear axle 10000




Engine

 Model B190 33
Fuel Type Diesel fuel
Type Water-cooled four-stroke,, direct injection, turbocharged
Exhaust(ml) 5900
Max output power/rotate speed (hp /rpm ) 190
Braking system Full air
Eletric system 24v
Upperstructure Specification
Loading Circulation Time (s) 25-30
Rubbish Discharging Time(s) <=40
Oil Pressure(mpa/kg) 19.6/200
Compressed Proportion 1:3/1:2



Equipment

 Equipped with hermetic dustbin, hydraulic system and operating system
Automatic compress and uninstall, sewage can be collected by the dump tank.
Pressure is large, leakproofness is good, operation is convenient and security is dependable
Power of movement Hydraulic pump
Material of box Carbon steel
