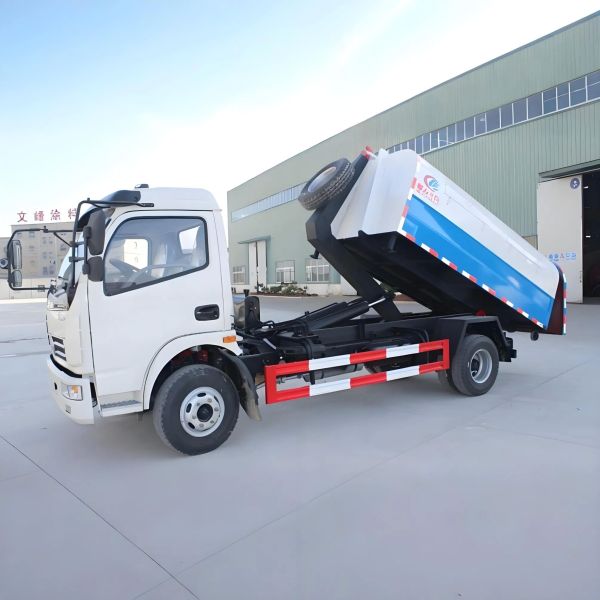

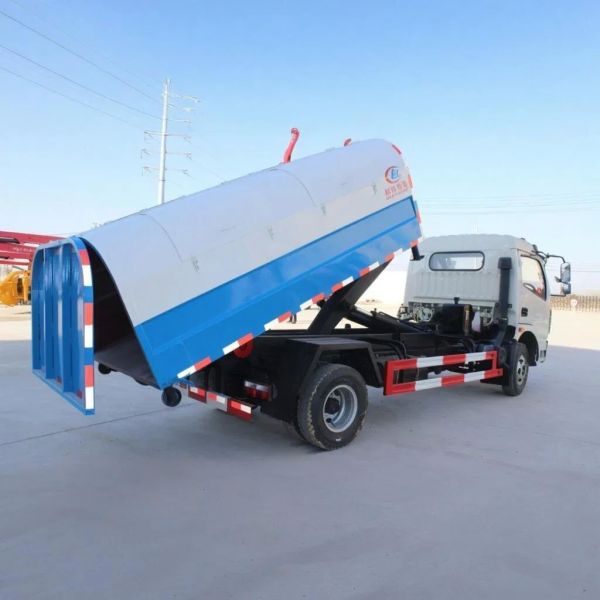

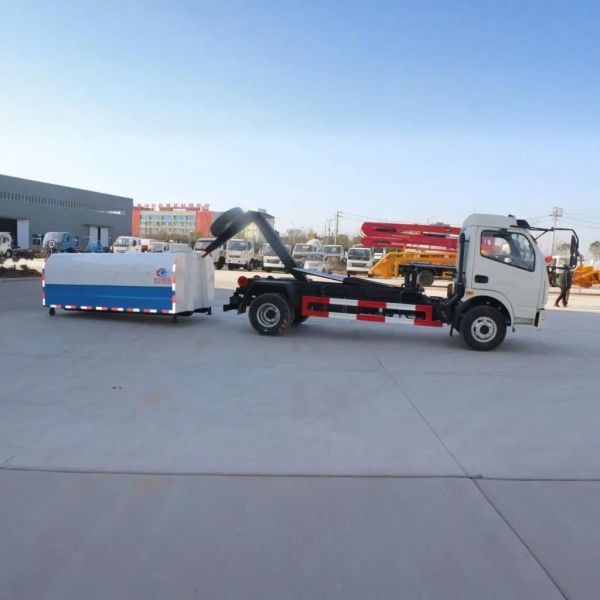

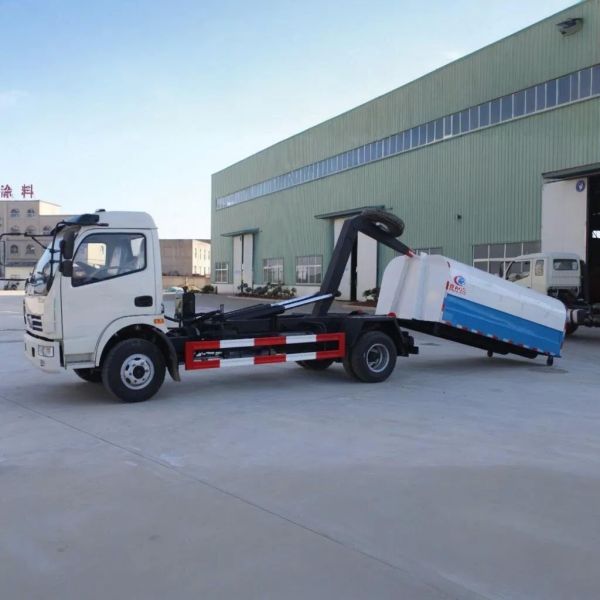

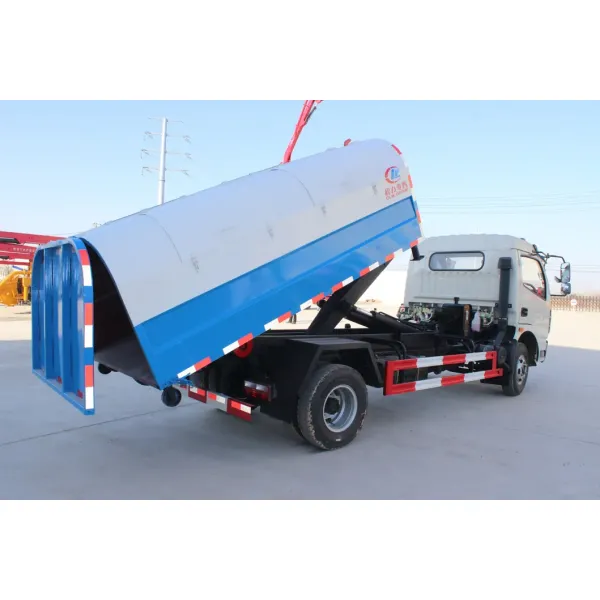

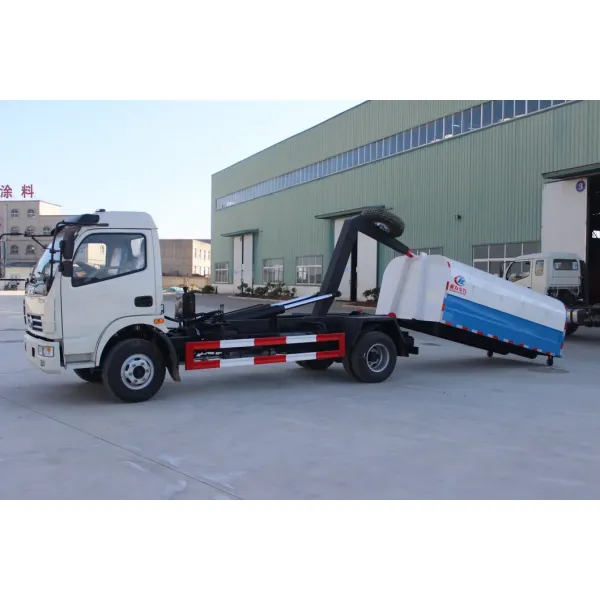

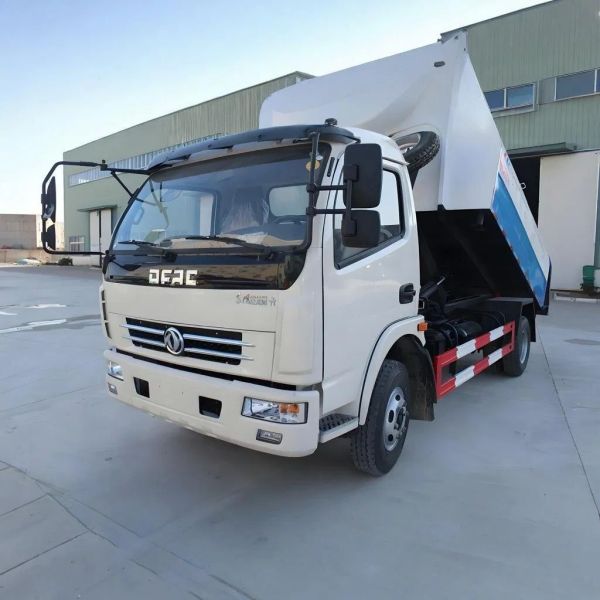

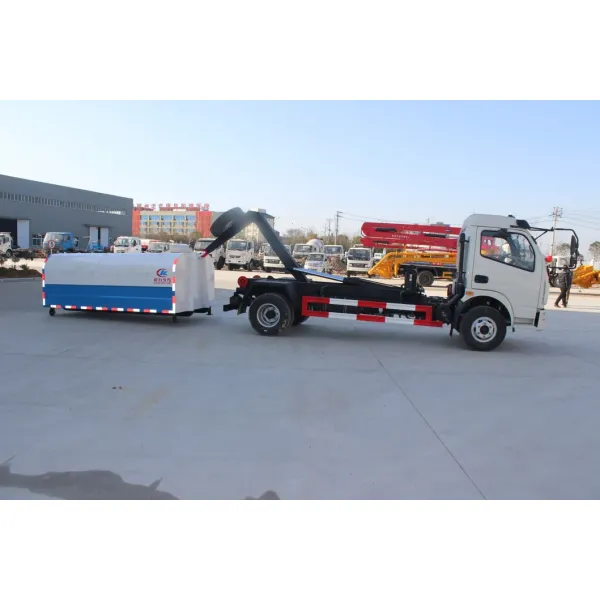

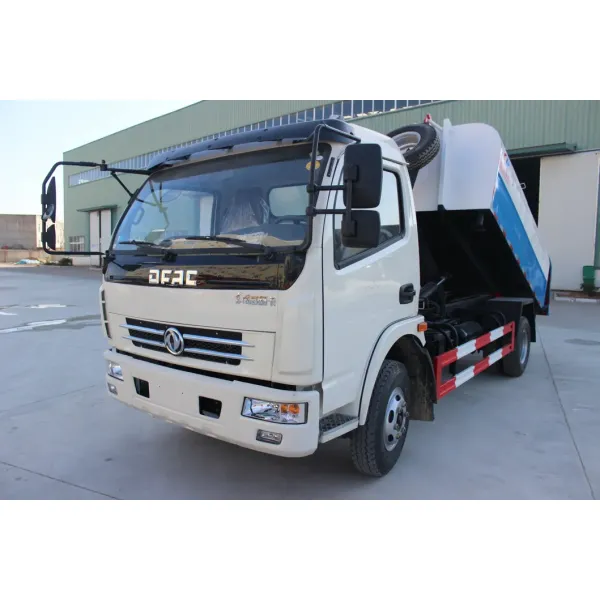

Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Specifications
MOQ :
1
Price :
15000-35000 per unit
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Place of Origin :
CHINA
Brand Name :
CLW
Model NO. :
CLW5089
Volume :
6-8m3
Emission Standard :
Euro 5
Transmission Type :
Manual
Payload :
6t, 8t, 10t
Fuel :
Diesel
Drive Wheel :
4×2
Brand :
Dongfeng
Models :
Medium
Usage :
Dump, Sealed, Arm Type
Condition :
New
Horsepower :
156HP
Thickness of Box :
4mm, 5mm
Container Roll off Time :
40-50s
Colour :
Customized
Chassis :
Dongfeng, HOWO, FAW, JAC, Foton, etc
Garbage Box Material :
Carbon Steel
Container Roll on Time :
50-60s
Operating System :
Hydraulic System
Transport Package :
Naked, RO-RO, Bulk, Container
Specification :
5880*2100*2390mm
Trademark :
CLW
Origin :
Suizhou, China
HS Code :
8705909090
Production Capacity :
500 Unit/Month
Name :
Garbage Truck
Description
Dongfeng 8m3 Hook Lift Garbage Truck With Detachable Hopper
Description:
  • Garbage Bin with different size options of waste collection truck: 2cbm to 12cbm.
  • Hydraulic Control Loading & Unloading System.
  • Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
  • High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
  • Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
  • Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
Specifications:
Drive type 4*2, New condition, LHD



Vehicle Main Dimensions

 (L x W x H)mm 5880×2100×2390
Wheel base (mm) 3800
F/R Axle-Load 3300/4975kg
Approach/departure angle 20/13
Curb weight 3895 kg
GVW 8275 kg
Max. driving speed(km/h) 103


Engine

 Model CY4SK251
Horse Power(HP) 156
Emission standard Euro V
Gearbox 6 forwards& 1 reverse
Clutch Reinforced diaphragm clutch
Tire 7.50R16, 7 pc including 1 spare tire
Steering Gear power steering, hydraulic steering with power assistance
Garbage Compactor Standard confirguration
Garbage Box Material Carbon Steel Q235
Thickness of box 5mm
Garbage Box Volume 8cbm
Container Roll on time(s) 50-60
Container Roll off time(s) 40-50
Hydraulic System Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board.
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck

Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck

Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck

Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck

Dongfeng 8m3 Detachable Hopper with Hook Lift Garbage Truck
Products Catalog:
  • LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
  • Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
  • Truck with crane / Truck mounted crane
  • Dump Truck / Tipper Truck/Side Tipper/End Tipper
  • Fire Fighting Truck / Fire Truck / Fire Vehicle
  • Concrete Mixer Truck
  • Van truck /Refrigerated truck
  • Fecal suction truck / Sewage suction truck,
  • Cement Powder Tank truck/ Bulk cement truck
  • High-altitude operation truck,
  • Self-loading garbage truck, garbage compactor truck, sealed garbage truck
  • Tractor
  • High Pressure Cleaning Truck
  • Sweeper Truck
  • Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
