Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Fuel :
Diesel
Horsepower :
190 HP
Logo :
as Per Customer's Request
Production Capacity :
500 Unit/Month
Type :
Compactor
Brand :
Dongfeng
Usage :
Arm Type
Wheel Base :
4500 mm
Hopper Size :
10 Cbm
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Specification :
7560x2500x3350mm
Material :
Carbon Steel
Models :
Small
Engine :
Cum-mins
Certification :
ISO9000, CCC, TS16949
MOQ :
1
Price :
15000-35000 per unit
Drive Wheel :
4×2
Name :
Swing Arm Garbage Truck
Payload :
9ton,8ton
Condition :
New
Hopper Number :
for Choice
Emission Standard :
Euro 3
HS Code :
8705909090
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Model NO. :
CLW50773
Trademark :
CLW
Origin :
Suizhou, China
Tire :
9.00-25
Transmission Type :
Manual
Volume :
10 Cbm
Description

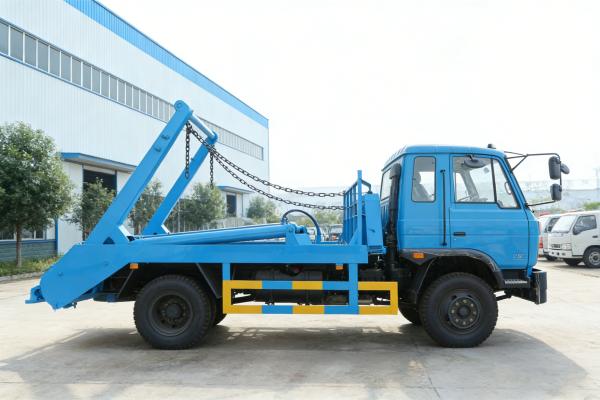

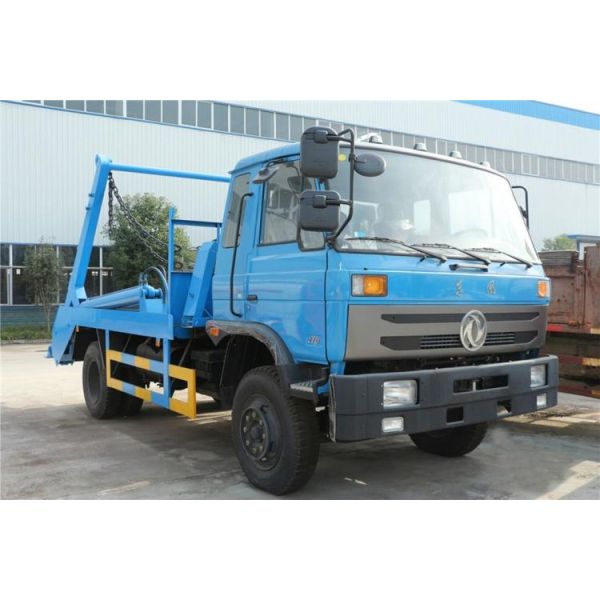

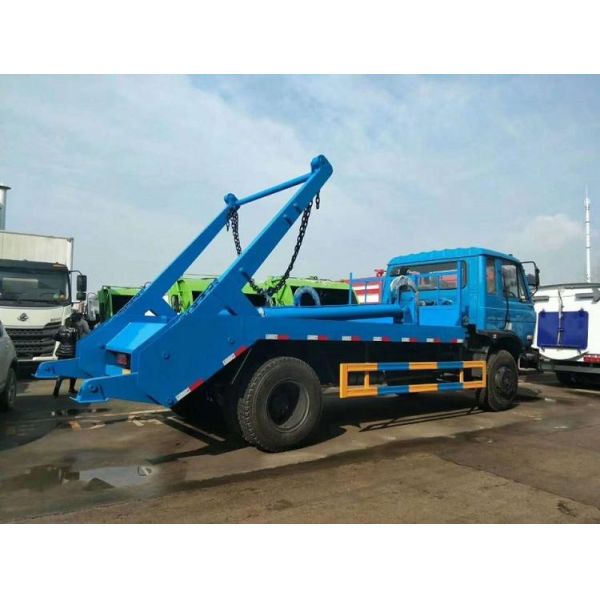

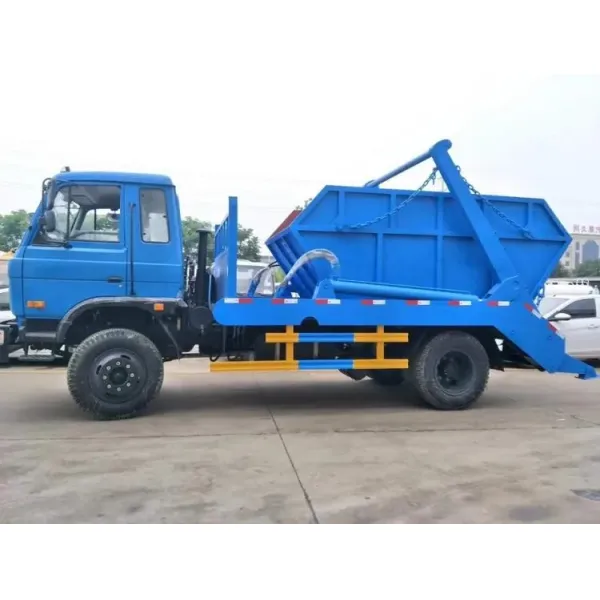

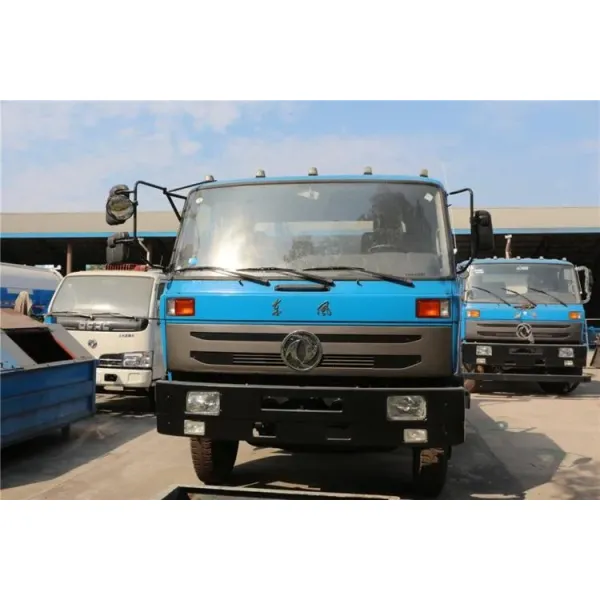

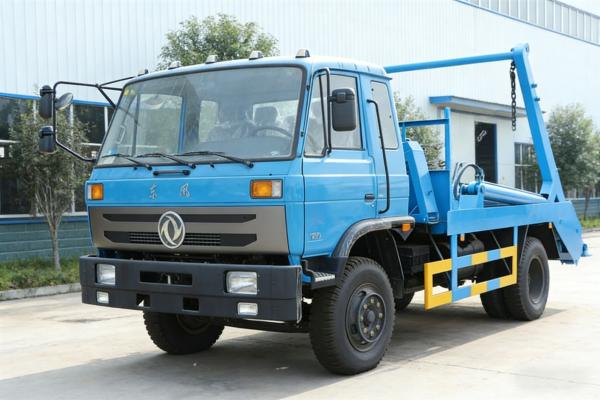

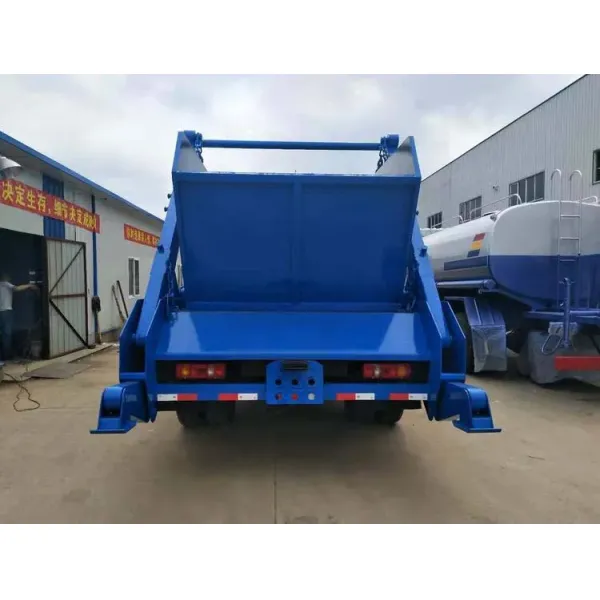

Dongfeng 10 Cbm Garbage Trucks Pit-Type Swing Arm Garbage Collector Truck
Product Description

Swing Arm Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area.

According to loading and unloading type, it is divided into the following categories:

  • dump garbage truck
  • hook arm garbage truck
  • compactor garbage truck
  • swing arm garbage truck
  • self-loading garbage truck
  • sealed type garbage truck
Drive type 4*2, New condition, LHD

Vehicle Main Dimensions

 (L x W x H)mm 7560×2500×3350
Wheel base (mm) 4500
F/R Axle-Load 5000/10000 kg,
Approach/departure angle 21/18
Curb weight 6645 kg
GVW 15800 kg
Max. driving speed(km/h) 90

Engine

 Brand ,Diesel ENGINE
Type 6 -stroke direct injection, 4cylinder in-line with water cooling, turbo-charging and inter-cooling;
Horse Power(HP) 190
Emission standard Euro III
Gearbox 6 forwards& 1 reverse
Clutch Reinforced diaphragm clutch
Tire 9.00-20,7 pc including 1 spare tire
Steering Gear power steering, hydraulic steering with power assistance
Upper Body
Garbage Box Material Carbon Steel Q235
Thickness Side 3mm ,buttom 4mm
Garbage Box Volume 10 CBM

Remarks

1. Color is optional

2.Customized LOGO painting as per customer request
