Specifications
Gross Vehicle Weight :
9755
Transmission Type :
Manual
System of loading :
Mechanized, rear loading
Model Number :
CLW
Price :
15000-35000 per unit
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Machinery Test Report :
Provided
Size :
8760X2480X3250mm
Maximum speed :
90km/h
Chassis model :
QL1100A
Drive Wheel :
4X2
Fuel Type :
Diesel
Video outgoing-inspection :
Provided
Engine model/HP :
4KH1/190HP
Front/rear suspension :
1430/2160mm
Volume :
8CBM
Chassis brand :
ISUZU
Place of Origin :
CHINA
Brand Name :
CLW
MOQ :
1
Emission Standard :
Euro 4
Weight (KG) :
6700 kg
Core Components :
Engine, Gearbox, Pump
Engine Emission :
Euro 4
Wheel base :
3815mm
Type :
Compactor
Warranty :
1 Year, One Year
Engine Capacity :
9726ml
Description
Product Description

1. Compression box volume8000 L; made by carbon steel plate; side plate is 4mm thickness, base plate is 5mm thickness;

2. The hydraulic control operation system can be controlled by electric and manual, one operation system button installed in the cab, the other operation system button installed at the back of the box;

3. Truck equipped with one key loading operation cycle.

4. The compression ratio can achieve above1:2.5, living garbage after compression can reach more than 600~800Kg/m3;

5. The time of the load operation is less than 30 seconds, unloading operation time is less than 40 seconds;

6. Equipped with imported PLC integrated control. Vehicle electrical, hydraulic system of pipe fittings is imported components.

Chassis parameters
Chassis model CLW11009MARY Chassis brand CLW
Overall dimensions 7930*2170*2330mm Wheel base 4475mm
Front/rear wheel track 1680/1650mm Front/rear suspension 1110/2345mm
Approach/departure angle 21/11° Maximum speed 110km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd.

Cab

 Configuration 700P,single row cab,allowable 3 passengers,air conditioner, USB radio interface,cab can be flipped.
Color White,other color is optional

Engine

 Model 4HK1-TCG40
Emission Euro 4
Type 4 cylinders,4 valve,4-stroke,in-line,common rail,precision electronic control,multistage injection,optimal combustion,exhaust gas recirculation, diesel engine.
Rated power 190hp
Displacement 5193ml
Tire Size 8.25-20-14PR nylon tire
Number 6+1 nos
Frame 216*70(6+3)mm
Front axle 4.0tons
Rear axle 7.0 tons
Drive form 4*2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Isuzu MLD six speed transmission,6 speed forward 1 reverse.

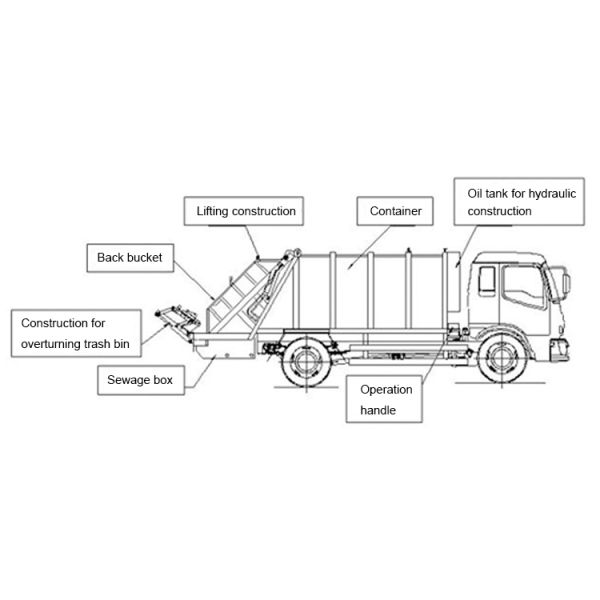

Refuse compactor structure parameters
Equipment
Structure Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems
Loading capacity 4.5m3
System of loading Mechanized, rear loading
Modes of the pressing Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic
Body
Version All-metal
Shape arc-shaped
Sidewalls Sheet carbon steel (thickness: 3 mm)
Bottom Sheet carbon steel (thickness: 4 mm)
Roof Sheet carbon steel (thickness: 4 mm)
Front frame Sheet carbonaceous steel (thickness: 5 mm)
Rear frame n-shaped profile from sheet carbon steel (thickness:5 mm)
Basis 120*120mm (thickness: 5 mm)
Loading bunker
Loading bunker All-metal with sidewalls and a loading ladle
Volume 0.7 m3
Sidewalls Sheet carbon steel (thickness: 3 mm)
Ladle floor material Sheet carbon steel (thickness: 4 mm)
Liquid drain Drainage channel,sewage tank
Working zone Lighting 2 lamps
Mechanism of raising Two hydraulic cylinders
Ensuring tightness Between the body and lifting back part in the lower part profile acid-proof rubber is used.
Pressing system
Features Control mode diversification,bidirectional compression
Pressure 16Mpa
Compaction ratio 3.0:1
Loading cycle 25-30 second
Unloading cycle 15-20 second
pressing mechanism The giving plate and hinge related pressing plate moving on two directing bars
Pressing mode

Automatic pressing

(1 full cycle and continuous pressing) and controlling of each cycle of pressing separately
Control of pressing Control from the external panel on the bunker
Lifting rear part
Mechanism of lifting Two hydraulic cylinders
Function description Suitable for various rubbish bins
Product Images

Second Hand Garbage Trucks JAPAN Technology Used Garbage Compactor Truck 8m3

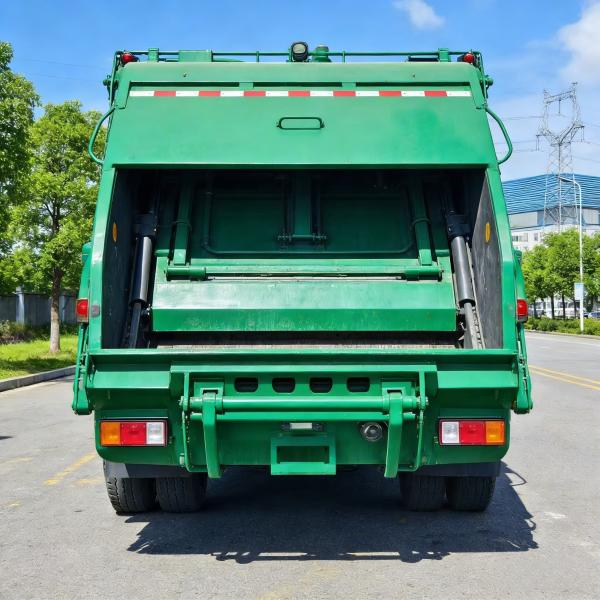

Rear flipping

Second Hand Garbage Trucks JAPAN Technology Used Garbage Compactor Truck 8m3

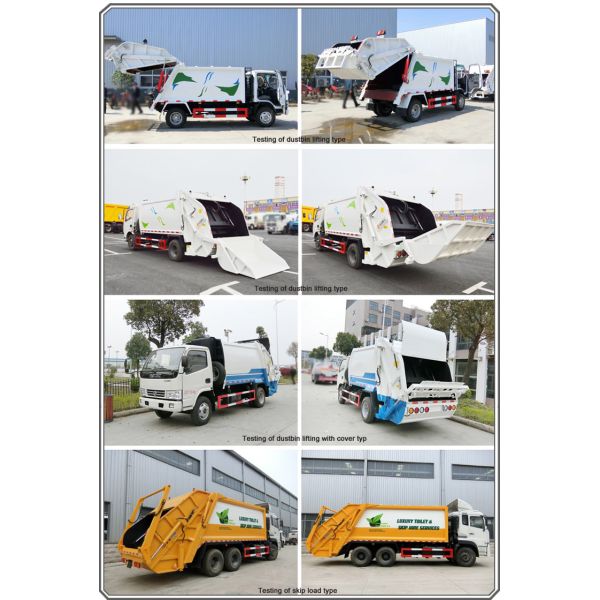

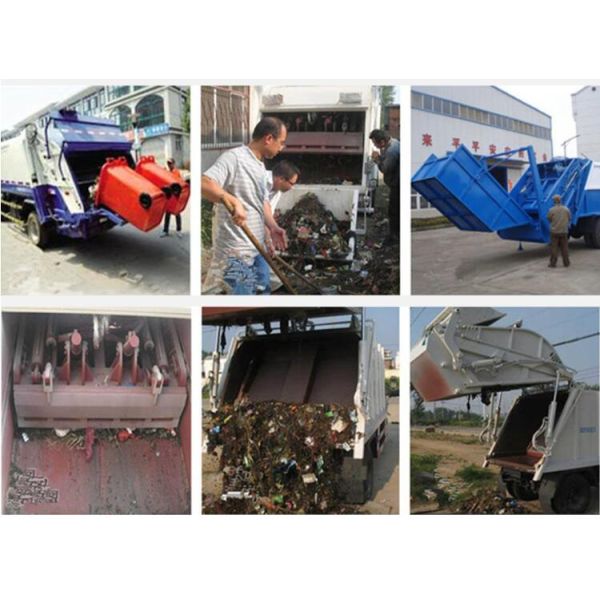

Application Scene

Second Hand Garbage Trucks JAPAN Technology Used Garbage Compactor Truck 8m3

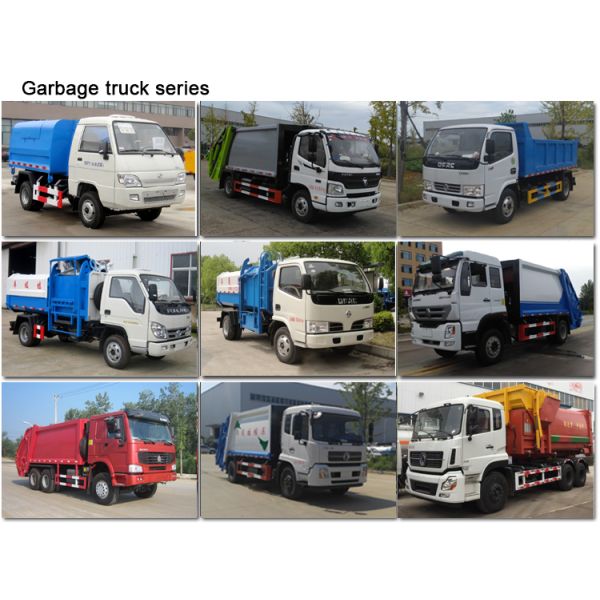

Main Product
