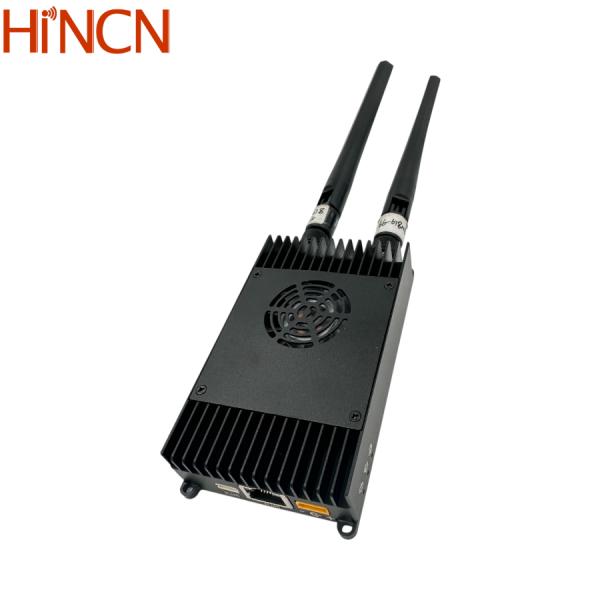

Long-Range Wireless Video Transmission System for Unmanned Vehicles
Long-Range Wireless Video Transmission System for Unmanned Vehicles
Long-Range Wireless Video Transmission System for Unmanned Vehicles
Long-Range Wireless Video Transmission System for Unmanned Vehicles
Specifications
Brand Name :
Hincn
Model Number :
HCL536
Place of Origin :
China
MOQ :
1 set (2 pcs)
Price :
US$1155.00~US$2,999
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1,339sets/month
Delivery Time :
7~14 working days
Packaging Details :
carton package
Modulation :
TDD OFDM
Frequency :
806~826MHz,1428~1468MHz,1420~1530MHz
Bandwidths :
1.4/3/5/10/20MHz
Throughput :
Maximum 30Mbps@20MHz
Sensitivity :
-108dBm(1Mbps)
RF Transmissioin Power :
5W
FHSS :
support
Transmission range :
150km
Description
Long-Range Wireless Video Transmission System for Unmanned Vehicles
Reliable long-range video link for UAVs, UGVs, and robotic platforms. Ideal for industrial inspection, mapping, and remote monitoring.
Key Features
  • Supports multi-platform operation
  • High-definition video transmission
  • Low-latency streaming capabilities
Technical Specifications
Radio
Frequency 806~826MHz, 1428~1468MHz, 1420~1530MHz (customizable)
Bandwidth 1.4/3/5/10/20MHz
RF Power 5W×2
Modulation OFDM
Constellation BPSK; QPSK; 16QAM
Duplex TDD
Throughput Maximum 30M bps@20MHz
Encryption AES128
Power
Air Unit 5W×2
Ground Unit 5W×2
Size and Weight
Air Unit 103.4*61.4*22mm / 142g
Ground Unit 103.4*61.4*22mm / 142g

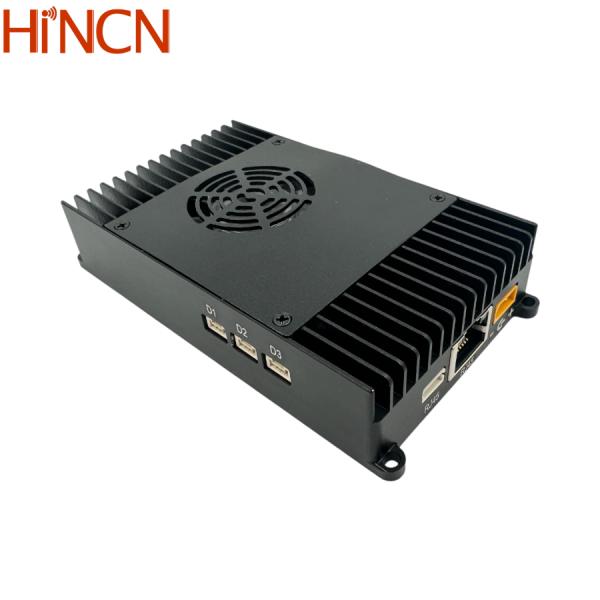

Connectivity
Antenna SMA×2
Video Interface Ethernet×2
Other Interface 3*RS232, 3*TTL or 2*RS232/TTL + 1*Sbus
Environment
Working Temperature -40°C~60°C
Applications:
Long-Range Wireless Video Transmission System for Unmanned VehiclesFrequently Asked Questions
What types of unmanned vehicles are compatible with this system?
Our system supports UAVs, drones, UGVs, and robotic vehicles, including multirotor, fixed-wing, and VTOL platforms. It integrates easily via SDK, API, TTL, or Ethernet interfaces.
What is the maximum transmission range?
The system provides long-range video transmission up to 100-150 km+ (line-of-sight), depending on environmental conditions and antenna setup.
What video quality does the system support?
It supports HD 1080p and 4K video in real-time, ensuring clear, low-latency streaming suitable for surveillance, aerial photography, FPV, and industrial inspection.
How secure is the video transmission?
The system uses AES-128 encryption and interference-resistant technology, ensuring secure and stable connections in challenging environments.
Can multiple vehicles be monitored simultaneously?
Yes. The system supports multi-vehicle and multi-hop mesh networks, allowing operators to monitor multiple UAVs or UGVs simultaneously on a single control station.
What is the latency of the video link?
The video link provides ultra-low latency transmission (<120ms) for smooth real-time control, FPV operations, and precise industrial monitoring.
Is the system easy to install and integrate?
Absolutely. The system is lightweight, compact, and plug-and-play, making it easy to mount on drones or unmanned vehicles without extensive modifications.
Can it operate in harsh environments?
Yes. It is designed for all-weather operations, including rain, fog, dust, and challenging industrial or urban terrains.
Does it require a line-of-sight connection?
While it works best with line-of-sight for maximum range, it also supports non-line-of-sight (NLOS) and relay mesh configurations for extended coverage.
What applications is this system ideal for?
Common use cases include: aerial photography & FPV drones, industrial inspection & monitoring, security & surveillance, search & rescue operations, and robotics & autonomous vehicle applications.
