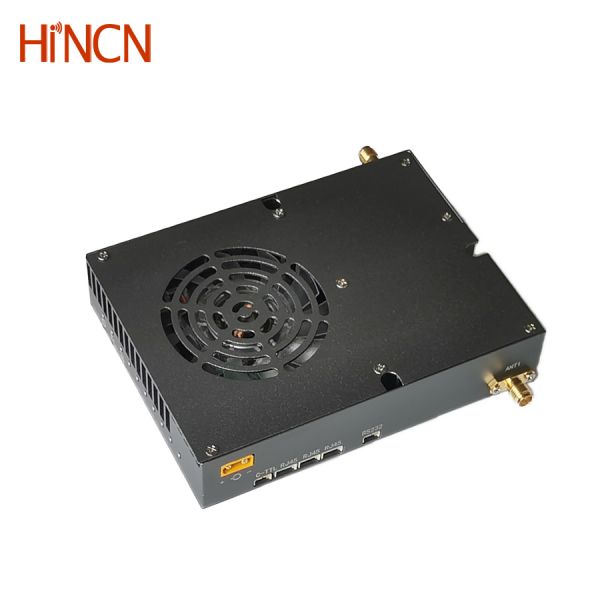

Long Range 150km P2MP ODM UAV Video Data Link Support FHSS Wireless Transceiver
Long Range 150km P2MP ODM UAV Video Data Link Support FHSS Wireless Transceiver
Long Range 150km P2MP ODM UAV Video Data Link Support FHSS Wireless Transceiver
Long Range 150km P2MP ODM UAV Video Data Link Support FHSS Wireless Transceiver
Specifications
Brand Name :
Hincn
Model Number :
HCL605-5W*2-S9
Place of Origin :
China
MOQ :
1set
Price :
US$2,999~US$3,199
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2009pcs/month
Delivery Time :
7~14 working days
Packaging Details :
Canned and packaged in cardboard boxes
Frequency :
566~678MHz and 1420~1530MHz
RF Power :
5W *2( Each 5W of the 2 antennas)
Sensitivity :
-102dBm(1Mbps at 20MHz)
Management :
Trough Web UI or Control uart
Air-to-ground LOS(light of sight) distance :
up to 150km
FHSS :
Support
Description
Long Range 150km P2MP ODM UAV Video Data Link Support FHSS Wireless Transceiver
The UAV video data link is specifically designed for long range video data wireless transmission. It supports 566~678MHz and 1420~1530MHz frequency and FHSS to ensure higher stability of UAV signal communication.
Key Features
  • TDD COFDM modulation
  • Up to 100Mbps Iperf Throughput
  • Supports P2P, P2MP, Relay Networking, If you need MESH networking, please specify.
  • Control by web browser or control UART
  • 3 Ethernet and 1 channel RS232/TTL serial data transmission
  • Long distance wireless video data RF transmission with 5W*2 RF power amplifier
  • Uplink and downlink stream automatic control
Technical Specifications
Name Long Range 150km P2MP ODM UAV Video Data Link Support FHSS Wireless Transceiver
Modulation TDD OFDM/ COFDM
Model number HCL605-5W*2-S9
Frequency 566~678MHz and 1420~1530MHz
FHSS Support
Bandwidths 1.4/3/5/10/20/40MHz
Throughput Maximum 100Mbps
RF transmission Power 5W *2 (Each 5W of the 2 antennas)
Constellation QPSK,16QAM,64QAM, self-adaption
Sensitivity -102dBm(1Mbps at 20MHz)
IP data transmission 3 Ethernet port
Serial data transmission 1 channel RS232 or TTL
Transmission range 2~10km (ground to ground), maximum 100km (UAV to ground)
Management Through Web UI or Control UART
Encryption AES128-bit encryption
Network mode P2P, P2MP, Relay Networking, If you need MESH networking, please specify.
Movement speed Support maximum 300km/h
Power input 24~30V
Power consumption <2A at 12V
Dimensions 113.9*83.7*23.3 mm
Weight 243g

Long Range 150km P2MP ODM UAV Video Data Link Support FHSS Wireless Transceiver

Input/Output
Port Description
Ethernet 3 channel 4Pin PH1.25mm connector, bridged inside with same IP address
Data UART RS232 data UART (RS232 as default, optional TTL before shipping out), 3PIN PH1.25mm connector
Control UART TTL control UART, 3PIN PH1.25mm connector
Power in XT30PW-M connector
ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Tx/Rx Antenna port, SMA female


Project Process:

Long Range 150km P2MP ODM UAV Video Data Link Support FHSS Wireless Transceiver


About Hincn Limited:
Hincn Limited is a Hong Kong company specializing in HD video wireless communication solution which was found in 2018. While our research and production center is located in Shenzhen and was established in 2015. Our company has a long-term cooperative relationship with ADI, Xilinx, Altera and Morningcore. We are the third-party design partner for both ADI and Morningcore.
