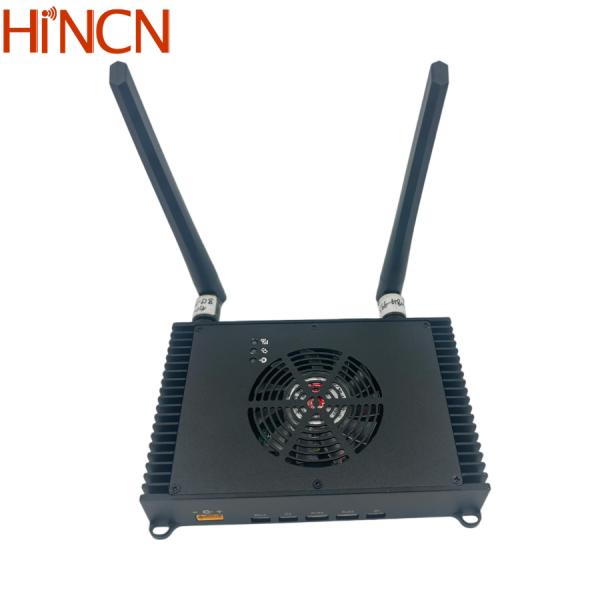

VDLINK Video Data Link OFDM Radio Support MESH Networking Mobile AD Hoc Networks
VDLINK Video Data Link OFDM Radio Support MESH Networking Mobile AD Hoc Networks
VDLINK Video Data Link OFDM Radio Support MESH Networking Mobile AD Hoc Networks
VDLINK Video Data Link OFDM Radio Support MESH Networking Mobile AD Hoc Networks
Specifications
Brand Name :
Hincn Limited
Model Number :
HCL620
Place of Origin :
China
MOQ :
1 set
Price :
US$1,869~3,469
Payment Terms :
,L/C,D/P,D/A,T/T,Western Union
Supply Ability :
1,986 sets
Delivery Time :
5~8 working days
Packaging Details :
carton package
Video Input :
Ethernet/HDMI/SDI/AHD/AV
Transmit power :
5W*2
Transmit Distance :
up to 100KM
Modulation :
TDD OFDM
FHSS :
Support
OEM/ODM :
Support
Encryption :
AES128/AES256
Description
VDLINK Video Data Link OFDM Radio with MESH Networking
The VDLINK Video Data Link OFDM Radio supports MESH Networking and Mobile AD Hoc Networks. This advanced video data link features inter-frequency networking that separates signal transmission and reception into different frequency bands, effectively resisting interference and enhancing anti-jamming capabilities.
Advanced Network Capabilities
In a MESH network video data link, each HCL620 MANET radio communicates peer-to-peer, forming a true mobile network. The system easily installs on various unmanned system platforms and connects directly to monitors, input devices, and sensors through multi-functional I/O ports, creating a convenient Ground Control Station (GCS) or field data processing unit.
  • Supports point-to-point, point-to-multipoint, chain relay, mesh networking and hybrid network topology
  • Self-forming and self-healing network capabilities
  • Ultra-reliable connectivity for unmanned systems
Technical Specifications
Model Number HCL620
Product Name VDLINK Video Data Link OFDM Radio Support MESH Networking Mobile AD Hoc Networks
Modulation TDD OFDM
Frequency 1420~1530MHz, other frequencies can be customized
FHSS Support
Bandwidths 3MHz, 5MHz, 10MHz, 20MHz, 40MHz
Throughput Maximum 100Mbps throughput
RF Transmission Power 10W*2
Constellation QPSK, 16QAM, 64QAM self adaption
Sensitivity -102dBm(1Mbps@20MHz)
Ethernet Ports 2 * Ethernet ports for IP data transmission
Serial Ports 2 channel TTL for serial data transmission (TTL 3.3V uart as default, RS232 optional)
Transmission Range 2~10km(ground-to-ground), 20~150km(UAV-to-ground, optional range level)
Control By Web UI and Control Uart
Encryption AES128
Networking Mode Point to Point, Point to Multipoint, Relay
Movement Speed Support no less than 240km/h
Power Input 24~32V
Power Consumption <1.86A@28V(access node) and <0.75A@28V(central node)
Dimensions 131*93.7*24.8mm
Weight 277g
I/O Ports Configuration
VDLINK Video Data Link OFDM Radio Support MESH Networking Mobile AD Hoc Networks
Ethernet*2 2 channel 4Pin GH1.25mm lockable connector, bridged inside with same IP address
Uart1 TTL3.3V data UART, 3Pin GH1.25mm lockable connector, can be changed to RS232 as requirement
Uart2 TTL3.3V data UART, 3Pin GH1.25mm lockable connector, can be changed to RS232 as requirement. It can be set as control uart via web UI
Sbus 3Pin GH1.25mm lockable connector. Sbus-in and Sbus-out
Power in XT30PW-M connector
ANT1 Tx/Rx Antenna port, SMA female
ANT2 Tx/Rx Antenna port, SMA female
Nodes and Throughput
The HCL620 MANET network radio supports two operation modes: access node mode or central node mode. It can be managed through the network user interface. The HCL620 supports the function of up to 64 access nodes connecting to a central node. All nodes are in the same wireless local area network and share the entire transmission bandwidth (up to 100Mbps throughput). The data from the central node to the access node is called downlink data, while the data from the access node to the central node is called uplink data. The ratio of uplink and downlink data streams can be controlled through the web UI. When using the HCL620 for point-to-point transmission, the uplink and downlink data will also share the entire transmission bandwidth (up to 100Mbps throughput).
Frequently Asked Questions
Q1. Can I get a sample order for this MANET network radio?
A1: Sure, welcome sample order for testing.
Q2. Is it OK to put my company logo on this MANET network radio?
A2: Yes. Please inform us before production.
About Hincn Limited
Hincn Limited is a Hong Kong company specializing in HD video wireless transmission solutions, founded in 2018. Our research and production center is located in Shenzhen and was established in 2015. We have a total of 9 employees, including 3 programmers and 2 engineers. Our company maintains long-term cooperative relationships with ADI, Xilinx, Altera and Morningcore. We are the third-party design partner for both ADI and Morningcore.
