1.4GHz MANET Mesh Radio | Long Range Mobile Ad Hoc Network for UAV & Tactical Communication
1.4GHz MANET Mesh Radio | Long Range Mobile Ad Hoc Network for UAV & Tactical Communication
1.4GHz MANET Mesh Radio | Long Range Mobile Ad Hoc Network for UAV & Tactical Communication
1.4GHz MANET Mesh Radio | Long Range Mobile Ad Hoc Network for UAV & Tactical Communication
Specifications
Model Number :
HCL620
Delivery Time :
5~8 working days
Transmit power :
10W*2
Place of Origin :
China
Supply Ability :
1,936 sets
Transmit Distance :
up to 100KM
OEM/ODM :
Support
Payment Terms :
L/C,D/P,D/A,T/T,Western Union
Modulation :
TDD OFDM
Price :
US$1,849~3,439
Packaging Details :
carton package
Encryption :
AES128
Video Input :
Ethernet/HDMI/SDI/AHD/AV
Brand Name :
Hincn Limited
MOQ :
1 set
Description

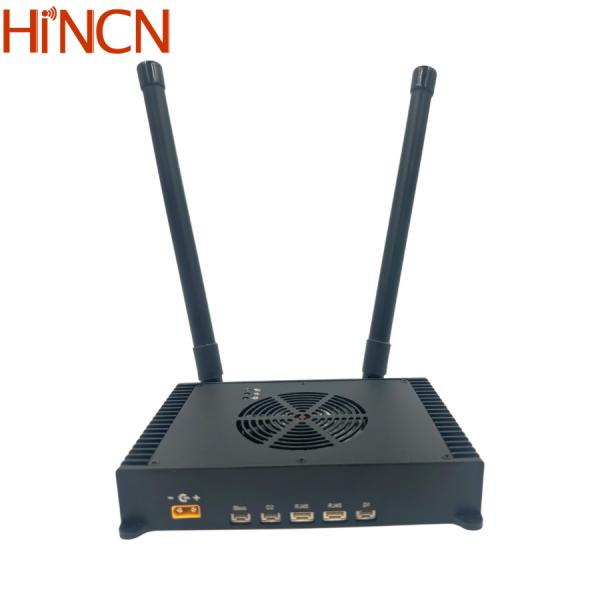

1.4GHz MANET Mesh Radio | Long Range Mobile Ad Hoc Network for UAV & Tactical Communication
This high-performance 1.4GHz MANET mesh radio is engineered for decentralized wireless communication systems, delivering reliable data, voice, and video transmission without fixed infrastructure. Designed for mobility and resilience, it serves as an optimal solution for UAV networks, emergency response, and tactical operations.
Supporting up to 64 nodes in a dynamic mesh topology, this mobile ad hoc network (MANET) radio automatically establishes self-healing connections, ensuring stable communication in complex and rapidly changing environments.
Key Features
  • Centerless Mesh Networking Architecture - No master node required. Each unit functions as both transmitter and receiver, enhancing system redundancy and flexibility.
  • 1.4GHz Frequency Band for Strong Penetration - Optimized for long-distance transmission with excellent obstacle penetration in urban and mountainous terrains.
  • Up to 64 Nodes Networking Capability - Supports scalable deployment for large-area communication systems.
  • FHSS (Frequency Hopping Spread Spectrum) - Enhances anti-jamming performance and ensures secure, stable wireless links.
  • High-Speed Data Transmission - Suitable for real-time video, voice communication, and IP data transfer.
  • Low Latency Communication - Enables fast response for mission-critical operations.
Technical Specifications
Model Number HCL620
Product Name 1.4GHz MANET Mesh Radio | Long Range Mobile Ad Hoc Network for UAV & Tactical Communication
Modulation TDD OFDM
Frequency 1420~1530MHz
FHSS Support
Bandwidths 3MHz, 5MHz, 10MHz, 20MHz, 40MHz
Throughput Maximum 100Mbps throughput
RF Transmission Power 10W*2
Constellation QPSK, 16QAM, 64QAM self adaption
Sensitivity -102dBm(1Mbps@20MHz)
Ethernet Ports 2 * Ethernet ports for IP data transmission
Serial Ports 2 channel TTL for serial data transmission (TTL 3.3V uart as default, RS232 optional)
Transmission Range 2~10km(ground-to-ground), 20~150km(UAV-to-ground, optional range level)
Control By Web UI and Control Uart
Encryption AES128
Networking Mode Point to Point, Point to Multipoint, Relay
Movement Speed Support no less than 240km/h
Power Input 24~32V
Power Consumption <1.86A@28V(access node) and <0.75A@28V(central node)
Dimensions 131*93.7*24.8mm
Weight 277g

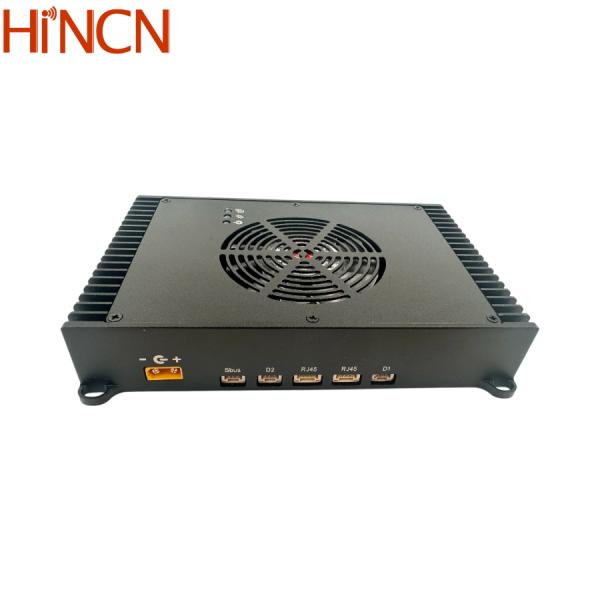

I/O Ports Configuration
1.4GHz MANET Mesh Radio | Long Range Mobile Ad Hoc Network for UAV & Tactical Communication

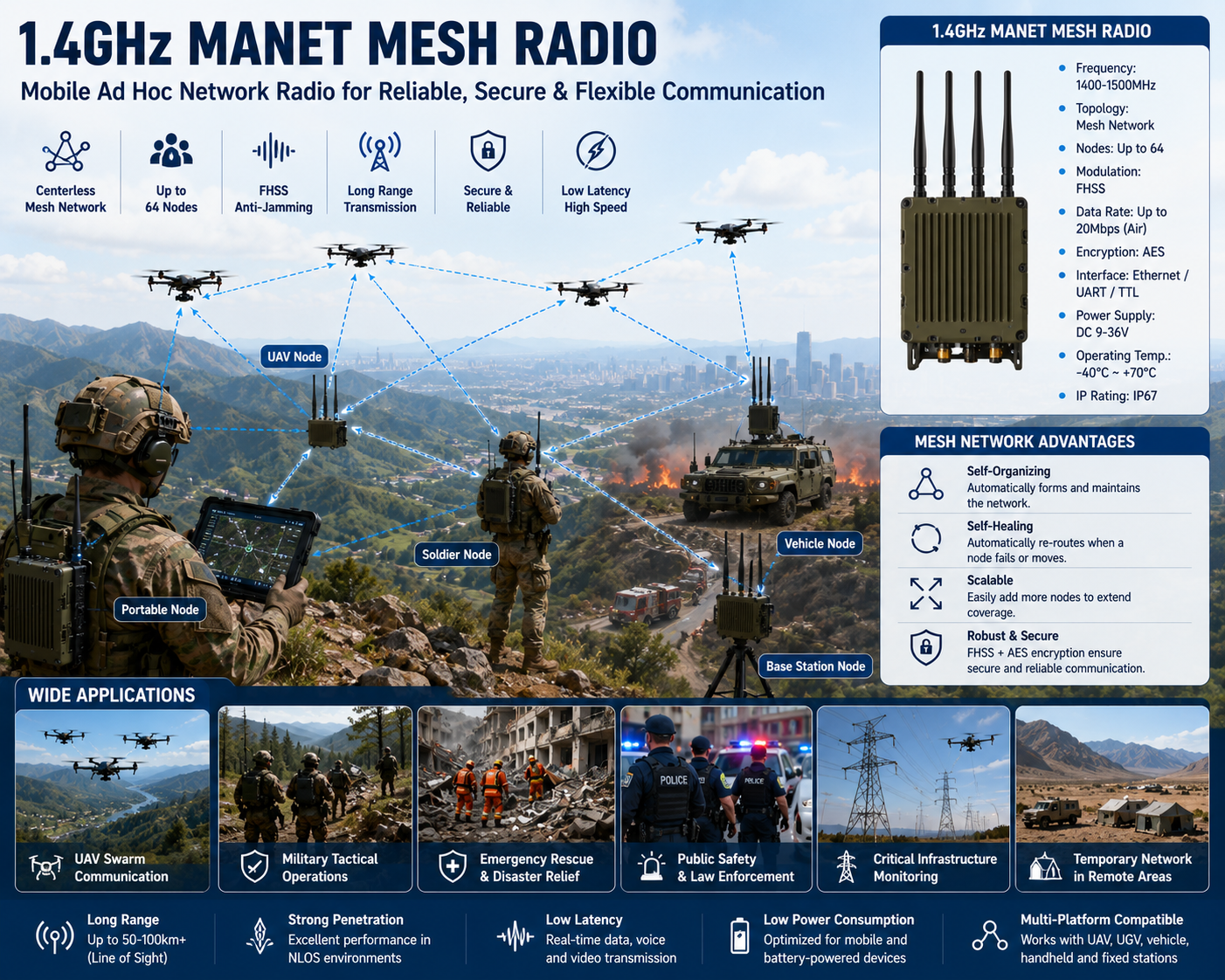

Typical Applications
  • UAV swarm communication and coordination
  • Tactical communication networks
  • Emergency rescue and disaster relief
  • Public safety and law enforcement
  • Temporary communication networks in remote areas
  • Smart city and industrial IoT deployments
1.4GHz MANET Mesh Radio | Long Range Mobile Ad Hoc Network for UAV & Tactical Communication
Why Choose This MANET Radio Solution?
Compared with traditional point-to-point radios, this mesh network radio delivers superior flexibility, enhanced reliability, and broader coverage. Its self-forming and self-healing network capability ensures uninterrupted communication even when nodes move or fail. This makes it an excellent choice for professionals seeking a secure, scalable, and long-range wireless communication solution in challenging environments.
