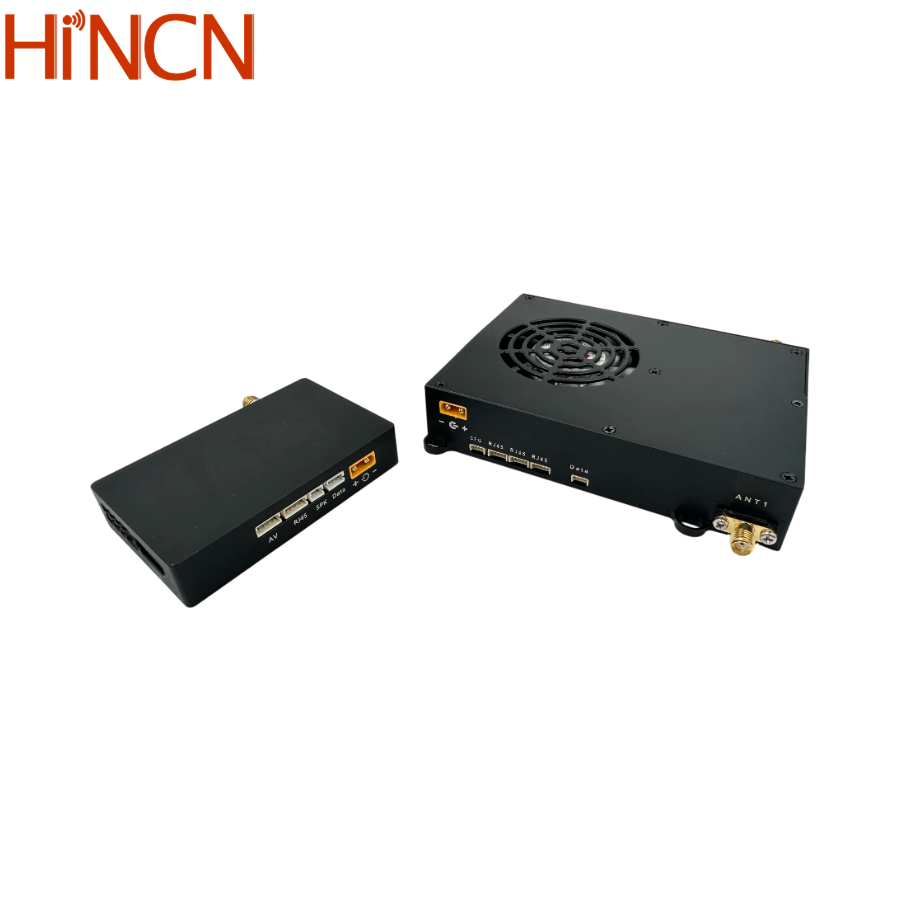

IP Mesh Network Radio With 64 Nodes Centerless 600MHz 1.4GHz 5W RF Power Output
IP Mesh Network Radio With 64 Nodes Centerless 600MHz 1.4GHz 5W RF Power Output
IP Mesh Network Radio With 64 Nodes Centerless 600MHz 1.4GHz 5W RF Power Output
IP Mesh Network Radio With 64 Nodes Centerless 600MHz 1.4GHz 5W RF Power Output
Specifications
Brand Name :
Hincn
Model Number :
HCL605
Place of Origin :
China
MOQ :
1pc
Price :
US$1,689~US$3,199
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1,399pcs/month
Delivery Time :
7~14 working days
Packaging Details :
Canned and packaged in cardboard boxes
Frequency :
566~678MHz and 1420~1530MHz
RF Power :
5W *2( Each 5W of the 2 antennas)
Sensitivity :
-102dBm(1Mbps at 20MHz)
Network mode :
Mesh
Management :
Trough Web UI or Control uart
Air-to-ground LOS(light of sight) distance :
up to 100km
OEM/ODM :
Support
Description
IP Mesh Network Radio With 64 Nodes Centerless 600MHz 1.4GHz 5W RF Power Output
The HCL605 Mesh networking AD hoc radio has small size and light weight. Fast network access and automatic multi-hop relaying can provide voice group calls, video backhaul, relay transmission and other multimedia communication services for individual soldiers, teams and police dogs to achieve efficient collaboration.
Key Features
  • Compact size
  • Up to 100Mbps data rate
  • Control by web browser or control UART
  • 3 Ethernet and 1 channel RS232/TTL serial data transmission
  • AES128 security protection
  • Long distance wireless video data RF transmission with 5W*2 RF power amplifier
Technical Specifications
Attribute Value
Name IP Mesh Network Radio With 64 Nodes Centerless 600MHz 1.4GHz 5W RF Power Output
Modulation TDD OFDM
Frequency 566~678MHz and 1420~1530MHz
FHSS Support
Bandwidths 1.4/3/5/10/20/40MHz
Throughput Maximum 100Mbps
RF transmission Power 5W *2 (Each 5W of the 2 antennas)
Constellation QPSK,16QAM,64QAM, self-adaption
Sensitivity -102dBm(1Mbps at 20MHz)
IP data transmission 3 Ethernet port
Serial data transmission 1 channel RS232 or TTL
Transmission range 2~10km (ground to ground), maximum 100km (UAV to ground)
Management Through Web UI or Control UART
Encryption AES128-bit encryption
Network mode Centerless network, star network, chain network, mesh network, etc
Movement speed Support maximum 300km/h
Power input 24~30V
Power consumption <2A at 12V
Dimensions 113.9*83.7*23.3 mm
Weight 243g

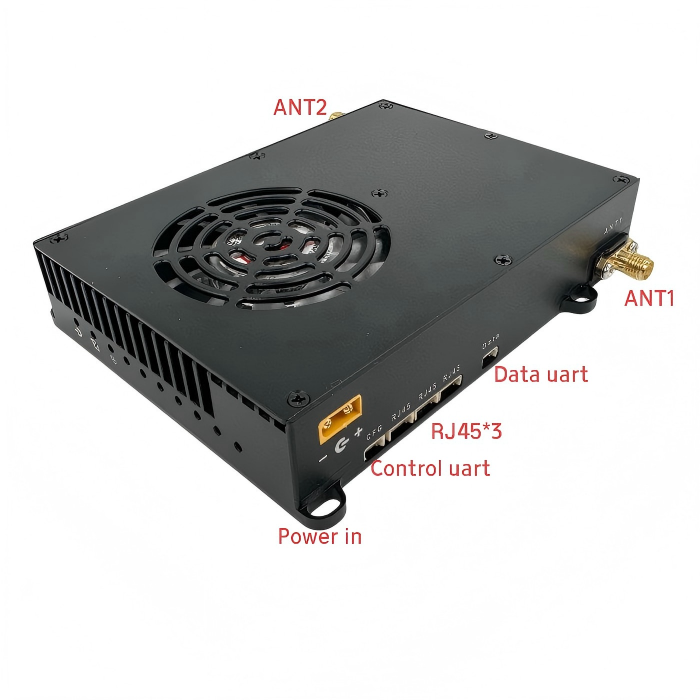

Input/Output
Port Description
Ethernet 3 channel 4Pin PH1.25mm connector, bridged inside with same IP address
Data UART RS232 data UART (RS232 as default, optional TTL before shipping out), 3PIN PH1.25mm connector
Control UART TTL control UART, 3PIN PH1.25mm connector
Power in XT30PW-M connector
ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Tx/Rx Antenna port, SMA female
Wireless Mesh Networking with HCL605-5W
  • Mesh networking capacity: Up to 64 nodes (N2 ≤ N ≤ 64)
  • Transmission: Supports unicast, multicast and broadcast functions
  • Time synchronization: can be self-synchronized independently without the need for an external clock
  • Power control: all nodes will adaptively adjust the transmission power
  • Topology structure: Supports multi-hop routing topology with up to 64 nodes and 63 hops
  • Routing: automatically adjusts the route, and can also permanently configure a fixed route
  • Data rate level: uses adaptive average allocation of system rate
  • Transmission delay: Detailed delay calculations provided for various network configurations
  • Startup time delay: Network establishment delay of 20-80 seconds for logical main control node
FAQ
Q1. Does this Mesh networking radio support any other cameras except IP camera?
IP camera video can be connected with HCL605 directly via Ethernet port. HDMI/SDI/AHD/AV camera video can be encoded with our SE10/SE11 encoder and then work with HCL605 via Ethernet connection.

IP Mesh Network Radio With 64 Nodes Centerless 600MHz 1.4GHz 5W RF Power Output

About Hincn Limited
Hincn Limited is a Hong Kong company specializing in HD video wireless communication solutions, founded in 2018. Our research and production center in Shenzhen was established in 2015. With 9 employees including 3 programmers and 2 engineers, we maintain long-term cooperative relationships with ADI, Xilinx, Altera, and Morningcore, serving as third-party design partners for both ADI and Morningcore.
