Transmission Line Stringing Equipment Hydraulic Cable Tensioner With Conductor Clamp
Transmission Line Stringing Equipment Hydraulic Cable Tensioner With Conductor Clamp
Transmission Line Stringing Equipment Hydraulic Cable Tensioner With Conductor Clamp
Transmission Line Stringing Equipment Hydraulic Cable Tensioner With Conductor Clamp
Specifications
Model Number :
TY2x70-2
Brand Name :
HANYU
Payment Terms :
L/C, T/T
Max continuous tension :
2x60kN
Max reverse pulling force :
2*60kN/1*120kN
Price :
USD79,000-85,000/set
Type :
Hydraulic Tensioner With Conductor Clamp
Supply Ability :
10Sets/Month
Max intermittent tension :
2x70kN
MOQ :
1set
Delivery Time :
15-35days
Overall dimension (length*width*height) :
5500*2460*2900mm
Packaging Details :
Container
Max conductor diameter :
45mm
Certification :
ISO9001
Place of Origin :
China
Description

Transmission Line Stringing Equipment Hydraulic Cable Tensioner With Conductor Clamp

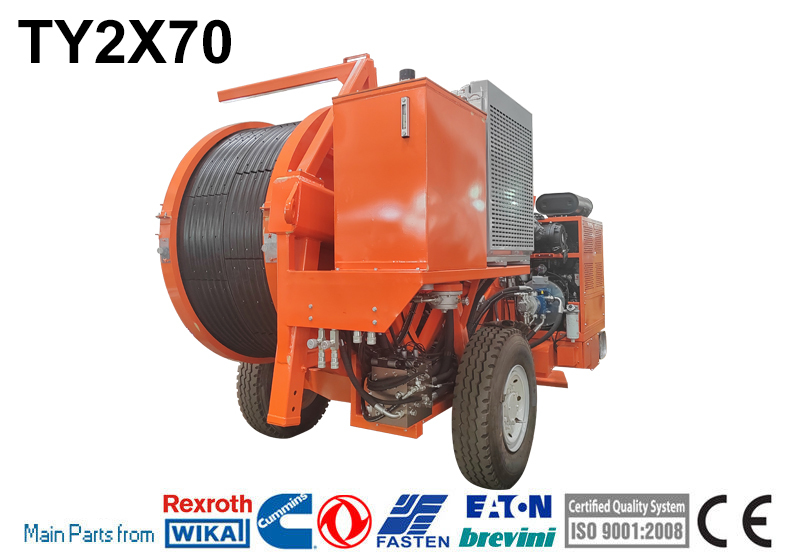

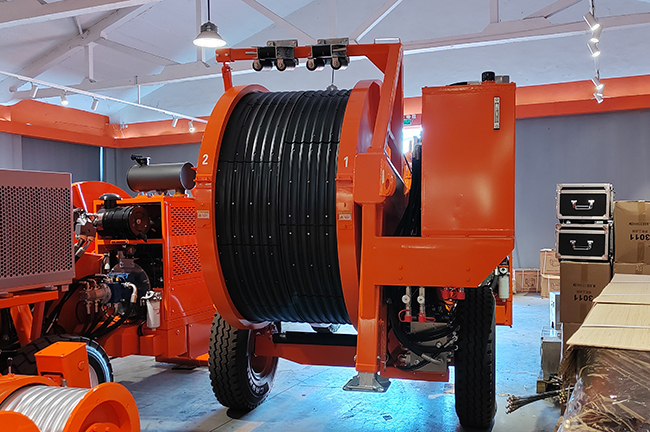

TY2x70 Hydraulic Tensioner
  • The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Performance
Max intermittent tension 2x70kN
Max continuous tension 2x60kN
Speed at max tension 2.5km/h
Max speed 5km/h
Pull at max speed 2x30kN/1x60kN
Max reverse pulling force 2*60kN/1*120kN
Max reverse pulling speed 3km/h
Characteristics
Bull-wheel diameter 1700mm
Max conductor diameter 45mm
Groove number 2x6
Total weight 11500kg
Overall dimension (length*width*height) 5500*2460*2900mm
Main configuration
Engine Cummins
Hydraulic pump

German Rexroth/Dnish Danfoss
Main motor German Rexroth/French Leduc
Speed reducer German Rexroth / Italy Bonfiglioli
Main hydraulic valves USA Sun / Italy ATOS
Engine
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V

Hydraulic Transmission
  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.
Configuration
  • 2 negative self-acting hydraulic brakes
  • 2 hydraulic dynamometers
  • Hydraulic oil cooling system
  • 2 digital meter and speed counters
  • Control instruments for hydraulic system and diesel engine
  • Rigid axle for towing at max speed of 15km/h with mechanical parking brake
  • Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
  • Grounding connection point
Additional Devices
  • Lighting system for the trailer
  • 2 hydraulic rope/conductor clamp (extra charge)
  • Swivel guide rope roller

  • Trailer for towing at max speed of 15 km/h

  • Digital speed and meter counter

  • Air brake system for the trailer (extra charge)


Transmission Line Stringing Equipment Hydraulic Cable Tensioner With Conductor Clamp
