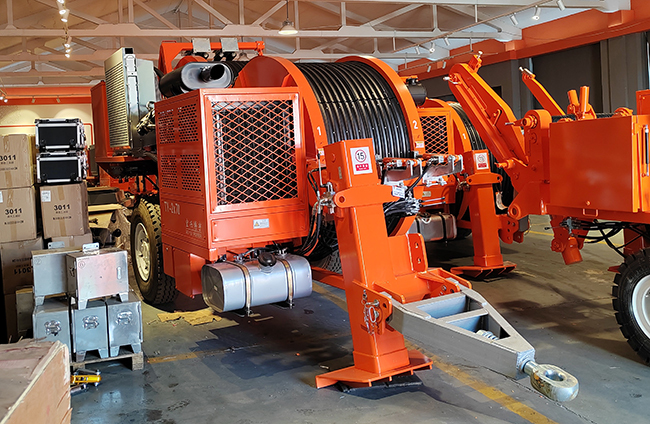

Transmission Line Stringing Equipment 2x70kN Hydraulic Laying Tension Machine
Transmission Line Stringing Equipment 2x70kN Hydraulic Laying Tension Machine
Transmission Line Stringing Equipment 2x70kN Hydraulic Laying Tension Machine
Transmission Line Stringing Equipment 2x70kN Hydraulic Laying Tension Machine
Specifications
Model Number :
TY2x70-5
Payment Terms :
L/C, T/T
Max intermittent tension :
2x70kN
Max reverse pulling speed :
3km/h
Price :
USD79,000-85,000/set
Groove number :
2x6
Supply Ability :
10Sets/Month
Type :
Hydraulic Laying Tension Machine
Brand Name :
HANYU
MOQ :
1set
Delivery Time :
15-35days
Max conductor diameter :
45mm
Max reverse pulling force :
2*60kN/1*120kN
Certification :
ISO9001
Place of Origin :
China
Packaging Details :
Container
Description

Transmission Line Stringing Equipment 2x70kN Hydraulic Laying Tension Machine

Performance Max intermittent tension 2x70kN
Max continuous tension 2x60kN
Max reverse pulling speed 3km/h
Max reverse pulling force 2*60kN/1*120kN
Max speed 5km/h
Speed at max tension 2.5km/h
Pull at max speed 2x30kN/1x60kN
Characteristics Max conductor diameter 45mm
Total weight 11500kg
Groove number 2x6
Bull-wheel diameter 1700mm
Overall dimension (length*width*height) 5500*2460*2900mm

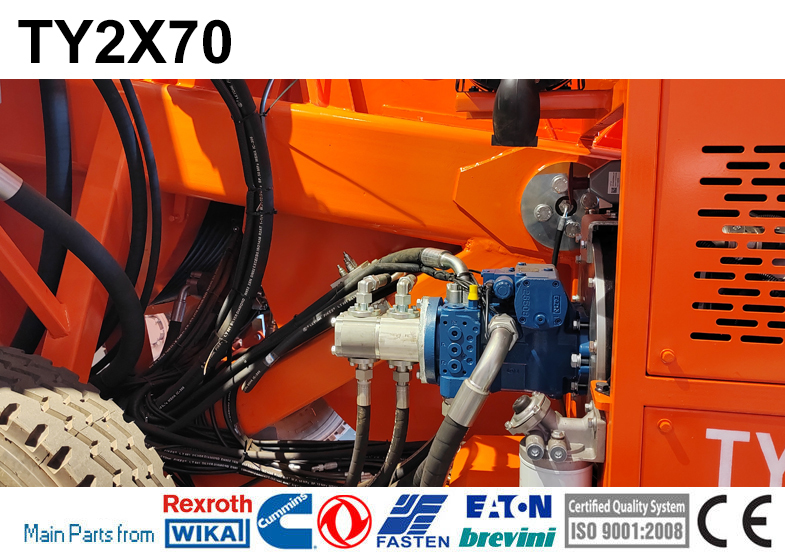

Main configuration Engine Cummins
Speed reducer German Rexroth / Italy Bonfiglioli
Main hydraulic valves USA Sun / Italy ATOS
Hydraulic pump German Rexroth/Dnish Danfoss
Main motor German Rexroth/French Leduc
Engine Diesel 77kw(103hp)
Cooling system water
Electrical system 24V

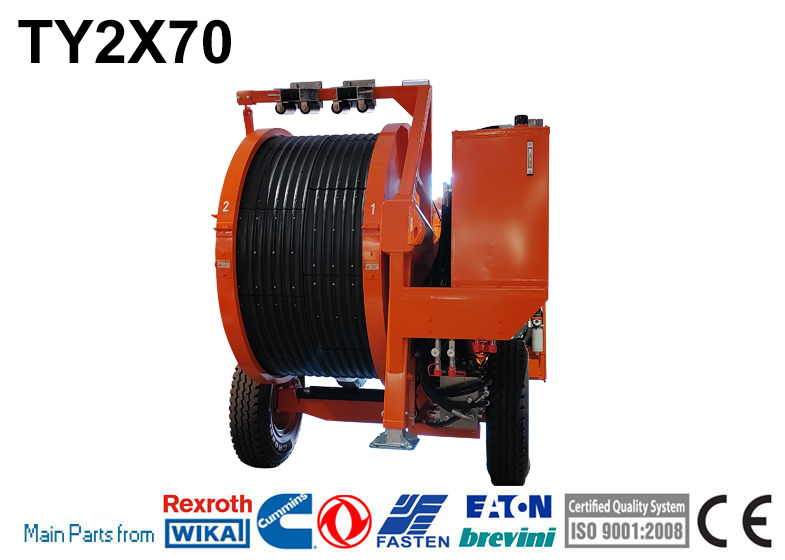

TY2x70 Hydraulic Tensioner

The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;

Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Configuration

2 negative self-acting hydraulic brakes

Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor

Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine

2 digital meter and speed counters

2 hydraulic dynamometers

Rigid axle for towing at max speed of 15km/h with mechanical parking brake

Grounding connection point

Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.

Additional Devices

Digital speed and meter counter
Lighting system for the trailer

Swivel guide rope roller

Trailer for towing at max speed of 15 km/h

2 hydraulic rope/conductor clamp (extra charge)

Air brake system for the trailer (extra charge)
