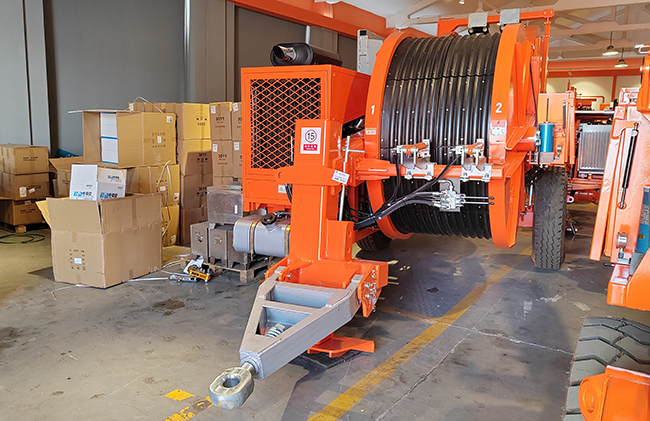

Max Intermittent Tension 2x70kN Hydraulic Tensioner With Conductor Clamp
Max Intermittent Tension 2x70kN Hydraulic Tensioner With Conductor Clamp
Max Intermittent Tension 2x70kN Hydraulic Tensioner With Conductor Clamp
Max Intermittent Tension 2x70kN Hydraulic Tensioner With Conductor Clamp
Specifications
Model Number :
TY2x70-3
Supply Ability :
10Sets/Month
Type :
TY2x70 Hydraulic Cable Tensioner
Brand Name :
HANYU
Payment Terms :
L/C, T/T
Max intermittent tension :
2x70kN
Max reverse pulling force :
2*60kN/1*120kN
Price :
USD79,000-85,000/set
Max reverse pulling speed :
3km/h
MOQ :
1set
Delivery Time :
15-35days
Total weight :
11500kg
Packaging Details :
Container
Max conductor diameter :
45mm
Certification :
ISO9001
Place of Origin :
China
Description

Max Intermittent Tension 2x70kN Hydraulic Tensioner With Conductor Clamp

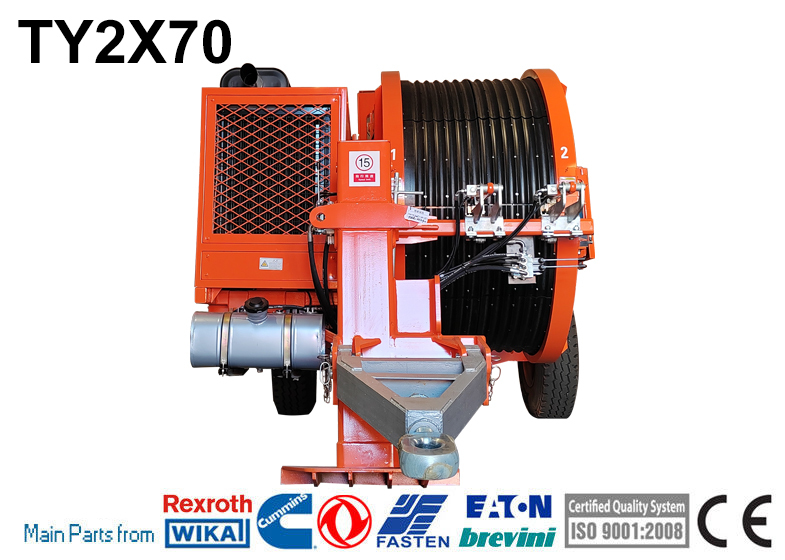

TY2x70 Hydraulic Tensioner
  • The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Max intermittent tension2x70kN
Max continuous tension2x60kN
Max reverse pulling speed3km/h
Pull at max speed2x30kN/1x60kN
Max speed5km/h
Speed at max tension2.5km/h
Max reverse pulling force2*60kN/1*120kN
Max conductor diameter45mm
Bull-wheel diameter1700mm
Total weight11500kg
Groove number2x6
Overall dimension (length*width*height)5500*2460*2900mm
EngineCummins
Speed reducerGerman Rexroth / Italy Bonfiglioli
Main motorGerman Rexroth/French Leduc
Hydraulic pumpGerman Rexroth/Dnish Danfoss
Main hydraulic valvesUSA Sun / Italy ATOS
Diesel77kw(103hp)
Cooling systemwater
Electrical system24V

Configuration
  • 2 negative self-acting hydraulic brakes
  • 2 hydraulic dynamometers
  • Hydraulic oil cooling system
  • 2 digital meter and speed counters
  • Control instruments for hydraulic system and diesel engine
  • Rigid axle for towing at max speed of 15km/h with mechanical parking brake
  • Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
  • Grounding connection point

Hydraulic Transmission
  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.

Additional Devices
  • Lighting system for the trailer
  • 2 hydraulic rope/conductor clamp (extra charge)
  • Swivel guide rope roller
  • Trailer for towing at max speed of 15 km/h
  • Digital speed and meter counter
  • Air brake system for the trailer (extra charge)


Max Intermittent Tension 2x70kN Hydraulic Tensioner With Conductor Clamp
