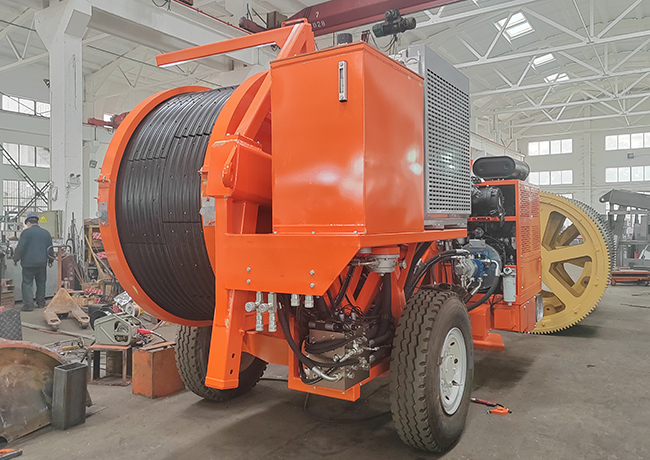

Transmission Line Stringing Equipment TY2x70 Hydraulic Tensioner With Conductor Clamp
Transmission Line Stringing Equipment TY2x70 Hydraulic Tensioner With Conductor Clamp
Transmission Line Stringing Equipment TY2x70 Hydraulic Tensioner With Conductor Clamp
Transmission Line Stringing Equipment TY2x70 Hydraulic Tensioner With Conductor Clamp
Specifications
Model Number :
TY2x70-1
Payment Terms :
L/C, T/T
Max continuous tension :
2x60kN
Overall dimension (length*width*height) :
5500*2460*2900mm
Price :
USD79,000-85,000/set
Max conductor diameter :
45mm
Supply Ability :
10Sets/Month
Max intermittent tension :
2x70kN
Brand Name :
HANYU
MOQ :
1set
Delivery Time :
15-35days
Type :
Hydraulic Tensioner With Conductor Clamp
Packaging Details :
Container
Groove number :
2x6
Certification :
ISO9001
Place of Origin :
China
Description

Transmission Line Stringing Equipment TY2x70 Hydraulic Tensioner With Conductor Clamp

TY2x70 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Performance
Max intermittent tension2x70kN
Max continuous tension2x60kN
Speed at max tension2.5km/h
Max speed5km/h
Pull at max speed2x30kN/1x60kN
Max reverse pulling force2*60kN/1*120kN
Max reverse pulling speed3km/h
Characteristics
Bull-wheel diameter1700mm
Max conductor diameter45mm
Groove number2x6
Total weight11500kg
Overall dimension (length*width*height)5500*2460*2900mm
Main configuration
EngineCummins
Hydraulic pump

German Rexroth/Dnish Danfoss

Main motorGerman Rexroth/French Leduc
Speed reducerGerman Rexroth / Italy Bonfiglioli
Main hydraulic valvesUSA Sun / Italy ATOS
Engine
Diesel77kw(103hp)
Cooling systemwater
Electrical system24V

Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.
Configuration2 negative self-acting hydraulic brakes

2 hydraulic dynamometers

Hydraulic oil cooling system

2 digital meter and speed counters

Control instruments for hydraulic system and diesel engine

Rigid axle for towing at max speed of 15km/h with mechanical parking brake

Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor

Grounding connection point
Additional Devices

Lighting system for the trailer

2 hydraulic rope/conductor clamp (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 15 km/h

Digital speed and meter counter

Air brake system for the trailer (extra charge)
