Specifications
Packaging Details :
Nude package
Price :
Negotiable
Certification :
ISO9001, CCC, ISO/TS16949
Brand Name :
Tourfine
ABS Anti-lock Braking System :
ABS Anti-lock Braking System
Payment Terms :
L/C,T/T
Color :
Red, White, Blue, Yellow, Orange,Green, etc
Model Number :
TF0370
Material :
Steel
Supply Ability :
3000pcs/month
Axle Brand :
Fuwa, BPW etc.
Delivery Time :
30 days
Suspension system :
Mechanical Suspension
MOQ :
1 Piece
Place of Origin :
China
Condition :
New
Description
Product Description


The 70 Ton 3 Axle Low Bed Trailer is designed for transporting excavators, wheel loaders, bulldozers and other construction equipment. Its low deck structure allows machinery to be loaded safely while improving transport stability on long-distance routes.


Built with a reinforced steel frame, the trailer offers excellent strength and durability for demanding construction and mining projects. The 3 axle configuration provides reliable load distribution, helping reduce maintenance costs and tire wear during operation.


This low bed trailer is widely used by construction contractors, equipment rental companies and logistics providers. Different deck lengths, suspension systems and loading ramp options can be customized according to transportation requirements.


Product Parameters

Dimension 12000mm-18000mm*2500mm-3500mm*1650mm Please indicate the working platform height and length.
Loading Capacity 60T/80T/100T/120T
Axle 13 T/16T, FUWA /BPW/AQ
Rim 6.5-20/7.5-20/8.00-20/8.5-20
Tire 8.25R20/10.00R20/11.00R20/12.00R20
Suspension Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
King pin JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg JOST brand D200T or China brand 28Tons (Double speed)
Main beam Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm,down plate is 16mm-25mm ; Material is Q345B Steel .
Side beam 16mm -25mm channel steel ( Material is Q235steel ).
Ladder Manual or Hydraulic type
Gooseneck For choose
Brake chamber WABCO Relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
ABS Optional
Twist Locks Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve WABCO valve
Light LED light
Voltage 24V
Receptacle 7 ways (7 wire harness)
Tool box One piece, 1m*0.5m*0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

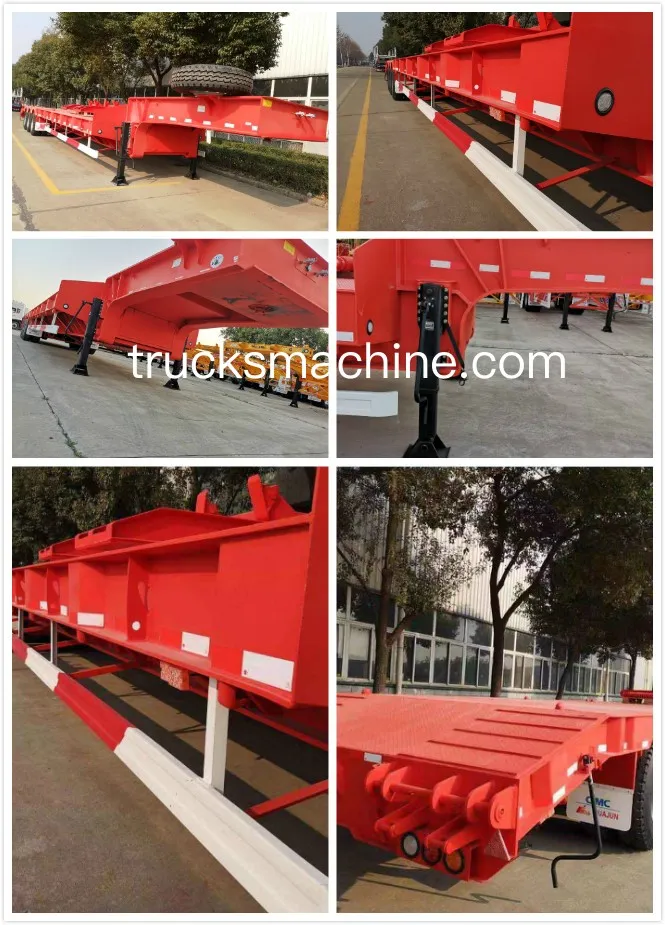

Detailed Photos

3 Axle 70 Ton Low Bed Semi Trailer For Excavator And Wheel Loader Transport

3 Axle 70 Ton Low Bed Semi Trailer For Excavator And Wheel Loader Transport3 Axle 70 Ton Low Bed Semi Trailer For Excavator And Wheel Loader Transport3 Axle 70 Ton Low Bed Semi Trailer For Excavator And Wheel Loader Transport

Packaging & Shipping

3 Axle 70 Ton Low Bed Semi Trailer For Excavator And Wheel Loader Transport

FAQ

Product Description

Beijing Tourfine Import and Export Co. Ltd offers high-quality trailers and trucks that are designed to meet your specific requirements. Our products are suitable for various industries and are built to last.

Key Features:

  • Minimum Order Quantity: One unit
  • Payment Terms: T/T or LC
  • After Sales Service: We provide technical support and spare parts for the long lifespan of our products. Spare parts can be delivered via DHL, ***, UPS, or FedEx.
  • Shipping Methods: Container, Flat rack container, Roro vessel, Bulk vessel
  • Delivery Time: Approximately 7 to 60 days after receiving the deposit
  • Special Requirements: We can manufacture trailers and trucks according to your specific needs
  • Quality Spare Parts: We offer good quality spare parts

Choose Beijing Tourfine Import and Export Co. Ltd for reliable and customized trailers and trucks that meet your industry needs. Contact us today to discuss your requirements!
