Specifications
Packaging Details :
Nude Packing
MOQ :
1 Piece
Brand Name :
Tourfine
Material :
Steel
Model Number :
TF04120
Condition :
New
Supply Ability :
3000 Per Month
Suspension :
Mechanical Suspension
Delivery Time :
30 work days
Relay Valve :
Wabco
Price :
Negotiable
Place of Origin :
China
Axle Brand :
Fuwa,BPW,Aq
Certification :
ISO9001, CCC
Payment Terms :
L/C,T/T
Color :
Ral Color
Description

Product Description

4 Axle Capacity 120 Ton Truck Trailer Heavy Duty Lowboy Low Bed Semi Trailer

The 4 Axle 120 Ton Low Bed Semi Trailer is designed for transporting heavy construction and mining equipment, including excavators, bulldozers, cranes, and wheel loaders.

Equipped with a hydraulic ramp system, it allows fast and safe loading and unloading of oversized machinery. The reinforced steel frame and low deck structure provide excellent stability, durability, and load-bearing performance.

With a payload capacity of up to 120 tons, this low bed semi trailer is an ideal solution for heavy equipment transportation and infrastructure projects. Custom sizes and configurations are available to meet different operational requirements.

Product Parameters

Overall dimension 16800mm*3400*3500mm (Size can be tailored to suit individual needs.)
Loading capacity 120 ton
Axle 4 Units, 13T/16T, FUWA / BPW /AQ/ZY
Suspension Heavy duty mechanical spring suspension
Tire 12 units
Landing gear JOST
Brake system WABCO
King pin JOST 50#/90#
Electical system 24V, LED lights
Main beam height: 500-550mm Upper plate: 16mm-25mm
Middle plate: 12mm-20mm Lower plate: 18mm-25mm
Tire and rim 16 Units, 8.25R20/10.00R20/11.00R20/12R22.5 Triangle , double coin etc. 8.0-20 or 900*22.5
Suspension Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Landing gear JOST brand
Bottom Platform 5 mm thick checkered plate
Ladder spring or hydraulic type
Gooseneck Optional
Twist locks Optional
Valve WABCO valve
Light LED light (specially intended for oversea markets)
Tool box: 1 set
Shipping terms Transported by the bulk carrier or RORO or 40HQ container

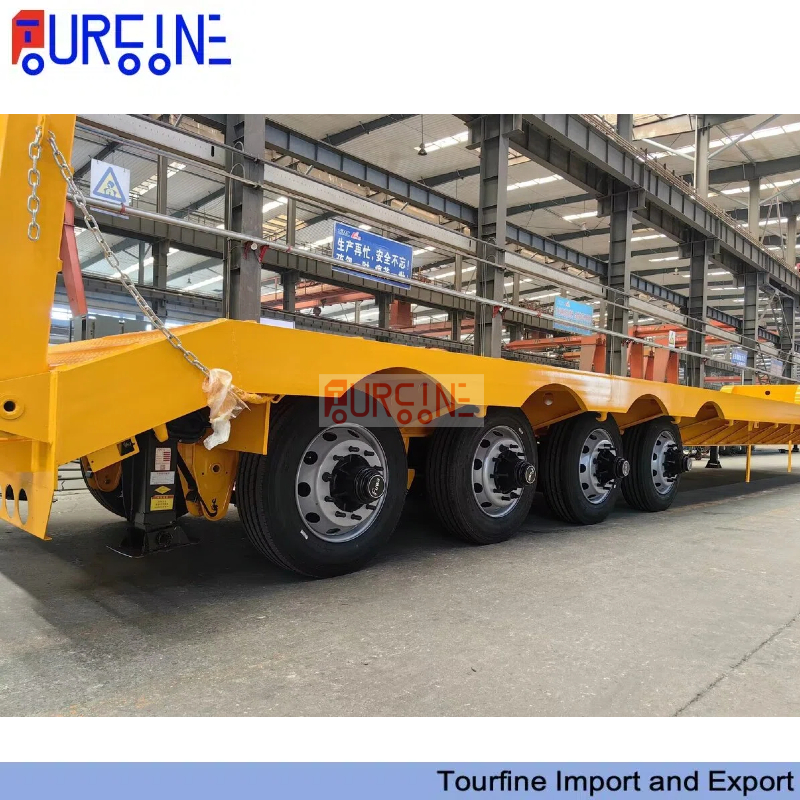

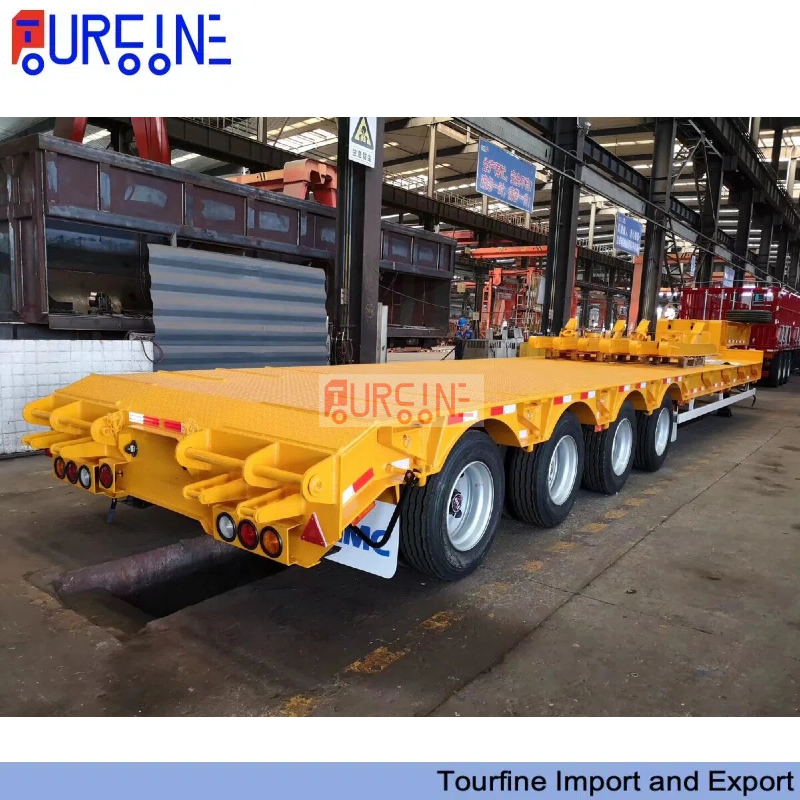

Detailed Photos

4 Axle 120 Ton Low Bed Semi Trailer With Hydraulic Ramp And Reinforced Frame

Packaging & Shipping

4 Axle 120 Ton Low Bed Semi Trailer With Hydraulic Ramp And Reinforced Frame

Successful Case

4 Axle 120 Ton Low Bed Semi Trailer With Hydraulic Ramp And Reinforced Frame

Our workshop

4 Axle 120 Ton Low Bed Semi Trailer With Hydraulic Ramp And Reinforced Frame4 Axle 120 Ton Low Bed Semi Trailer With Hydraulic Ramp And Reinforced Frame

FAQ

Q1: What kind of trailers and trucks does Iourfineoffer?
A:We offer high-quality trailers and trucks, manufactured to meet your specific requirements.

Q2: What payment options do you accept?
A:We accept both Telegraphic Transfer(T/T) and Letter of Credit (LC),providing you with flexibility and convenience.

Q3: What kind of after-sales services do you offer?
A:Our after-sales services are second to none,as we offer technical support and provide spare parts to ensure the long lifespan of our products.

Q4: How do you deliver spare parts?
A:You can rely on us to deliver the spare parts you need through trusted shipping methods such as DHL,UPS,orFedEx.

Q5: What shipping options do you provide?
A:Shipping your order is hassle-free with ourvarious options.We use container,flat rack container, Roll-on/Roll-off (Roro) vessel,and bulk vessel for shipping,ensuring yourproducts are delivered safely and efficiently.

Q6: What is the delivery time for your trailers and trucks?
A:Delivery time ranges from 7 to 60 days after receiving the deposit,giving you a clearidea of when to expect yourorder. Rest assured,we strive to deliver yourproducts in a timely manner.

Welcome to contact

At Beijing Tourfine Import and Export Co. Ltd,we understand that each client is unique, with specific demands and aspirations. That's why we are delighted to offer bespoke solutions, customizing our trailers and trucks to meet your precise specifications. Share your needs with us, and we will adjust our production process to provide the perfect solution tailored just for you.

Our spare parts are crafted to impeccable standards, guaranteeing not just satisfaction but the superior performance and reliability of your trailers and trucks, ensuring they meet and exceed your expectations.

For more information or to start your order,
please don't hesitate to reach out to Beijing Tourfine Import and Export Co. Ltd.
