Specifications
Delivery Time :
30 work days
Axles :
Fuwa/BPW/Chinese brand
ABS :
with
Main Beam :
Q345B steel
Model Number :
TFE0360
Payment Terms :
L/C,T/T
Axles No :
3 Axles
Tyre No :
12 pcs
Supply Ability :
3000 Per Month
Accessories :
One standard tool box
Certification :
ISO9001, CCC, ISO/TS16949
MOQ :
1 Piece
Place of Origin :
China
Packaging Details :
Nude Packing
Support Leg :
JOST C200T brand
Price :
Negotiable
Brand Name :
Tourfine
Handle Joint :
ISO standard
Description

60 Ton 3 Axle Extendable Lowboy Semi Trailer for Construction Machinery

Product Description


The 3 Axle 60 Ton Extendable Low Bed Semi Trailer is designed for transporting oversized construction machinery, agricultural equipment, industrial components, and other heavy cargo that requires additional loading width. Its extendable platform provides greater flexibility, making it suitable for a wide range of heavy-haul transportation applications.


Manufactured from high-strength steel, the reinforced frame delivers outstanding load-bearing capacity, structural stability, and long-term durability. The width extension system allows the trailer deck to expand quickly, accommodating wider equipment while maintaining safe transportation. Equipped with heavy-duty axles, a reliable suspension system, and an efficient braking system, the trailer ensures stable handling and dependable performance on highways and challenging work sites. Multiple cargo lashing points improve load security, while optional hydraulic ramps, hydraulic width extension, and customized deck dimensions are available to meet different transportation requirements. This extendable low bed trailer is an ideal solution for heavy equipment transport, infrastructure projects, and specialized logistics operations.


Product Parameters

Tare Weight
About 10T
Dimension
13000mm*3000mm*1710mm
Loading Capacity (T)
60 T
Axle
13T/16T/20T BPW or FUWA or EAST
Rim
8.00-20 8.5-20
Tire
12R22.5, 11.00R20, 12.00R20, 315/80R22.5
Suspension
Mechanical Spring
Spring leaf
90(W)mm*13(Thick)mm*10 Layer
King pin
2" or 3.5"
Support leg
heavy duty 28ton landing leg
Main beam
Height: 500mm, upper plate is 20mm, middle plate is 10mm,
down plate is 20mm ; Material is Q345B Steel .
Side beam
25# channel steel ( Material is Q235steel ).
Bottom Platform
4mm diamond steel plate
Brake chamber
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; one piece of 45L air tanks (Special for Export market)
ABS
Optional
Valve
WABCO valve
Light
LED light (Special for Export market)
Voltage
24V
Painting
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
To learn more or to place your order,please reach out to Beijing Tourfine Import and Export Co. Ltd

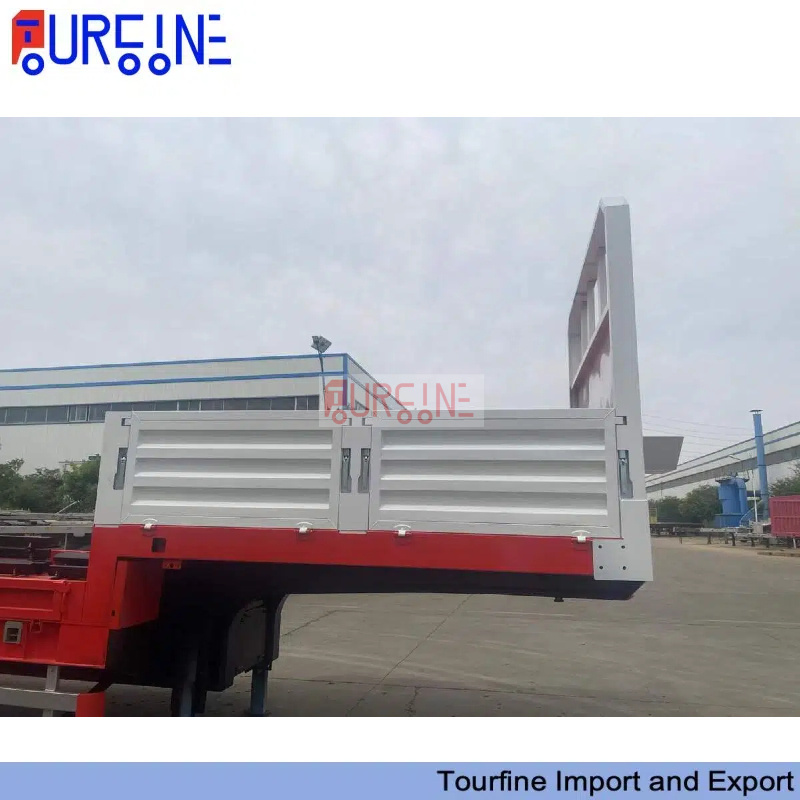

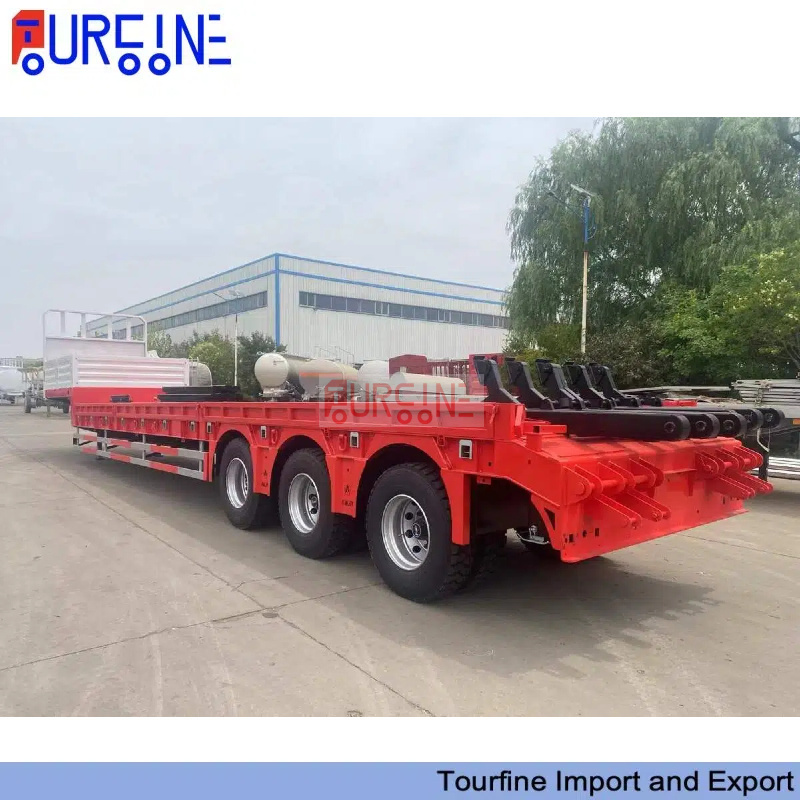

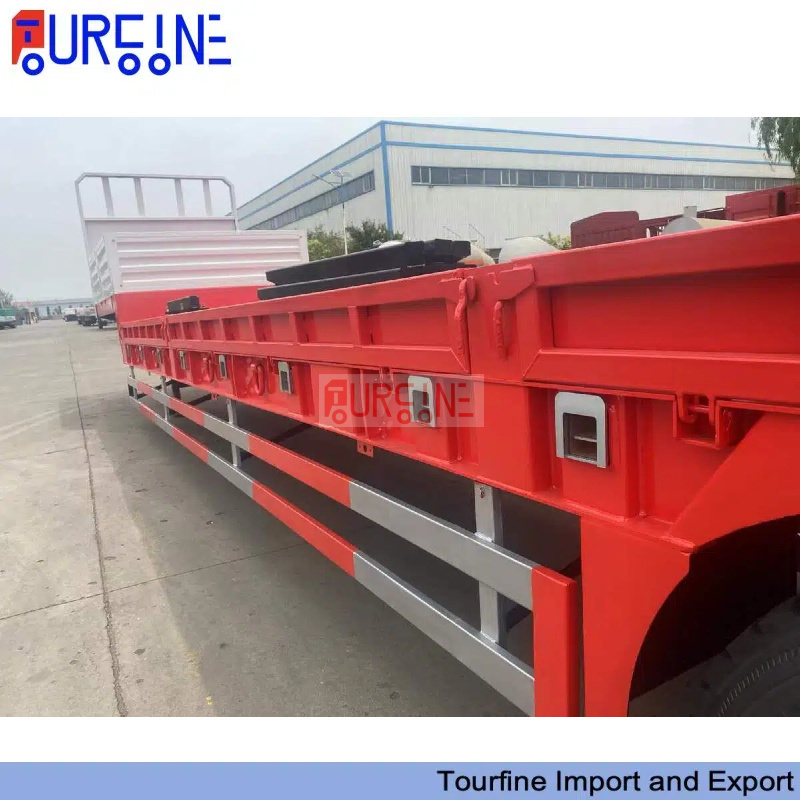

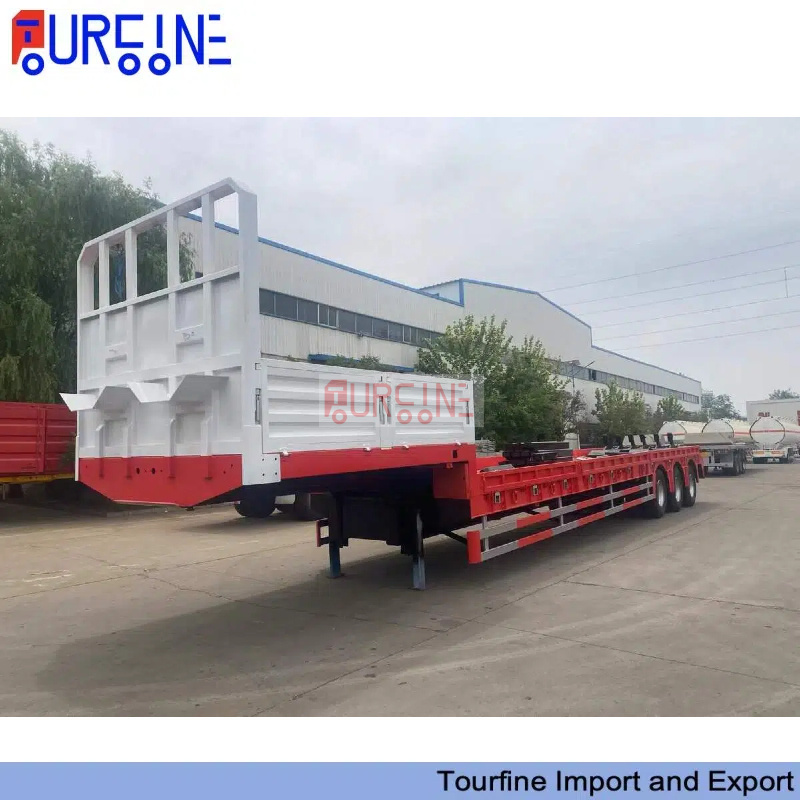

Detailed Photos

60 Ton 3 Axle Extendable Lowboy Semi Trailer for Construction Machinery

Packaging & Shipping

60 Ton 3 Axle Extendable Lowboy Semi Trailer for Construction Machinery

Successful Case

60 Ton 3 Axle Extendable Lowboy Semi Trailer for Construction Machinery

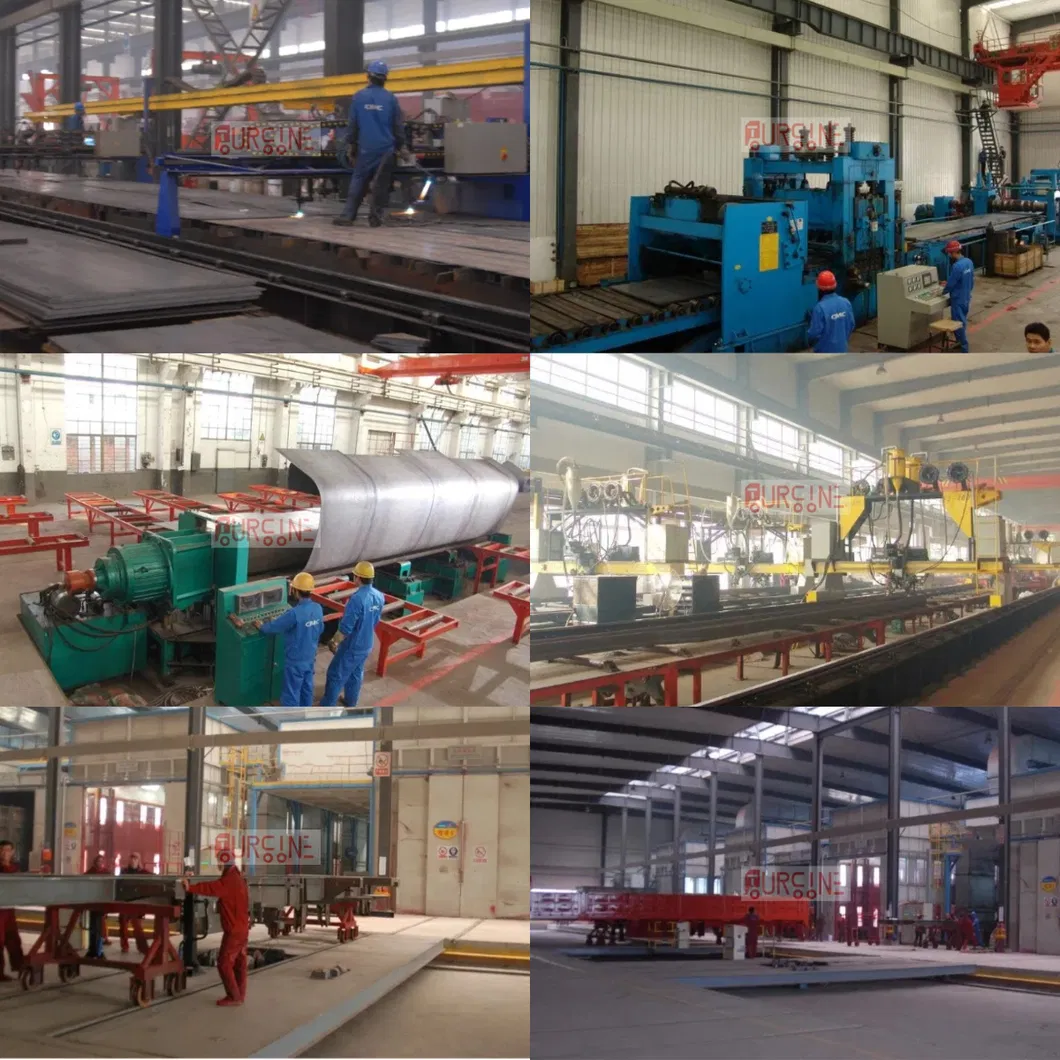

Our workshop

60 Ton 3 Axle Extendable Lowboy Semi Trailer for Construction Machinery

Other trailers

60 Ton 3 Axle Extendable Lowboy Semi Trailer for Construction Machinery60 Ton 3 Axle Extendable Lowboy Semi Trailer for Construction Machinery

FAQ

Q1: What kind of trailers and trucks does tourfine offer?
A:We offer high-quality trailers and trucks, manufactured to meet your specific requirements.

Q2: What payment options do you accept?
A:We accept both Telegraphic Transfer(T/T) and Letter of Credit (LC),providing you with flexibility and convenience.

Q3: What kind of after-sales services do you offer?
A:Our after-sales services are second to none,as we offer technical support and provide spare parts to ensure the long lifespan of our products.

Q4: How do you deliver spare parts?
A:You can rely on us to deliver the spare parts you need through trusted shipping methods such as DHL,UPS,orFedEx.

Q5: What shipping options do you provide?
A:Shipping your order is hassle-free with ourvarious options.We use container,flat rack container, Roll-on/Roll-off (Roro) vessel,and bulk vessel for shipping,ensuring yourproducts are delivered safely and efficiently.

Q6: What is the delivery time for your trailers and trucks?
A:Delivery time ranges from 7 to 60 days after receiving the deposit,giving you a clearidea of when to expect yourorder. Rest assured,we strive to deliver yourproducts in a timely manner.
