Specifications
Model Number :
TF9370
Delivery Time :
30 days
Condition :
New
Place of Origin :
China
Packaging Details :
Nude package
Color :
Red, White, Blue, Yellow, Orange,Green, etc
MOQ :
1 Piece
Certification :
ISO9001, CCC, ISO/TS16949
Price :
Negotiable
Brand Name :
Tourfine
Supply Ability :
3000pcs/month
Suspension Systems :
Mechanical Suspension
Payment Terms :
T/T,L/C
Axle Brand :
Fuwa, BPW etc.
Description
3 Axle 60 Ton Low Bed Semi Trailer For Construction Equipment Transportation
Product Overview

This 3 Axle 60 Ton Low Bed Semi Trailer is engineered to provide reliable performance when moving excavators, bulldozers, wheel loaders, road rollers, and other oversized machinery. The low platform height reduces the center of gravity during transport, helping improve safety and vehicle stability, especially on uneven roads and long-distance routes.

Manufactured with high-tensile steel and reinforced main beams, the trailer offers exceptional resistance to bending and deformation under continuous heavy loads. The robust chassis structure ensures a longer service life while reducing maintenance costs for fleet operators. Equipped with heavy-duty ramps, the trailer allows machinery to be loaded and unloaded quickly, improving work efficiency on construction sites and mining projects.

This model is widely used by transport companies, contractors, equipment rental businesses, and mining operators. Whether operating on highways, rural roads, or challenging worksite environments, the trailer delivers dependable performance and excellent load distribution.

Technical Specifications
Type 3 axles Low bed Semi Trailer
Model TF9370
Dimensions
Length 13,000mm
Width 3,000mm
Overall height 3,300mm
Height of loading platform 1,150mm
Weight
Payload 60,000kg
Tare weight 10,500kg
Frame & Structure
Main beam Material Q700. Fabricated "H" beam height 500mm, Top flange thickness 16mm, Middle web thickness 12mm, Bottom flange thickness 18mm
Side beam 25# fabricated H steel 8mm-8mm-8mm
Platform 4mm thick chequer plate with supporting channel
Kingpin 3.5" bolted type kingpin
Rear ladder 2 pcs Mechanical climbing ramps (with springs)
Welding standard All welding are to be done by qualified welder per applicable national standard
Painting Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 80um
Running Gear
Suspension Standard spring suspension
Leaf spring 6 pcs leaf spring 16mm*90mm*10pcs
Axle 3pcs*16ton capacity Mingyue brand
Brake system Dual line pneumatic brake, with hose and connector
Brake chamber T30/30 spring brake chambers on all axles
Air tank 40L, 2 pcs, China
Emergency relay valve WABCO heavy relay valve
Tire Double coin brand, 825R20, 12pcs
Rim 6.5-20 10 holes ISO, 12 pcs
Landing gear 28T two speed telescopic manual landing gear
Electrical System
Voltage 24 Volt
Receptacle 7 way socket standard, China
Front marker lamp White LED
Side marker lamp White & Red LED
Rear lamp Red LED
Turn signal lamp Amber LED
Reflector Per customer requirement
Accessories
Mud guard Steel mud guard
Tool box 1 pc
*The above dimensions will be adjusted according to the tractor specification.

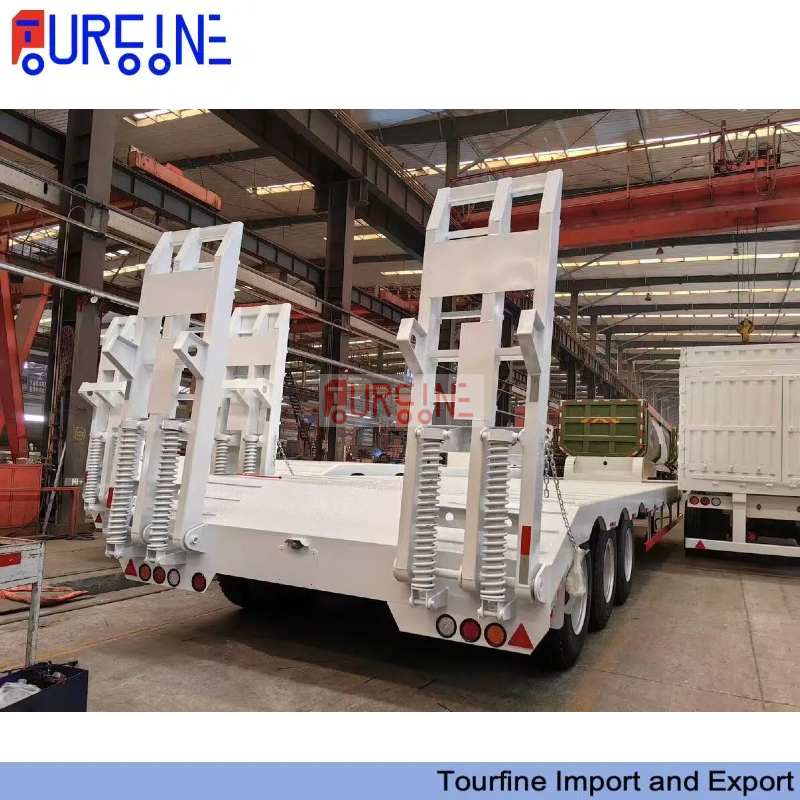

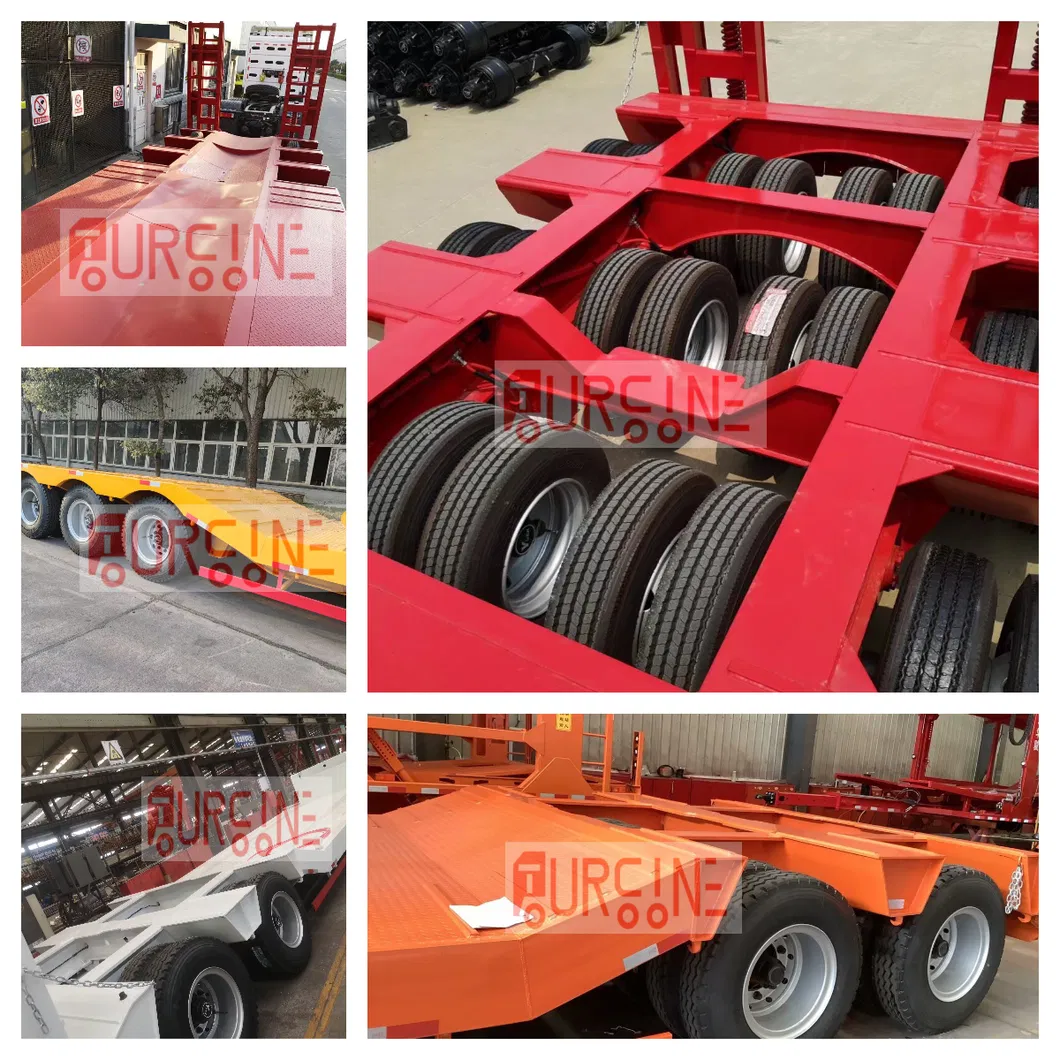

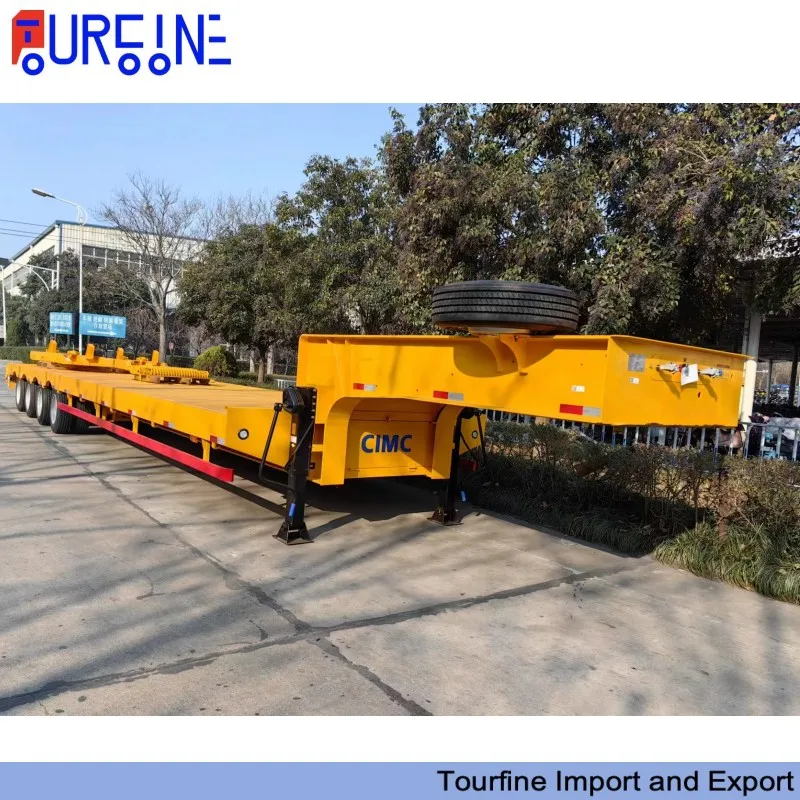

Product Images
Strong Loading 60 Ton 3 Axle Lowbed Trailer For Construction Equipment Transportation Strong Loading 60 Ton 3 Axle Lowbed Trailer For Construction Equipment Transportation Strong Loading 60 Ton 3 Axle Lowbed Trailer For Construction Equipment Transportation

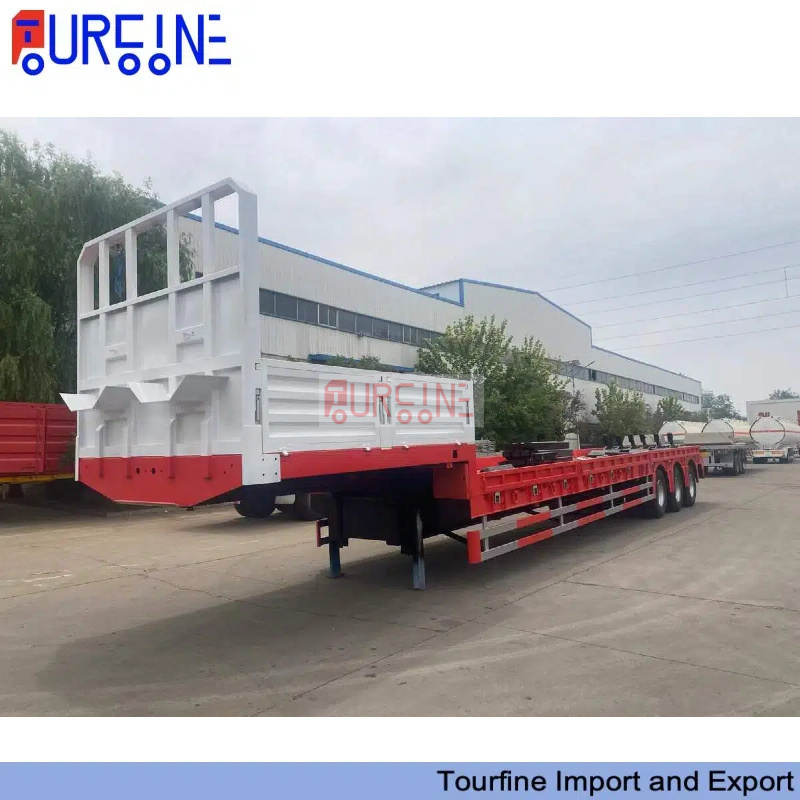

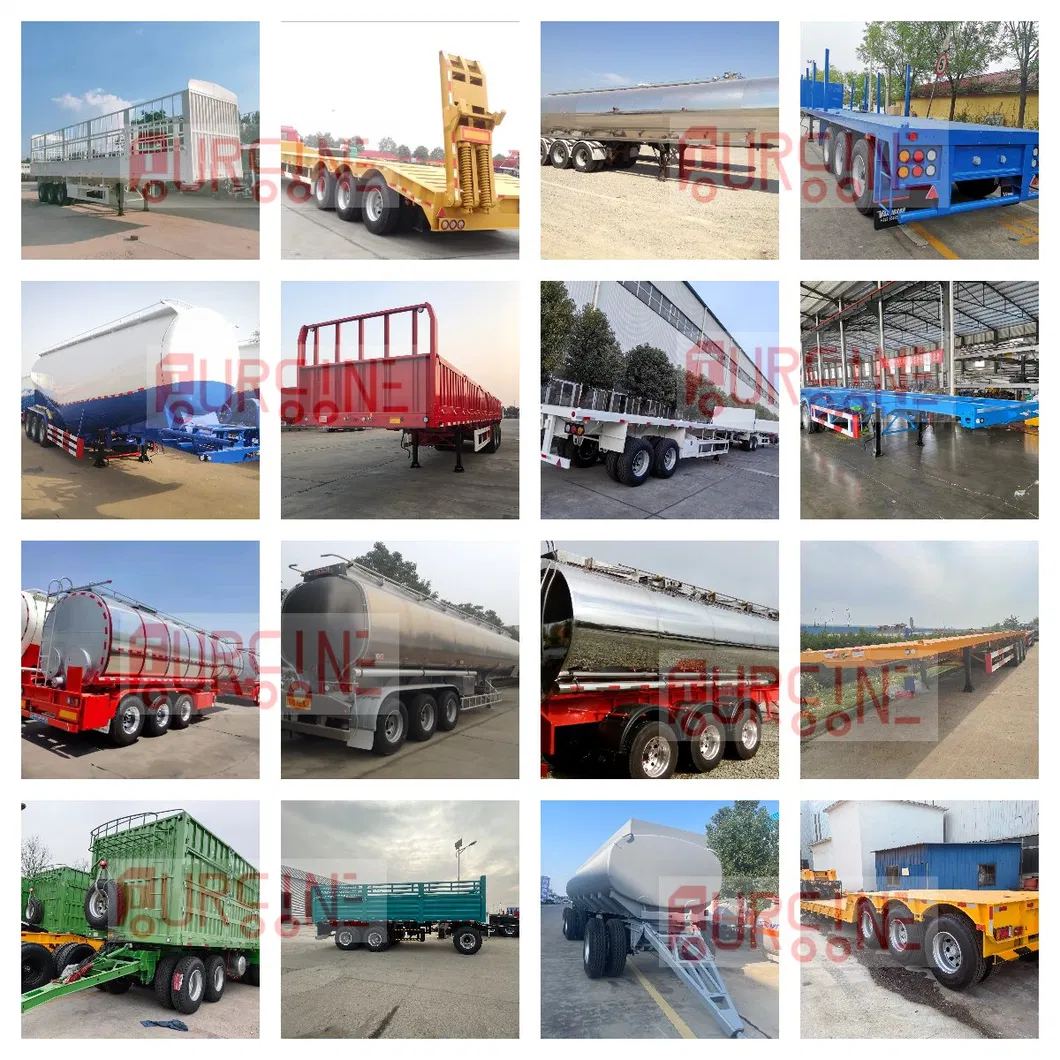

Other Trailers
Strong Loading 60 Ton 3 Axle Lowbed Trailer For Construction Equipment Transportation

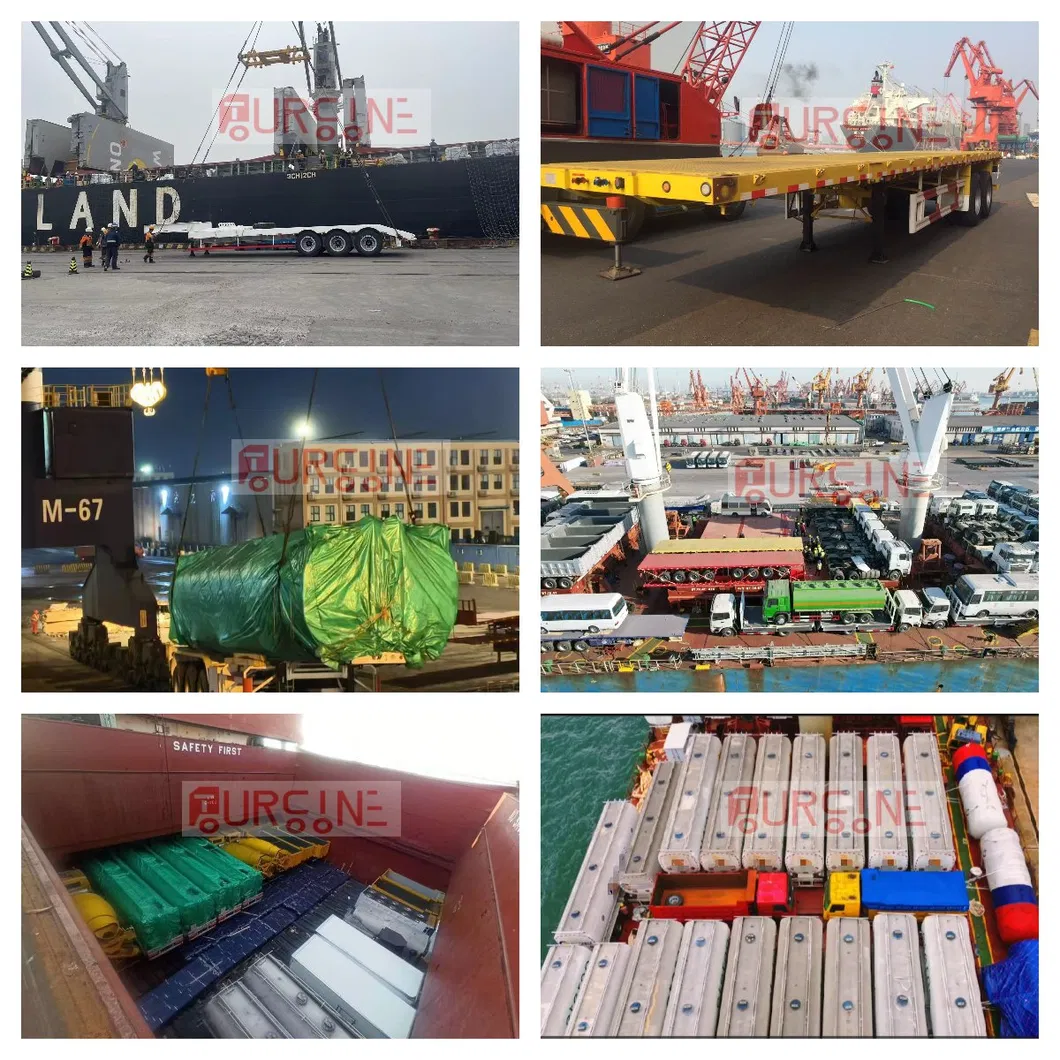

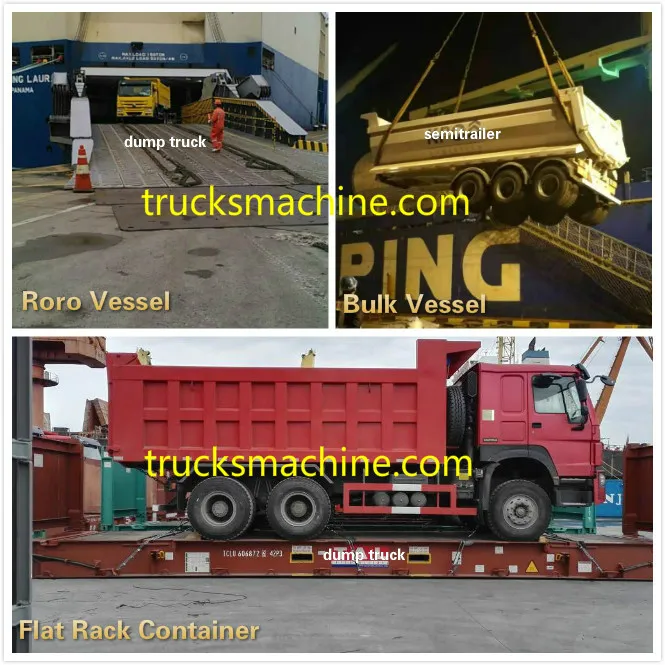

Packaging & Shipping
Strong Loading 60 Ton 3 Axle Lowbed Trailer For Construction Equipment Transportation Strong Loading 60 Ton 3 Axle Lowbed Trailer For Construction Equipment Transportation Strong Loading 60 Ton 3 Axle Lowbed Trailer For Construction Equipment Transportation
Ordering Information
  • Minimum Order Quantity: One unit
  • Payment Terms: T/T or LC
  • After-Sales Service: Technical support and spare parts via DHL, UPS, or FedEx
  • Shipping Methods: Container, Flat rack container, Roro vessel, Bulk vessel
  • Delivery Time: 7 to 60 days after deposit receipt
  • Special Requirements: Tailored manufacturing to your exact specifications

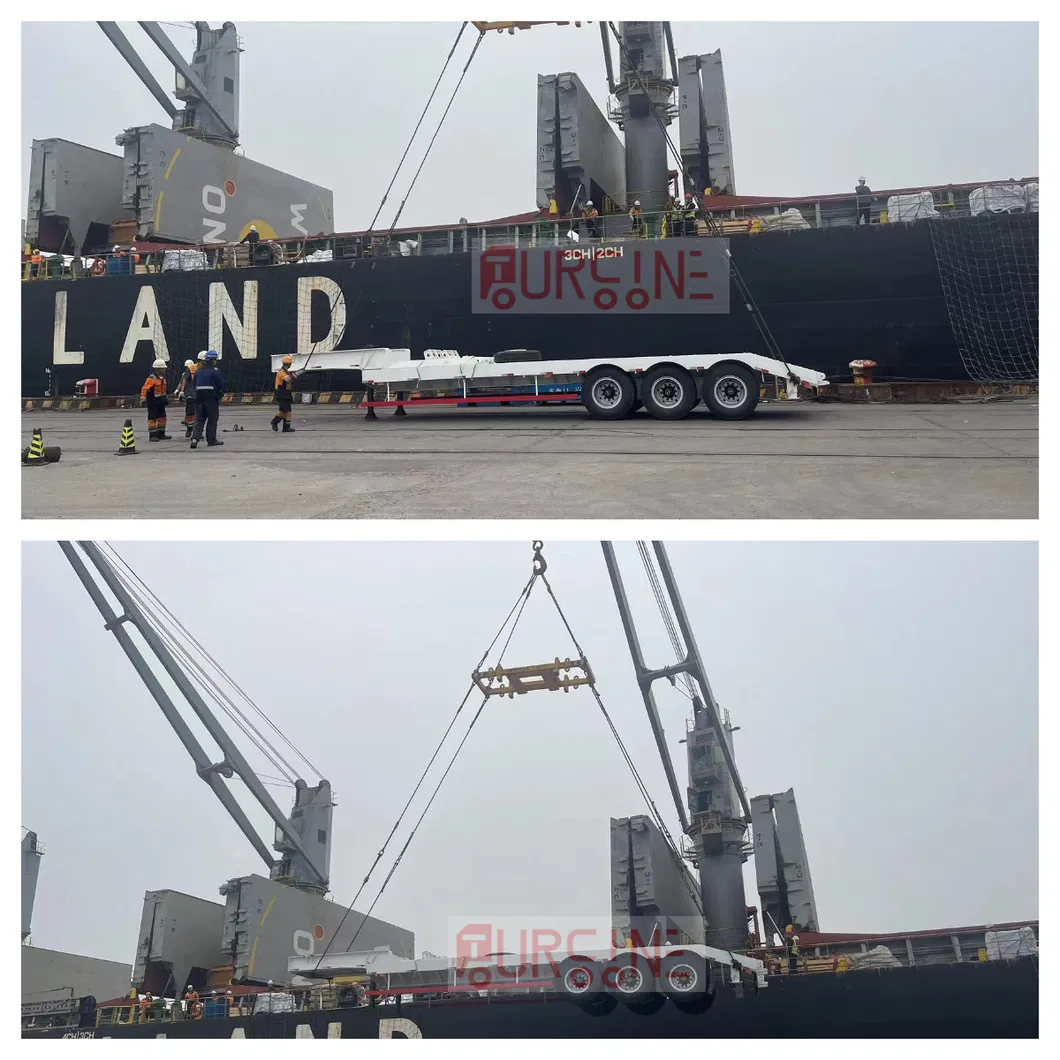

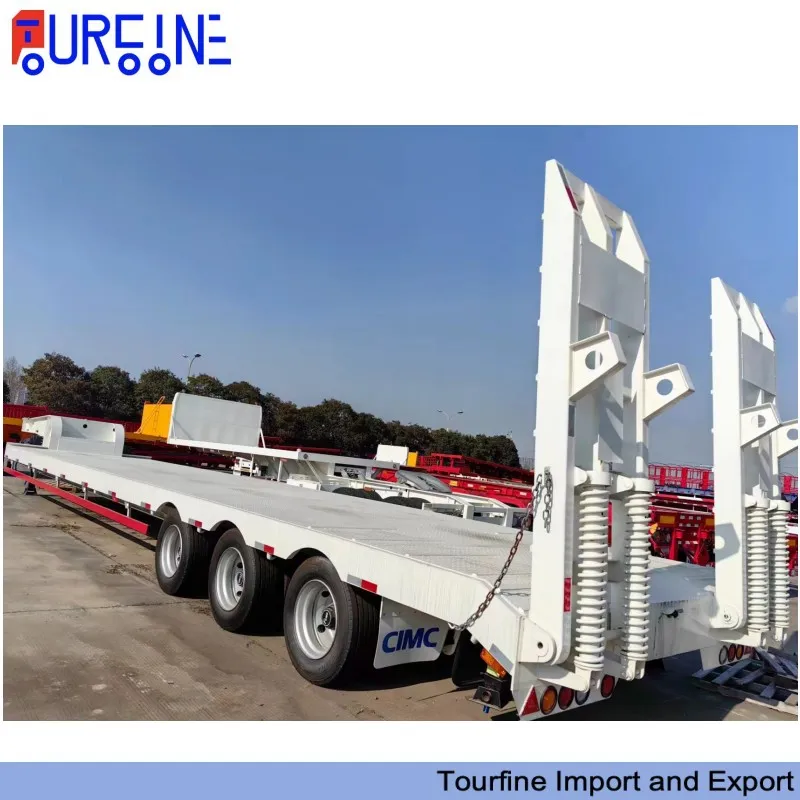

Successful Case
Strong Loading 60 Ton 3 Axle Lowbed Trailer For Construction Equipment Transportation

Our low bed semi-trailer is expertly engineered to manage loads with efficiency and safety. Ideal for transporting construction machinery, excavators, and other substantial equipment.

Crafted with outstanding durability, the low bed design facilitates easy loading and unloading, while the semi-trailer configuration ensures stability throughout the journey.

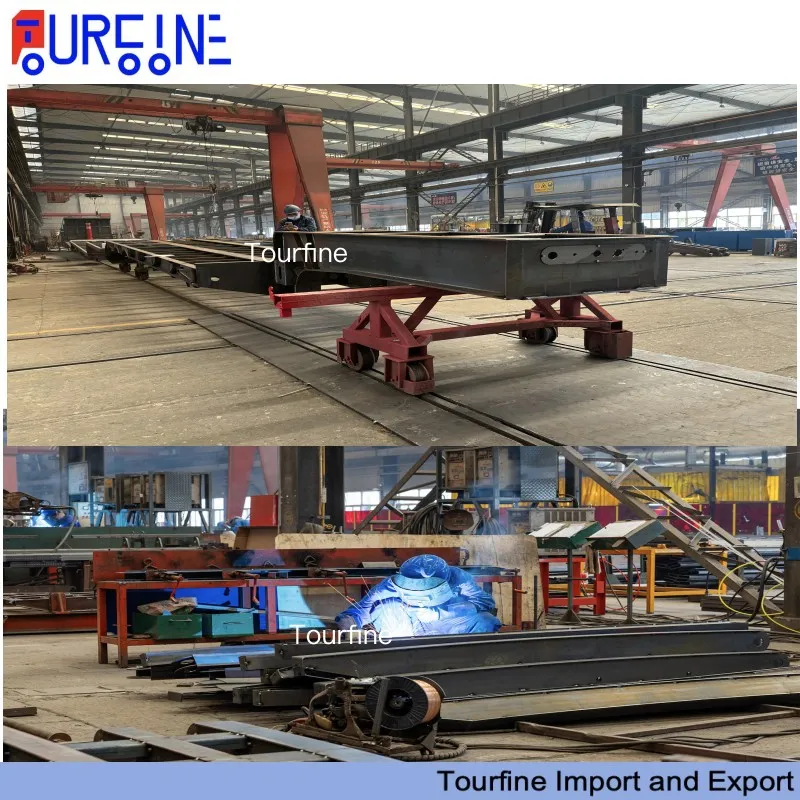

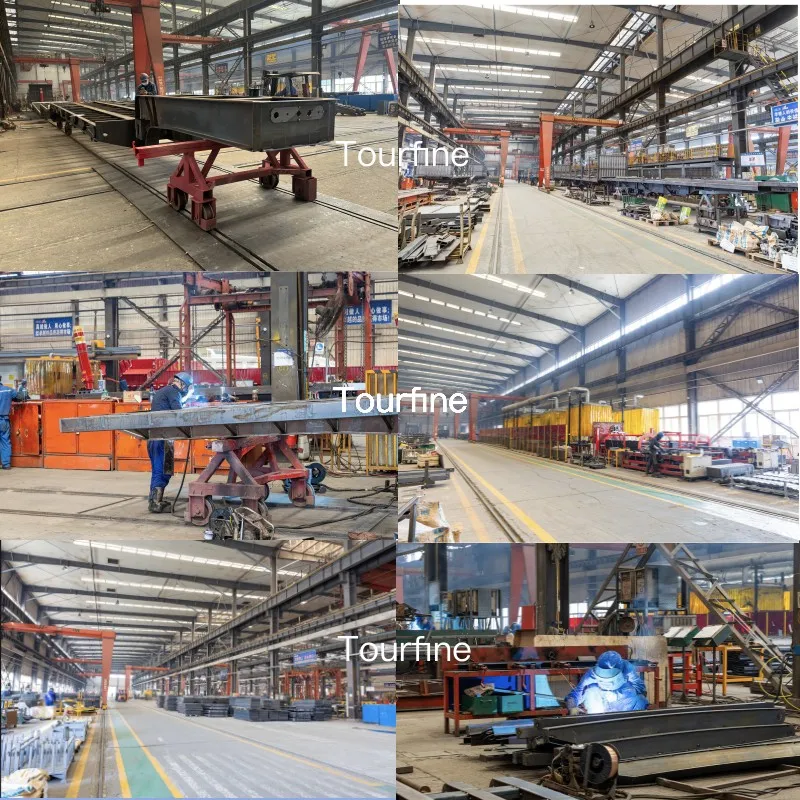

Our Workshop
Strong Loading 60 Ton 3 Axle Lowbed Trailer For Construction Equipment Transportation Strong Loading 60 Ton 3 Axle Lowbed Trailer For Construction Equipment Transportation
Choose Beijing Tourfine Import and Export Co. Ltd for dependable, custom-tailored trailers designed to meet your industry demands. Contact us today!
