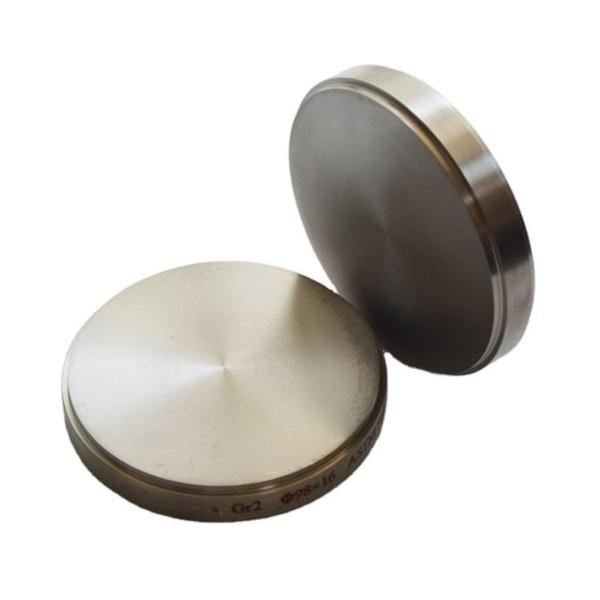

ASTM F67 F136 Medical Dental Titanium Target Alloy Disc Pure Titanium Disc For Dental Implants
ASTM F67 F136 Medical Dental Titanium Target Alloy Disc Pure Titanium Disc For Dental Implants
ASTM F67 F136 Medical Dental Titanium Target Alloy Disc Pure Titanium Disc For Dental Implants
ASTM F67 F136 Medical Dental Titanium Target Alloy Disc Pure Titanium Disc For Dental Implants
ASTM F67 F136 Medical Dental Titanium Target Alloy Disc Pure Titanium Disc For Dental Implants
ASTM F67 F136 Medical Dental Titanium Target Alloy Disc Pure Titanium Disc For Dental Implants
Specifications
Brand Name :
BaseTi
Model Number :
TYP013
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
NO MOQ LIMITATION.
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
12~20 days
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Production standards :
ASTM F136 ASTM F67 (USA), EN ISO 5832-3 EN ISO 5832-2 (Europe)；
Material Grade :
Grade 2，Grade 3，Grade 5
Application Field :
Dental Implants, Crowns, Bridges
Corrosion Resistance :
Excellent, ASTM F2129 compliant
Biocompatibility :
ISO 10993-1 compliant
Mechanical Strength :
950-1000 MPa tensile strength
Diameter and Thickness :
Diameter and Thickness: 98mm x 10-25mm in stock
Ti Disc Tolerance :
+/-0.05 mm or customized
Description

ASTM F67 F136 Medical Dental Titanium Alloy Disc Instock Pure Titanium Disc For Dental Implants, Crowns, Bridges

BaseTi Grade 2,3,5 Dental Titanium Disc Status - Instock NOW
BaseTi - Dental Pure Titanium Disc Inventory
Grade Stock Size Weight(kg)
ASTM Grade 2
ASTM Grade 3		 Φ98mm*10mm 0.34
Φ98mm*12mm 0.41
Φ98mm*14mm 0.48
Φ98mm*16mm 0.54
Φ98mm*18mm 0.61
Φ98mm*20mm 0.68
Φ98mm*22mm 0.75
Φ98mm*24mm 0.82
Φ98mm*25mm 0.85
　
BaseTi - Dental Titanium Alloy Disc Inventory
Grade Stock Size Weight(kg)
ASTM Grade 5
Ti-6Al-4V		 Φ98mm*10mm 0.34
Φ98mm*12mm 0.41
Φ98mm*14mm 0.48
Φ98mm*16mm 0.54
Φ98mm*18mm 0.61
Φ98mm*20mm 0.68
Φ98mm*22mm 0.75
Φ98mm*24mm 0.82
Φ98mm*25mm 0.85

*The dimensions listed in the table above represent the sizes we regularly supply, and we have ample stock available.

*Should you require customized dimensions for your titanium discs, or specific tolerance parameters, we are able to complete production within a swift timeframe of 10 to 15 days.

Grade 2,3,5 Dental Titanium Disc - Guide

BaseTi Unveils Ultimate Guide for Dental Titanium Discs Across Various ASTM Grades


New York, NY – Today, BaseTi, a leading titanium manufacturer and supplier, has released an informative guide targeting international buyers in the dental sector.


Why It Matters
As dental technology advances, the materials used are pivotal for successful outcomes. Dental Titanium Discs are gaining momentum for their blend of durability and biocompatibility. BaseTi's new guide demystifies the various ASTM Grades and how they cater to different dental applications.


The Breakdown on Grades
Navigating the maze of material grades can be overwhelming, especially when compliance with international standards such as ASTM F67, ASTM F136, and EN ISO 5832 is essential.


ASTM Grade 2: The Ideal Choice for Dental Crowns and Bridges
Comprised of pure titanium, ASTM Grade 2 conforms to ASTM F67 and EN ISO 5832-2. It is the material of choice for crafting dental crowns and bridges.


ASTM Grade 3: Perfect for Implant Abutments
A notch above Grade 2, this higher-grade pure titanium is in line with ASTM F67 and EN ISO 5832-2. It is most suited for crafting implant abutments and metal frameworks.


ASTM Grade 5: The Go-To for High-Stress Implants
Also known as Ti6Al4V, this titanium alloy is standardized under ASTM F136 and EN ISO 5832-3. It is engineered for high-stress implants and complex orthodontic devices.


Special Spotlight on BaseTi
BaseTi, the titanium factory, not only serves as a supplier but as an innovator in the field. Their range includes Pure Titanium Dental Discs, Dental Ti Discs, Titanium Dental Milling Discs, and even Dental Implant Discs.


What’s Next?
Understanding the various grades and their dental applications is made simpler with BaseTi's new guide. Whether it's dental crowns, implant abutments, or advanced orthodontic equipment, BaseTi has you covered.


About BaseTi
As a trusted titanium manufacturer, BaseTi offers a wide range of Dental Titanium Alloy Discs to meet the diversified needs of the dental industry. Their commitment to quality and compliance makes them a preferred choice for international buyers.

ASTM F67 F136 Medical Dental Titanium Target Alloy Disc Pure Titanium Disc For Dental Implants
Production Standards for Dental Titanium Disc

Attribute

ASTM Grade 2
ASTM Grade 3

ASTM Grade 5

U.S. Standards

ASTM F67

ASTM F67

ASTM F136

European Standards

EN ISO 5832-2

EN ISO 5832-2

EN ISO 5832-3

Material

Pure Titanium

Pure Titanium (more alloyed than Grade 2)

Titanium Alloy (Ti6Al4V)

Applications

Dental crowns, bridges

Dental implants, abutments

High-load-bearing implants, complex dental prosthetics

Specific Products

Dental Crowns and Bridges, Less-load-bearing dental implants

Dental Implants and Abutments, more load-bearing compared to Grade 2

Complex Dental Prosthetics, High-load-bearing dental implants

Physical Properties of Dental Titanium Discs

The physical properties of dental titanium discs vary depending on the grade of the material and the respective standards they meet. Below is a comprehensive table that encapsulates these vital features:

Attribute ASTM F67 (U.S.) ASTM F136 (U.S.)
EN ISO 5832-2 (EU)
 EN ISO 5832-3 (EU)
Grade Grade 2 Grade 5 Grade 2 Grade 5
Density (g/cm³) 4.51 4.43 4.51 4.43
Tensile Strength (MPa) 345-450 930-1030 345-450 930-1030
Yield Strength (MPa) 275-450 860-880 275-450 860-880
Elongation (%) 20 10-16 20 10-16
Hardness (HV) 120-180 350-440 120-180 350-440

Chemical Properties of Dental Titanium Discs
For a comprehensive understanding of dental titanium discs, it's crucial to explore their chemical properties as well. Below is a table that does just that:

Element
ASTM F67
Grade 2 (%)

ASTM F136

Grade 5 (%)

EN ISO 5832-2

Grade 2 (%)

EN ISO 5832-3

Grade 5 (%)

C

≤ 0.10

≤ 0.08

≤ 0.10

≤ 0.08

O

≤ 0.25

≤ 0.20

≤ 0.25

≤ 0.20

N

≤ 0.03

≤ 0.05

≤ 0.03

≤ 0.05

H

≤ 0.015

≤ 0.012

≤ 0.015

≤ 0.012

Fe

≤ 0.30

≤ 0.25

≤ 0.30

≤ 0.25

Al

--

5.5-6.75

--

5.5-6.75

V

--

3.5-4.5

--

3.5-4.5
