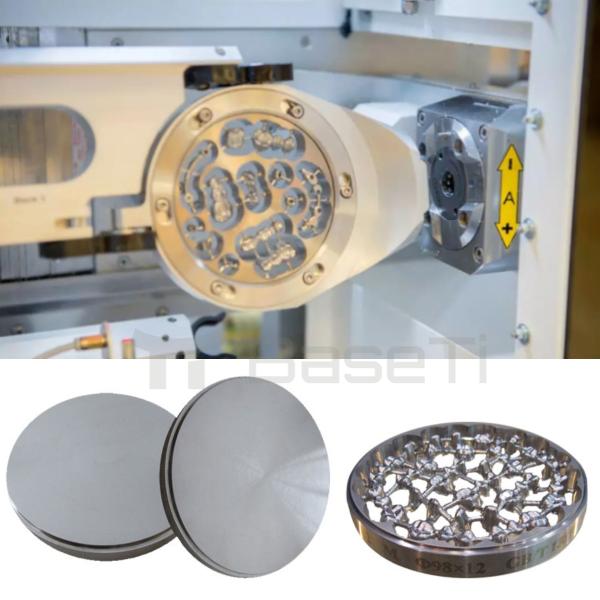

98mm Titanium Disc Medical Dental Grade 2 3 5 For Crowns Bridges
98mm Titanium Disc Medical Dental Grade 2 3 5 For Crowns Bridges
98mm Titanium Disc Medical Dental Grade 2 3 5 For Crowns Bridges
98mm Titanium Disc Medical Dental Grade 2 3 5 For Crowns Bridges
98mm Titanium Disc Medical Dental Grade 2 3 5 For Crowns Bridges
98mm Titanium Disc Medical Dental Grade 2 3 5 For Crowns Bridges
Specifications
Brand Name :
BaseTi
Model Number :
TYP012
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
NO MOQ LIMITATION.
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
12~20 days
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Production standards :
ASTM F136 ASTM F67 (USA), EN ISO 5832-3 EN ISO 5832-2 (Europe)；
Material Grade :
Grade 2，Grade 3，Grade 5
Application Field :
Dental Implants, Crowns, Bridges
Corrosion Resistance :
Excellent, ASTM F2129 compliant
Biocompatibility :
ISO 10993-1 compliant
Mechanical Strength :
950-1000 MPa tensile strength
Diameter and Thickness :
Diameter and Thickness: 98mm x 10-25mm in stock
Ti Disc Tolerance :
+/-0.05 mm or customized
Description

ASTM F136 ASTM F67 Medical Dental Titanium Disc For Implants, Crowns, Bridges Grade 2 3 5, Φ98mm Customized Thickness

BaseTi Grade 2,3,5 Dental Titanium Disc Status - Instock NOW
BaseTi - Dental Pure Titanium Disc Inventory
Grade Stock Size Weight(kg)
ASTM Grade 2
ASTM Grade 3		 Φ98mm*10mm 0.34
Φ98mm*12mm 0.41
Φ98mm*14mm 0.48
Φ98mm*16mm 0.54
Φ98mm*18mm 0.61
Φ98mm*20mm 0.68
Φ98mm*22mm 0.75
Φ98mm*24mm 0.82
Φ98mm*25mm 0.85
　
BaseTi - Dental Titanium Alloy Disc Inventory
Grade Stock Size Weight(kg)
ASTM Grade 5
Ti-6Al-4V		 Φ98mm*10mm 0.34
Φ98mm*12mm 0.41
Φ98mm*14mm 0.48
Φ98mm*16mm 0.54
Φ98mm*18mm 0.61
Φ98mm*20mm 0.68
Φ98mm*22mm 0.75
Φ98mm*24mm 0.82
Φ98mm*25mm 0.85

*The dimensions listed in the table above represent the sizes we regularly supply, and we have ample stock available.

*Should you require customized dimensions for your titanium discs, or specific tolerance parameters, we are able to complete production within a swift timeframe of 10 to 15 days.

Grade 2,3,5 Dental Titanium Disc - Guide

The Comprehensive Guide to Dental Titanium Disc Grades: A Resource for International Buyers

Introduction
When it comes to dental applications, the material used often becomes the cornerstone of success. Specifically, Dental Titanium Discs offer a remarkable mix of biocompatibility and durability. This guide is designed to aid overseas buyers in understanding the distinct grades and how they correlate with specific dental applications.


Decoding Material Grades and Regulatory Standards
Understanding the correct grade is crucial for adhering to dental industry standards. The U.S. standards fall under ASTM F67 and ASTM F136, while European standards are governed by EN ISO 5832-2 and EN ISO 5832-3.


Pure Titanium Dental Disc (ASTM Grade 2)

  • Material: Pure Titanium
  • Standards: ASTM F67, EN ISO 5832-2
  • Application: Ideal for fabricating dental crowns and bridges
  • Featured Brand: BaseTi


Enhanced Pure Titanium (ASTM Grade 3)

  • Material: Higher-grade Pure Titanium
  • Standards: ASTM F67, EN ISO 5832-2
  • Application: Best suited for implant abutments and metal frameworks


Titanium Dental Milling Disc (ASTM Grade 5)

  • Material: Titanium Alloy Ti6Al4V
  • Standards: ASTM F136, EN ISO 5832-3
  • Application: Engineered for high-stress implants and complex orthodontic devices


Specialized Dental Applications
Here's a look at how each grade performs in specialized dental applications:


Dental Crowns and Bridges (ASTM Grade 2)
BaseTi's Grade 2 Pure Titanium Discs are fine-tuned for producing long-lasting dental crowns and bridges with superior milling capabilities.


Implant Abutments (ASTM Grade 3)
ASTM Grade 3 offers a perfect balance of strength and biocompatibility, making it the top choice for dental implant abutments.


High-Stress Implants (ASTM Grade 5)
BaseTi offers Grade 5 Titanium Discs (Ti6Al4V) for applications requiring high mechanical load-bearing capacity, such as specialized implants and advanced orthodontic equipment.


Why Choose BaseTi?
As a leading titanium factory and titanium manufacturer, BaseTi offers a range of Dental Titanium Alloy Discs and Dental Implant Discs to meet various needs in the dental industry.


Navigating through Dental Titanium Disc grades and their applications doesn't have to be complicated. Whether you're interested in dental crowns, implant abutments, or advanced orthodontic equipment, understanding the appropriate grade is key.

98mm Titanium Disc Medical Dental Grade 2 3 5 For Crowns Bridges
Production Standards for Dental Titanium Disc

Attribute

ASTM Grade 2
ASTM Grade 3

ASTM Grade 5

U.S. Standards

ASTM F67

ASTM F67

ASTM F136

European Standards

EN ISO 5832-2

EN ISO 5832-2

EN ISO 5832-3

Material

Pure Titanium

Pure Titanium (more alloyed than Grade 2)

Titanium Alloy (Ti6Al4V)

Applications

Dental crowns, bridges

Dental implants, abutments

High-load-bearing implants, complex dental prosthetics

Specific Products

Dental Crowns and Bridges, Less-load-bearing dental implants

Dental Implants and Abutments, more load-bearing compared to Grade 2

Complex Dental Prosthetics, High-load-bearing dental implants

Physical Properties of Dental Titanium Discs

The physical properties of dental titanium discs vary depending on the grade of the material and the respective standards they meet. Below is a comprehensive table that encapsulates these vital features:

Attribute ASTM F67 (U.S.) ASTM F136 (U.S.)
EN ISO 5832-2 (EU)
 EN ISO 5832-3 (EU)
Grade Grade 2 Grade 5 Grade 2 Grade 5
Density (g/cm³) 4.51 4.43 4.51 4.43
Tensile Strength (MPa) 345-450 930-1030 345-450 930-1030
Yield Strength (MPa) 275-450 860-880 275-450 860-880
Elongation (%) 20 10-16 20 10-16
Hardness (HV) 120-180 350-440 120-180 350-440

Chemical Properties of Dental Titanium Discs
For a comprehensive understanding of dental titanium discs, it's crucial to explore their chemical properties as well. Below is a table that does just that:

Element
ASTM F67
Grade 2 (%)

ASTM F136

Grade 5 (%)

EN ISO 5832-2

Grade 2 (%)

EN ISO 5832-3

Grade 5 (%)

C

≤ 0.10

≤ 0.08

≤ 0.10

≤ 0.08

O

≤ 0.25

≤ 0.20

≤ 0.25

≤ 0.20

N

≤ 0.03

≤ 0.05

≤ 0.03

≤ 0.05

H

≤ 0.015

≤ 0.012

≤ 0.015

≤ 0.012

Fe

≤ 0.30

≤ 0.25

≤ 0.30

≤ 0.25

Al

--

5.5-6.75

--

5.5-6.75

V

--

3.5-4.5

--

3.5-4.5
