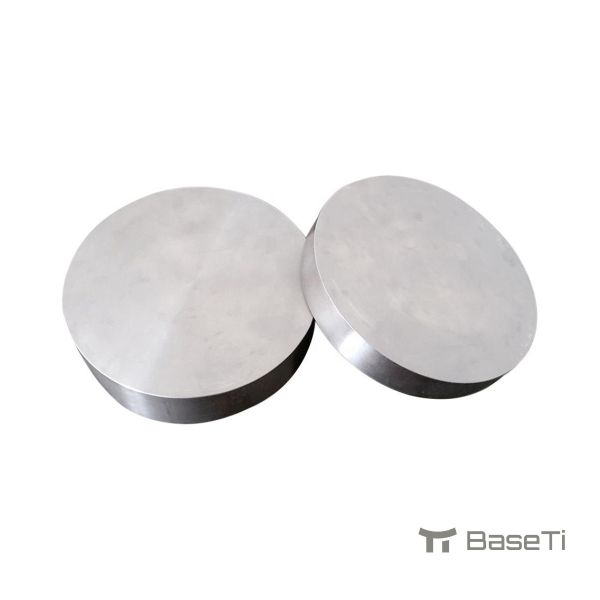

98mm X 20mm 22mm 24mm Titanium Disk ASTM F136 Gr 5 Ti6Al4V Medical For Implants Crowns
98mm X 20mm 22mm 24mm Titanium Disk ASTM F136 Gr 5 Ti6Al4V Medical For Implants Crowns
98mm X 20mm 22mm 24mm Titanium Disk ASTM F136 Gr 5 Ti6Al4V Medical For Implants Crowns
98mm X 20mm 22mm 24mm Titanium Disk ASTM F136 Gr 5 Ti6Al4V Medical For Implants Crowns
98mm X 20mm 22mm 24mm Titanium Disk ASTM F136 Gr 5 Ti6Al4V Medical For Implants Crowns
98mm X 20mm 22mm 24mm Titanium Disk ASTM F136 Gr 5 Ti6Al4V Medical For Implants Crowns
Specifications
Brand Name :
BaseTi
Model Number :
TYP006
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
NO MOQ LIMITATION.
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
12~20 days
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Material Grade :
(USA)ASTM Grade 5, (Europe)Ti6Al4V
Application Field :
Dental Implants, Crowns, Bridges
Production standards :
ASTM F136 (USA), EN ISO 5832-3 (Europe)
Ti Disc Tolerance :
+/-0.05 mm or customized
Biocompatibility :
ISO 10993-1 compliant
Mechanical Strength :
950-1000 MPa tensile strength
Diameter and Thickness :
Diameter and Thickness: 98mm x 10-25mm in stock
Corrosion Resistance :
Excellent, ASTM F2129 compliant
Description

Φ98mm*20mm 22mm 24mm ASTM F136 Gr 5,Titanium Alloy Disc, EN ISO 5832-3 Ti6Al4V Medical Titanium Disk For Implants Crowns

BaseTi Titanium Alloy Disc Status - Instock NOW
BaseTi - Dental Pure Titanium Disc Inventory
Grade Stock Size Weight(kg)
ASTM Grade 2
ASTM Grade 3		 Φ98mm*10mm 0.34
Φ98mm*12mm 0.41
Φ98mm*14mm 0.48
Φ98mm*16mm 0.54
Φ98mm*18mm 0.61
Φ98mm*20mm 0.68
Φ98mm*22mm 0.75
Φ98mm*24mm 0.82
Φ98mm*25mm 0.85
　
BaseTi - Dental Titanium Alloy Disc Inventory
Grade Stock Size Weight(kg)
ASTM Grade 5
Ti-6Al-4V		 Φ98mm*10mm 0.34
Φ98mm*12mm 0.41
Φ98mm*14mm 0.48
Φ98mm*16mm 0.54
Φ98mm*18mm 0.61
Φ98mm*20mm 0.68
Φ98mm*22mm 0.75
Φ98mm*24mm 0.82
Φ98mm*25mm 0.85

*The dimensions listed in the table above represent the sizes we regularly supply, and we have ample stock available.

*Should you require customized dimensions for your titanium discs, or specific tolerance parameters, we are able to complete production within a swift timeframe of 10 to 15 days.

Dental Titanium Alloy Disc - SOLUTIONS

The Pivotal Role of Dental Titanium Alloy Discs in Modern Dentistry

In the evolving world of dentistry, Dental Titanium Alloy Discs have emerged as a critical material for various applications. Crafted to meet the highest quality standards—ASTM Grade 5 in the United States and Ti6Al4V in Europe—these discs are indispensable in the dental medical sector.

  • Aligning with Industry Standards: ASTM F136 and EN ISO 5832-3

A primary reason for the widespread adoption of dental titanium discs is their compliance with international production standards. The ASTM F136 and EN ISO 5832-3 standards assure the highest quality, precision, and safety in dental applications. When sourcing from a titanium supplier, make sure they adhere to these standards. Companies like BaseTi, a leading titanium manufacturer, produce discs meeting these stringent requirements.

  • Unmatched Solutions in Dental Care

Dental Implants:

Dental Implant Discs made from titanium alloys provide unmatched durability and biocompatibility. These discs have been successfully used in dental surgeries, resulting in less inflammation and quicker healing times.

Milling Procedures:

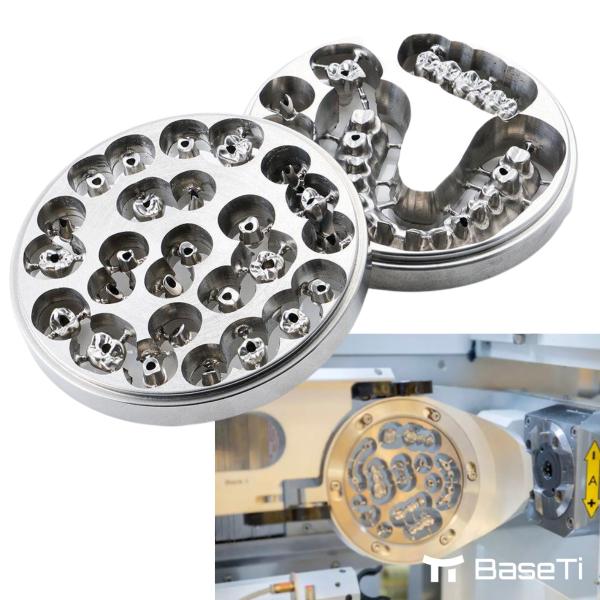

Titanium Dental Milling Discs allow for precise cuts, making them invaluable for procedures requiring minute adjustments.

Orthodontic Brackets:

Dental Ti Discs have increasingly found use in creating durable, bio-safe brackets for braces.

  • Case Studies in Medical Dentistry

For instance, a well-known dental clinic in New York adopted Dental Titanium Alloy Discs from BaseTi for their implant surgeries. They reported a significant reduction in post-operative complications, attributing it to the superior quality of the material.

Choose the Right Supplier
Your choice of titanium supplier could be the difference between success and failure in dental applications. Always look for a reputable titanium manufacturer like BaseTi, which ensures its products meet all industry standards from its in-house titanium factory.


In summary, Dental Titanium Alloy Discs offer unprecedented advantages in various dental applications, setting the gold standard in both quality and performance.

98mm X 20mm 22mm 24mm Titanium Disk ASTM F136 Gr 5 Ti6Al4V Medical For Implants Crowns
Dental Titanium Alloy Disc - OVERVIEW

*If you have any requirements for customized dental titanium disc, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.

Titanium disc&disk specifications & parameters

Product name

Medical dental titanium disc

Application field

Dental Implants, Crowns, Bridges

Sterilizability

Autoclavable

Milling Compatibility

Compatible with most CAD/CAM systems

Diameter and Thickness

98mm x 12-25mm common

Surface Finish

Ra<0.5 µm

Corrosion Resistance

Excellent, ASTM F2129 compliant

Mechanical Strength

950-1000 MPa tensile strength

Biocompatibility

ISO 10993-1 compliant

Ti Disc Tolerance

+/-0.05 mm

Key words

Dental Titanium Disc

Dental Titanium Disk

Dental Ti Disc

Titanium Dental Milling Disc

Ti Dental Milling Disc

Dental Titanium Alloy Disc

Dental Implant Disc

Production Standards for Dental Titanium Disc

Implementation Standard
Application Fields

Specific Products

ASTM F136 (USA)
Dental Implants, Dental Crowns
BaseTi Dental Implant Disc, BaseTi Crown Disc
EN ISO 5832-3 (Europe)

Dental Implants, Dental Bridges

BaseTi Implant Disc EU, BaseTi Bridge Disc EU

  • ASTM F136 (USA)

This standard is prevalent in the United States and is commonly adopted by leading titanium suppliers and manufacturers. Under this regulation, dental titanium discs are widely used in:

Dental Implants: BaseTi Dental Implant Disc offers a solution that has a tensile strength of approximately 950-1000 MPa, perfect for dental implants that require robust and durable materials.

Dental Crowns: BaseTi Crown Disc is explicitly designed for crowns, providing excellent corrosion resistance and mechanical strength.

  • EN ISO 5832-3 (Europe)

The European counterpart, EN ISO 5832-3, equally sets high bars for the quality of dental titanium discs. The application fields under this standard typically include:

Dental Implants: The BaseTi Implant Disc EU adheres to the stringent European guidelines, ensuring excellent biocompatibility.

Dental Bridges: For those looking to get dental bridges, BaseTi Bridge Disc EU offers a trusted and quality solution.

Physical Properties of Dental Titanium Discs

Standard

Material Grade

Density (g/cm³)
Tensile Strength (MPa)
Elongation (%)
Young's Modulus (GPa)
Hardness (HV)
ASTM F136 (USA)
Grade 5
4.43
950-1000
14
110
330-360
EN ISO 5832-3 (Europe)
Ti6Al4V
4.42
930-980
15
115
320-350

The density, tensile strength, elongation, Young's Modulus, and hardness are all critical indicators of the material's capability for dental applications. These physical characteristics determine not only the material's suitability for dental implants, crowns, or bridges but also its long-term stability.

Chemical Properties of Dental Titanium Discs

Element (Abbreviation)

ASTM F136 (USA) % by weight
EN ISO 5832-3 (Europe) % by weight

Titanium (Ti)

Balance

Balance

Aluminum (Al)

5.5 - 6.5

5.5 - 6.5

Vanadium (V)

3.5 - 4.5

3.5 - 4.5

Oxygen (O)

≤ 0.2

≤ 0.2

Nitrogen (N)

≤ 0.05

≤ 0.05

Carbon (C)

≤ 0.08

≤ 0.08

Iron (Fe)

≤ 0.3

≤ 0.25

Significance of Each Element:

  • Titanium (Ti): The primary element providing excellent biocompatibility and corrosion resistance.

  • Aluminum (Al): Enhances the alloy’s mechanical strength.

  • Vanadium (V): Improves mechanical properties and stability.

  • Oxygen, Nitrogen, Carbon: Present in trace amounts; contribute minimally but are necessary for structural integrity.

  • Iron (Fe): Usually a trace element that impacts magnetic properties and is kept to a minimum to avoid undesired reactions.

The chemical components meet the stringent requirements of international standards, making these discs optimal for dental implant applications. Dental titanium alloy discs are perfect for a range of dental solutions, from Dental Ti Disc to Titanium Dental Milling Disc.

98mm x 20mm titanium disk

98mm x 22mm titanium disk

titanium gr5 For Implants Crowns
