Specifications
Condition :
New
Spindle Taper :
BT50
No. of Spindles :
Single
Type :
VERTICAL
Dimension(L*W*H) :
3820x2600x3100mm
Weight (T) :
10 T
Table Size (mm) :
1360x700
CNC Control System :
FANUC
Number of Axes :
3
Table Travel (X) (mm) :
1300
Table Travel (Y) (mm) :
700
Table Travel (Z) (mm) :
700
Positioning Accuracy (mm) :
±0.008
Repeatability (X/Y/Z) (mm) :
±0.006
Range of Spindle Speed(r.p.m) :
1 - 6000 r.p.m
Spindle Motor Power(kW) :
15/18.5
Max. Table Load(kg) :
1200 kg
Feed Speed(mm/min) :
1 - 10000 mm/min
Min. Time of Tool Change(s) :
3
Tool Magazine Capacity :
24
Key Selling Points :
Flexible Manufacturing
Warranty :
1 Year
Place of Origin :
Henan, China
Brand Name :
TIMAC TIMEWAY
Voltage :
Customer's Requirement
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Machine color :
As contract
Machine T-slots :
5-18-152.5
X/Y-axis rails :
Roller Linear rails
Z-axis rail :
Sliding rail
Machine Type :
Big scale CNC machining center
Controlling Mode :
CNC system
ATC style :
Disc-type
ATC capacity :
24tools
Z-axis balancing system :
Heavy casting
After-sales Service Provided :
Online support
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location :
Canada, United States, Italy, Germany, Mexico, Russia, Spain, South Africa, Ukraine, Uzbekistan, Australia
Rapid Feed Speed(m/min) :
24/24/15
Core Components :
FANUC CNC system
Packaging Details :
Pallet or wooden case
Port :
China port
Supply Ability :
100 Set/Sets per Month
Price :
$120,000.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Products Description

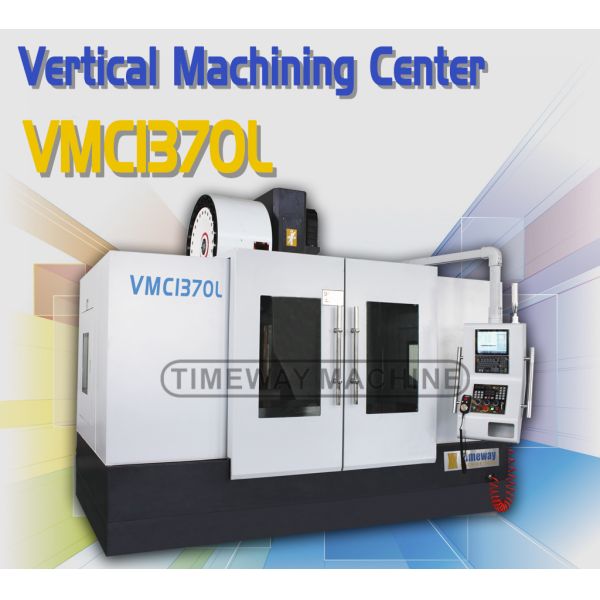

Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Applications of the CNC vertical machining center:
The VMC series vertical milling machine is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis).
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Specification
Unit
VMC1370L
X/Y/Z-axis guideway type
/
X/Y: Linear guide rail, Z: Sliding guide rail
Capacity
X-axis travel
mm
1300
Y-axis travel
mm
700
Z-axis travel
mm
700
Table
Table size
mm
1360×700
Loading capacity
kg
1200
T-slots (No./width/pitch)
mm
5-18-152.5
Distance spindle nose to table center
mm
140-840
Spindle
Distance spindle center to column
mm
785
Spindle taper
/
BT-50 (155)
Spindle speed
r/min
6000
Main motor power
kw
15/18.5
3-axis (X/Y/Z)
X/Y/Z-axis servo motor power (MITSUBISHI)
kw
3/3/3
X/Y/Z-axis servo motor (FANUC)
Nm
β22/β22/β30
X/Y/Z-axis rapid feed speed
m/min
24/24/15
X/Y/Z-axis cutting feed speed
mm/min
0-10000
Accuracy
X/Y/Z-axis positioning accuracy
mm
±0.008
X/Y/Z-axis repeat positioning accuracy
mm
±0.006
Tool magazine (ATC)
ATC style
/
Disc
ATC capacity
tools
24
Tool change time (tool to tool)
sec
2.4
Max. tool weight
kg
18
Max. tool diameter
mm
Φ112/Φ200 (Empty)
Max. tool length
mm
300
Others
Power supply
KVA
30
Air pressure require
kg/cm2
6-8
Z-axis balancing system
/
Heavy casting
Machine weight
kg
10000
Overall dimension (LxWxH)
mm
3820×2600×3100
CNC system
/
FANUC/MITSUBISHI
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
√ FANUC 0i MF CNC system
√ X/Y: Linear guide rails, Z: Sliding guide rail
√ Taiwan BT50 spindle, 6000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

_ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system

Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Machine Details
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
========================

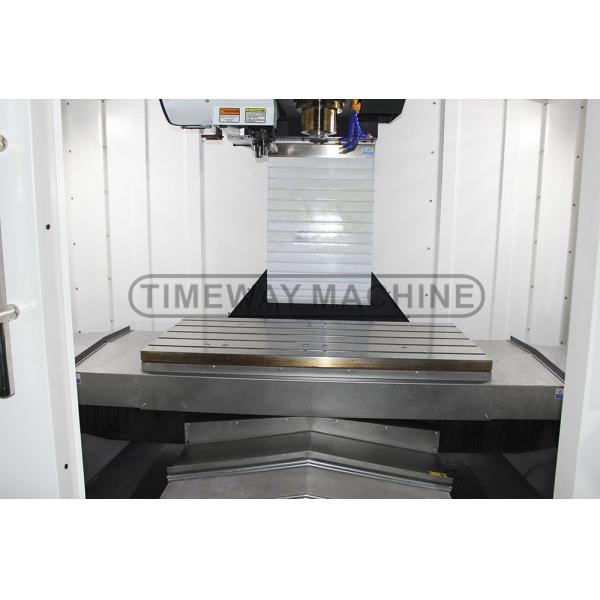

>> Hardened and fine ground worktable surface make sure high rigidity.
>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================

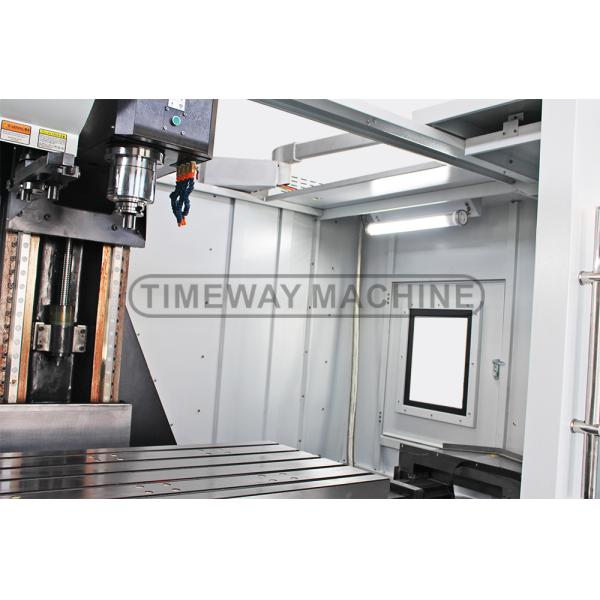

>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
========================

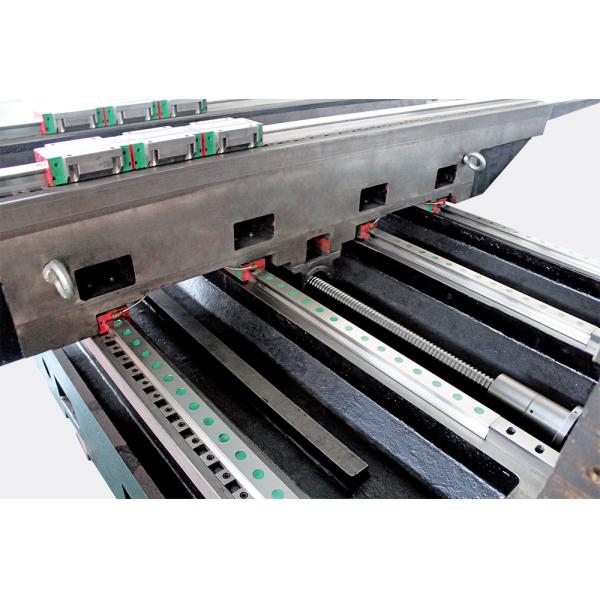

>> Y-axis adopts 4-rails support and 4pcs. roller linear guide rails, large loading capacity.
========================

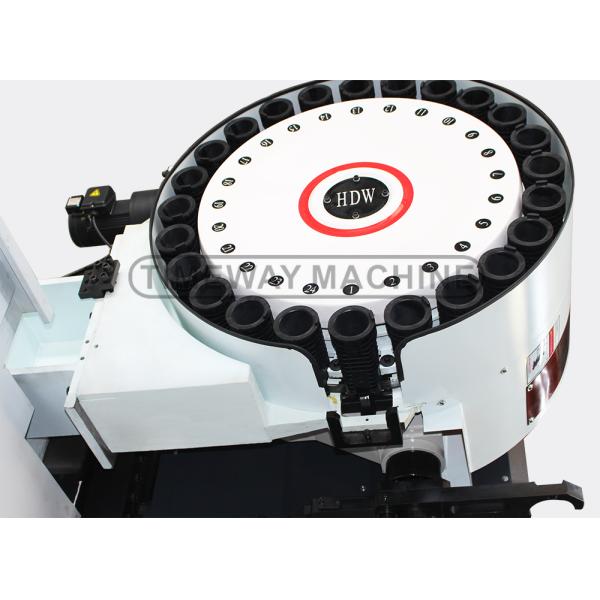

>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
========================

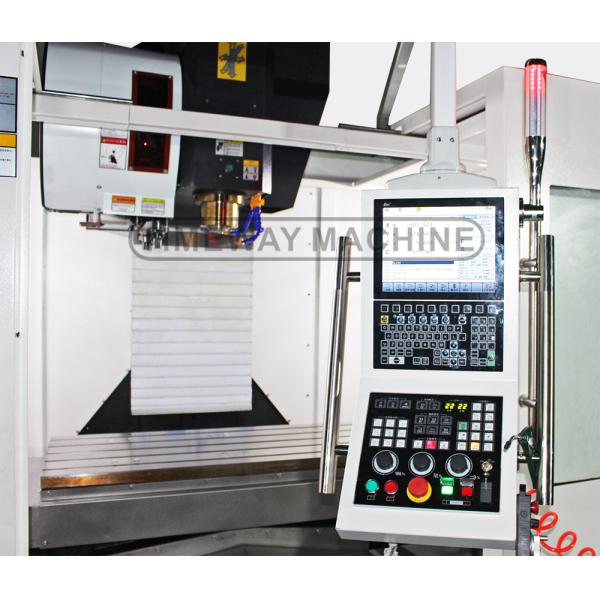

>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> FANUC CNC system comes standard for Export abroad.
========================
>> Chain-type chip conveyor comes optional.

Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Client feedback
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Factory Display：
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Disc-type ATC 1360x700mm VMC Vertical Machining Center for Heavy Duty CNC Milling Machine
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
