500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
Specifications
Condition :
New
Spindle Taper :
BT40
No. of Spindles :
Single
Type :
VERTICAL
Dimension(L*W*H) :
2800x2350x2600
Weight (T) :
4.6 T
Table Size (mm) :
1000*500
CNC Control System :
GSK, FANUC, MITSUBISHI, Siemens, DELEM
Number of Axes :
3
Table Travel (X) (mm) :
800
Table Travel (Y) (mm) :
500
Table Travel (Z) (mm) :
500
Positioning Accuracy (mm) :
±0.01
Repeatability (X/Y/Z) (mm) :
±0.008
Range of Spindle Speed(r.p.m) :
0 - 8000 r.p.m
Spindle Motor Power(kW) :
7.5
Max. Table Load(kg) :
600 kg
Feed Speed(mm/min) :
0 - 1500 mm/min
Min. Time of Tool Change(s) :
4
Tool Magazine Capacity :
20, 24
Key Selling Points :
Automatic
Warranty :
1 Year
Place of Origin :
China
Brand Name :
TIMEWAY
Voltage :
As customer's requirements
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
T-slot :
5-18-90
loading capacity :
600kg
x-axis travel :
800mm
y-axis travel :
500mm
z-axis travel :
500mm
spindle taper :
BT-40
spindle speed :
8000rpm
power capacity :
18kva
guideway type :
sliding
machine weight :
4600kg
Applicable Industries :
Manufacturing Plant, Construction works
Showroom Location :
Egypt, United Kingdom, United States, France, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Russia, Thailand, South Korea, Chile, UAE, Ukraine
Core Components :
Motor
Rapid Feed Speed(m/min) :
15
Packaging Details :
Wooden cases(can be fumigated)
Supply Ability :
150 Set/Sets per Month
Price :
$22,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
Specification
Unit
VMC850
VMC1060
VMC1270
Worktable size (LxW)
mm
1000x500
1200x600
1360x700
T-slot (No./width/pitch)
mm
5/18/90
5/18/110
5/18/152.5
Loading capacity
kg
600
800
1200
Longitudinal travel (X)
mm
800
1000
1200
Cross travel (Y)
mm
500
600
700
Vertical travel (Z)
mm
500
600
700
Distance from spindle nose to table
mm
110-610
120-720
140-840
Distance from spindle center to column
mm
550
655
785
Spindle taper
-
BT40
BT40
BT40
Spindle speed
rpm
8000
8000
8000
X/Y/Z-axis rapid feed speed
m/min
15/15/15
15/15/15
15/15/15
X/Y/Z-axis positioning accuracy
mm
0.01
0.01
0.01
X/Y/Z-axis repositioning accuracy
mm
0.008
0.008
0.008
Main motor power
kw
7.5/11
11/15
15/18.5
Air pressure source
kg/cm2
6-8
6-8
6-8
Power capacity
Kva
20
25
30
Tool magazine capacity
T
24 (Disc)
24 (Disc)
24 (Disc)
Guideway type
-
Sliding
Sliding
Sliding
Machine weight
kg
4600
6300
10000
Machine dimensions (LxWxH)
mm
2800x2350x2600
3200×2560×2960
3820×2600×3100
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining

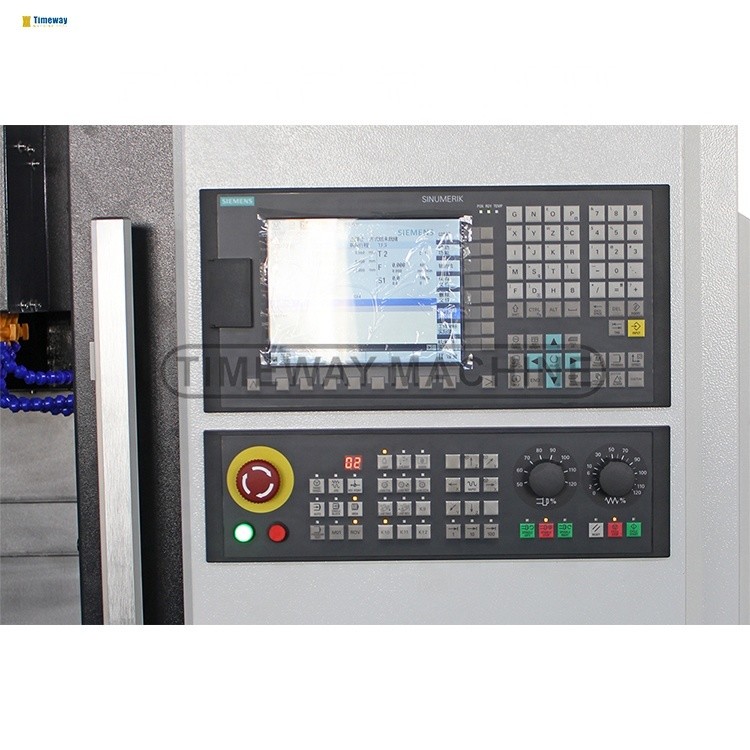

· SIEMENS 808D control
· Manual pulse generator(MPG)
· USB &LAN interface
· Work lamp
· Pilot lamp
· Cooling system
· Auto. lubrication system
· Leveling wedge and bolts
· Full enclosed splash guard
· Heat exchanger
· Tool & tool box
· Operator manual(English)
· 4th axis wring
· NC rotary table
· Direct driven spindle
· Circular coolant nozzle
· Coolant through spindle(CTS)
· Spindle oil cooler
· Air conditioner for electrical cabinet
· Auto. measurement system
· Screw type chip conveyor
· Chain type chip conveyor
· Safety door
· Oil skimmer
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
Why Choose Us
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
500mm Table Travel Automatic CNC Vertical Machining Center for Precise Machining
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
