Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Specifications
Condition :
New
Spindle Taper :
BT-40
No. of Spindles :
3
Type :
Horizontal
Dimension(L*W*H) :
4285*3120*3280 mm
Weight (T) :
8 T
Table Size (mm) :
630*630 mm
CNC Control System :
GSK, FANUC, KND, Siemens
Number of Axes :
3
Table Travel (X) (mm) :
1000 mm
Table Travel (Y) (mm) :
750 mm
Table Travel (Z) (mm) :
600 mm
Positioning Accuracy (mm) :
0.008 mm
Repeatability (X/Y/Z) (mm) :
0.005 mm
Range of Spindle Speed(r.p.m) :
0 - 6000 r.p.m
Spindle Motor Power(kW) :
15/18.5 kw
Max. Table Load(kg) :
1200 kg
Feed Speed(mm/min) :
1 - 8000 mm/min
Min. Time of Tool Change(s) :
5
Tool Magazine Capacity :
24
Key Selling Points :
Automatic
Warranty :
1 Year
Place of Origin :
China
Brand Name :
TIMAC TIMEWAY
Voltage :
220/380V
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Machine Type :
Horizontal Machining Center
Application :
Metal Machining
Key word :
Horizontal Machining Center
CNC or Not :
CNC Systemn
number of axis :
3
X-axis travel :
1000
Y-axis travel :
750
Table size :
630*630 mm
Product name :
cnc horizontal machining center
Machine weight :
8000 kg
Showroom Location :
Egypt, Canada, France, Germany, Indonesia, Pakistan, Thailand, Morocco, Colombia, South Africa, Uzbekistan, Japan
Core Components :
Bearing
Rapid Feed Speed(m/min) :
24/15/24 m/min
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Other
Packaging Details :
wooden cases
Port :
China Port
Supply Ability :
40 Set/Sets per Month
Price :
$70,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

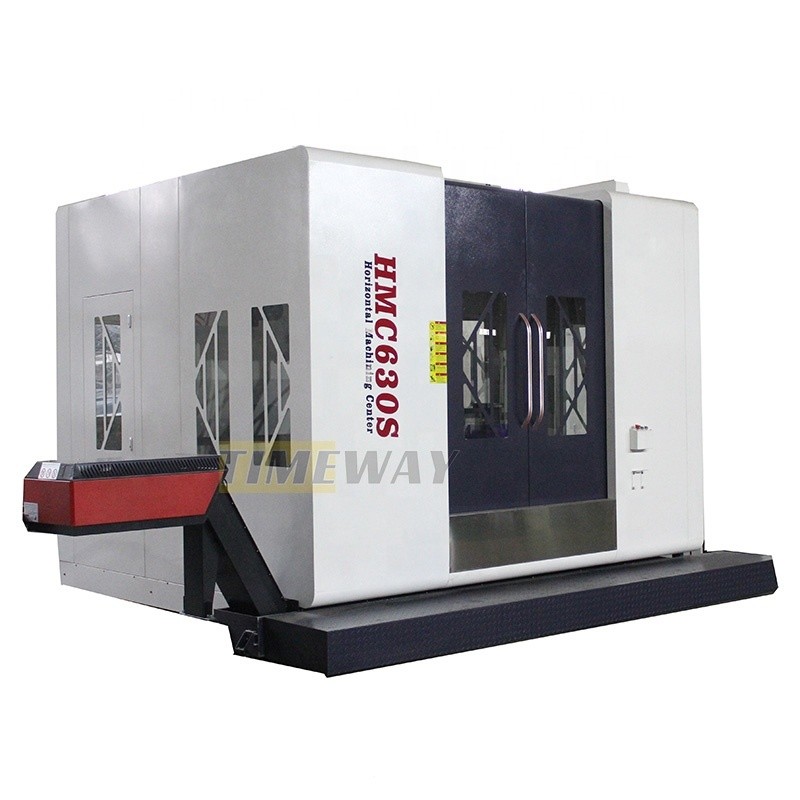

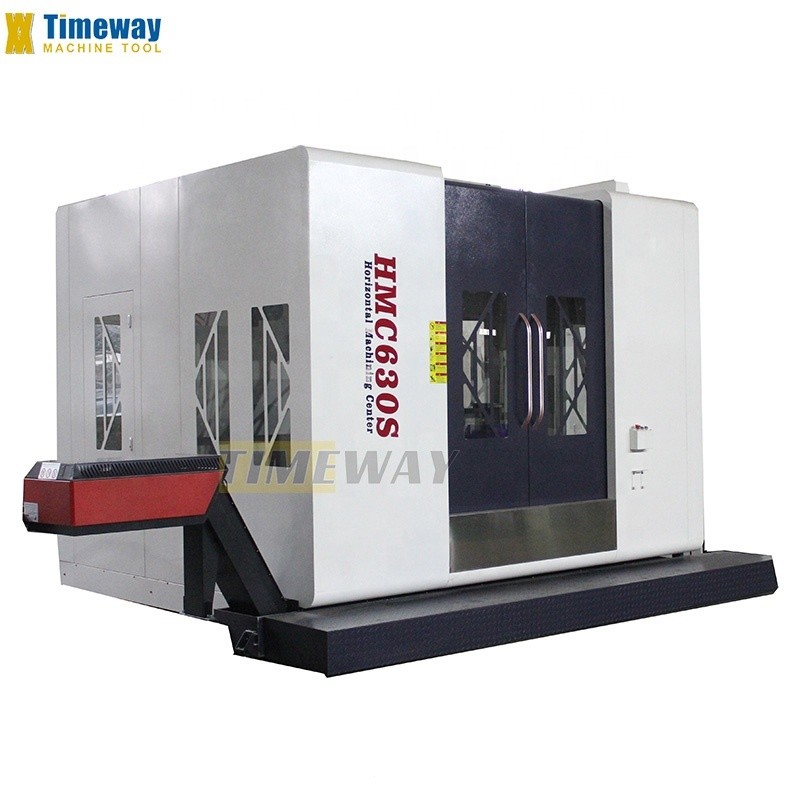

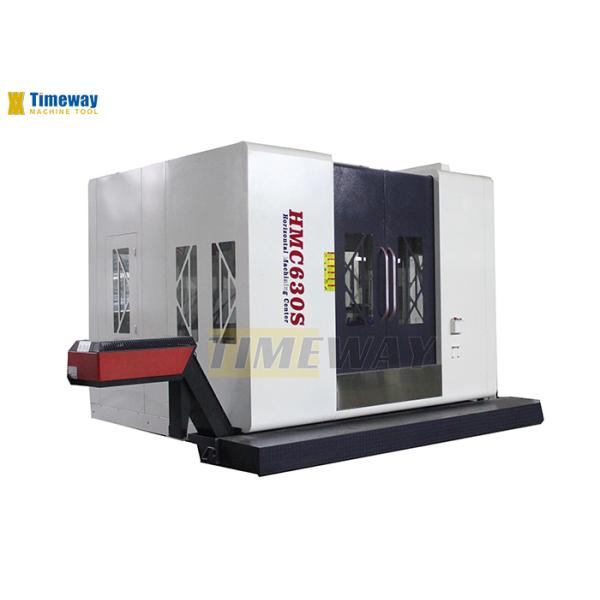

Horizontal Machining Center
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Specification
Unit
HMC630S
HMC800S
Machine structure
–
Cross-type
Cross-type
X-axis travel
mm
1000
1800
Y-axis travel
mm
750
1400
Z-axis travel
mm
600
900
Table size
mm
630×630
800×800
Loading capacity
kg
1200
2000
Spindle taper
–
BT-50
BT-50
Spindle speed
rpm
6000
6000
Main motor power
kw
15/18.5
15/18.5
ATC capacity (style)
tools
24 (Disc)
40 (Chain)
Tool change time (tool to tool)
sec
5
5
Machine weight
kg
800
12000
Overall dimension (LxWxH)
mm
4285×3120×3280
6200×4800×3800
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed

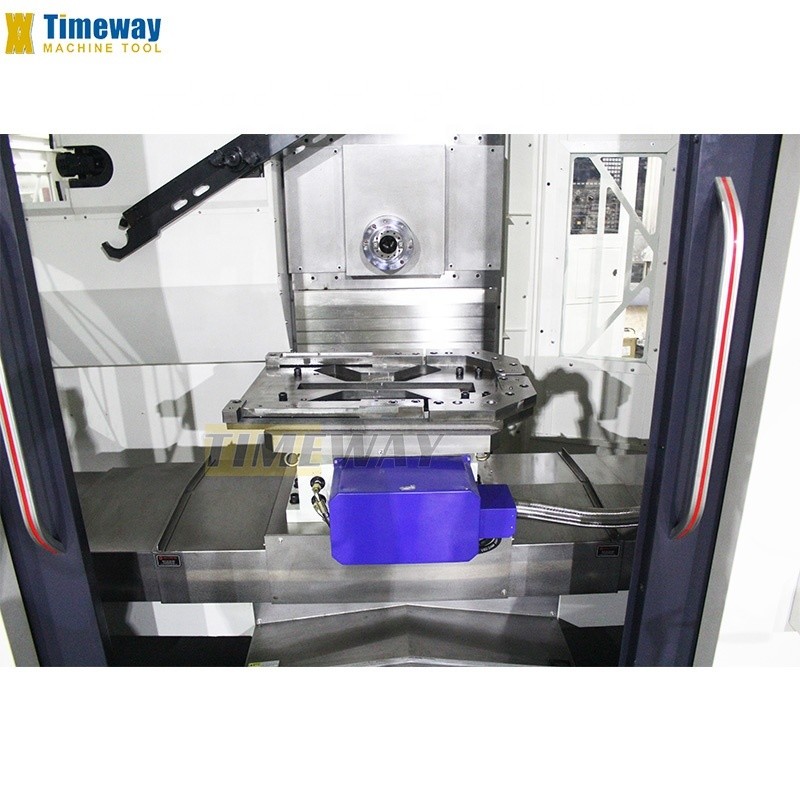

· NC rotary worktable (B axis);
· Work lamp;
· Pilot lamp;
· USB and LAN interface;

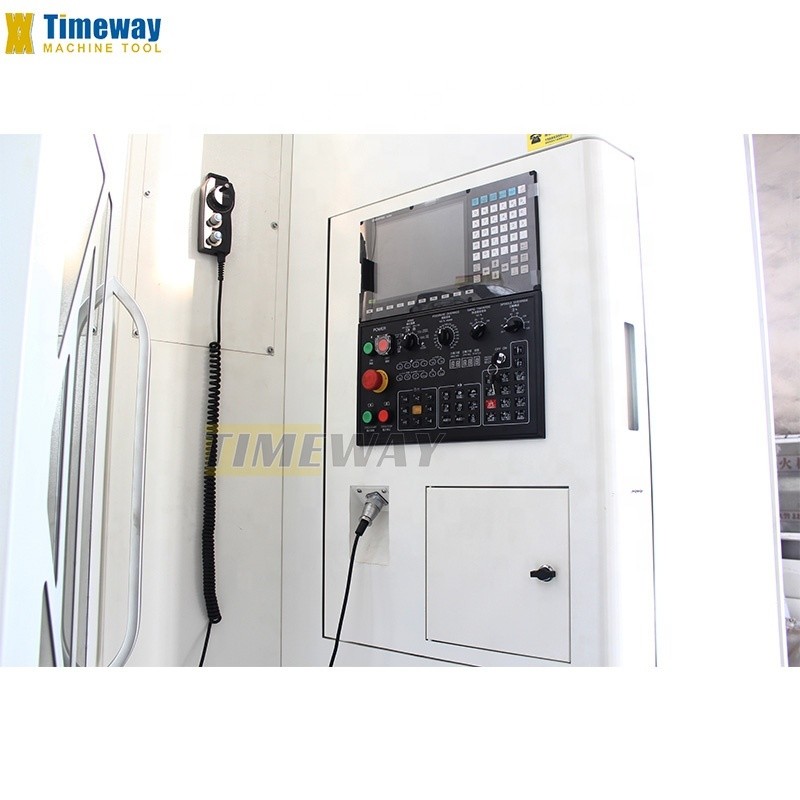

· Manual pulse generator (MPG);
· Centralized automatic lubrication system.
· Cooling system.
· Heat exchanger for electrical cabinet ;
· Leveling blocks & bolts;
· Toolbox and tools;
· CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
· ZF or BF reducer;
· Circular Coolant Nozzle;
· Coolant through spindle (CTS);
· Spindle oil cooler;
· Air conditioner (A/C) for electrical cabinet;
· Auto. Tool length measurement system;
· Auto. Workpiece measurement systems;
· Optional with sprial type chip conveyor and chain type chip conveyor.
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Positive Comments From Customers
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Company Introduction
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Factory Display：
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Text Introduction：
Metal Machining Center with 0.005 mm Repeatability and 0 6000 r.p.m Spindle Speed
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
