600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
Specifications
Condition :
New
Spindle Taper :
BT50
No. of Spindles :
3
Type :
Gantry
Dimension(L*W*H) :
3500x2400x3200 mm
Weight (T) :
10 KG
Table Size (mm) :
820x1300
Table Travel (X) (mm) :
1000
Table Travel (Y) (mm) :
1250
Table Travel (Z) (mm) :
600
Positioning Accuracy (mm) :
±0.005
Repeatability (X/Y/Z) (mm) :
±0.003
Range of Spindle Speed(r.p.m) :
0 - 6000 r.p.m
Max. Table Load(kg) :
10 kg
Feed Speed(mm/min) :
0 - 10000 mm/min
Min. Time of Tool Change(s) :
2
Tool Magazine Capacity :
24
Key Selling Points :
High-accuracy
Warranty :
1 Year
Place of Origin :
Henan, China
Brand Name :
Timac
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Machining Capacity :
Heavy Duty
Spindle Bore(mm) :
150
Cutting torque :
18 N.m
Rapid Feed Speed(mm/min) :
0 - 20000 mm/min
X-axis travel :
1000mm
Y/Z-axis travel :
1250/600mm
Loading capacity :
800kg
Gantry width :
1050mm
Table width :
820mm
Table length :
1300mm
Main motor power :
11/15kw
ATC capacity (style) :
24(Disc)
Machine weight :
10tons
Keywords :
gantry machining center
Price :
$200,000.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

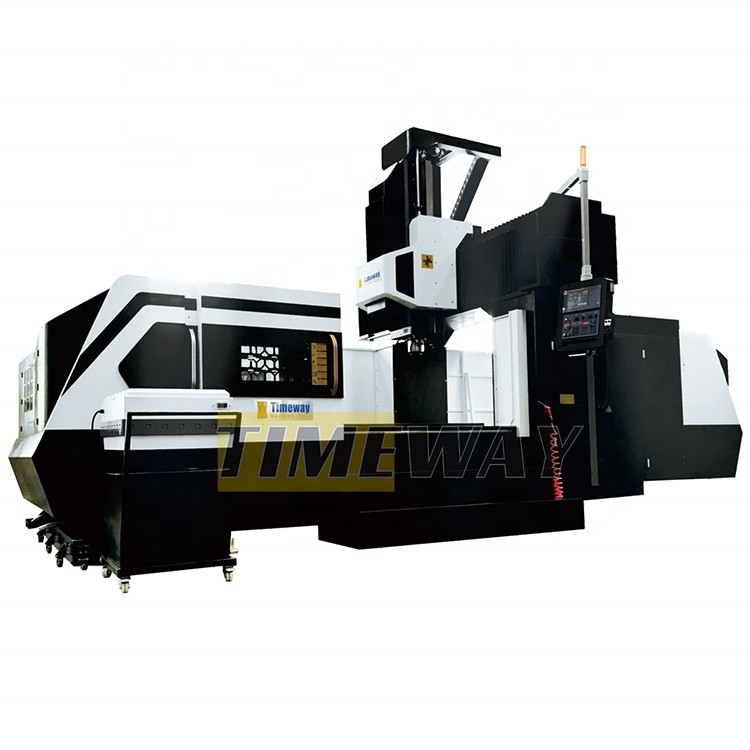

Gantry Machining Center
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining

Features：

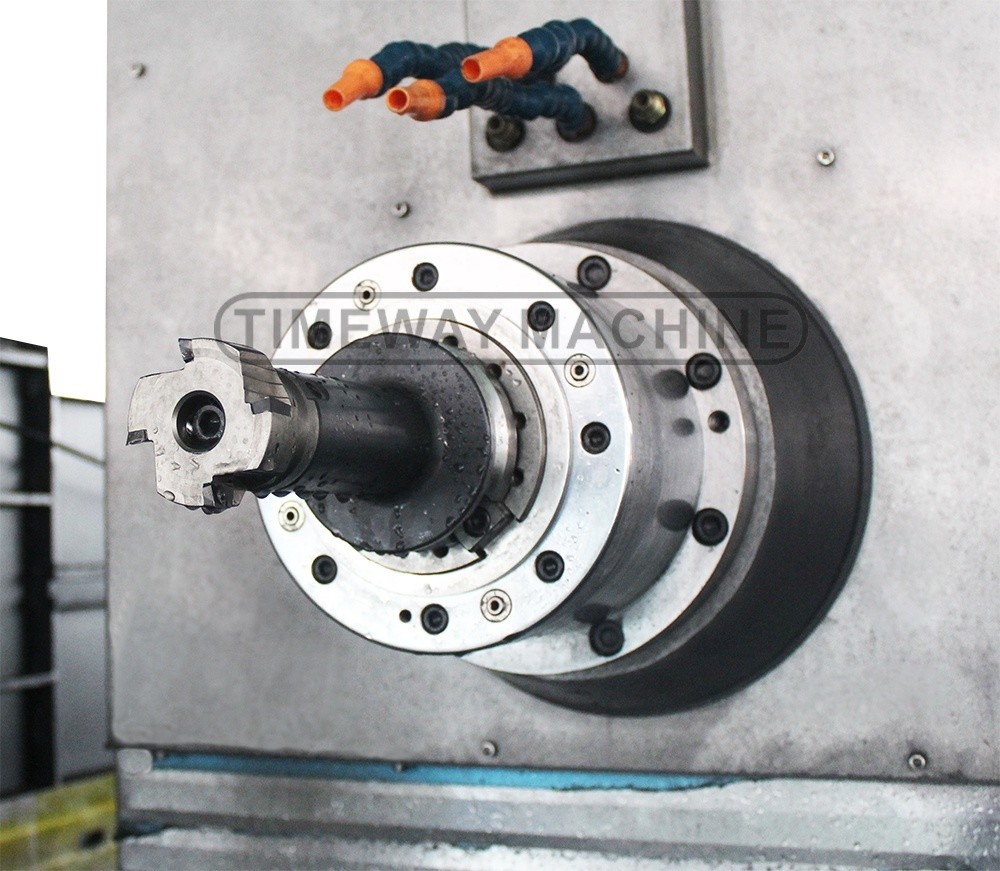

Adopt gantry frame fixed beam structure, machine bed and main parts use high-strength cast iron, ensure stability of the machine during long using term. X/Y-axis adopt super overloading linear rolling guideway, Z-axis adopts rectangular hardened and plastic hard guideway; High-precision, high-speed, strong cutting and high rigid. Spindle box is equipped with hydraulic automatic balancing system, balancing dynamically the self-weight of spindle box, guarantee processing accuracy and stability of the machine tool. For high-precision and high rigidity and large-torque spindle unit, main transmission adopts gear speed shifting, high and low speed automatic transmission by hydraulic station, suitable for low-speed heavy cutting.
Specification
Specification
Unit
GMC1000
Table width
mm
900
Table length
mm
1300/1600/1800/2000/2200
Cross travel (Y)
kg
1000
Vertical travel (Z)
mm
600
Gantry width
mm
1400
Max. height of workpiece
mm
680
Machine width & height
kw
2700*3300
Accessories

Standard accessories：

1. Resin sand casting

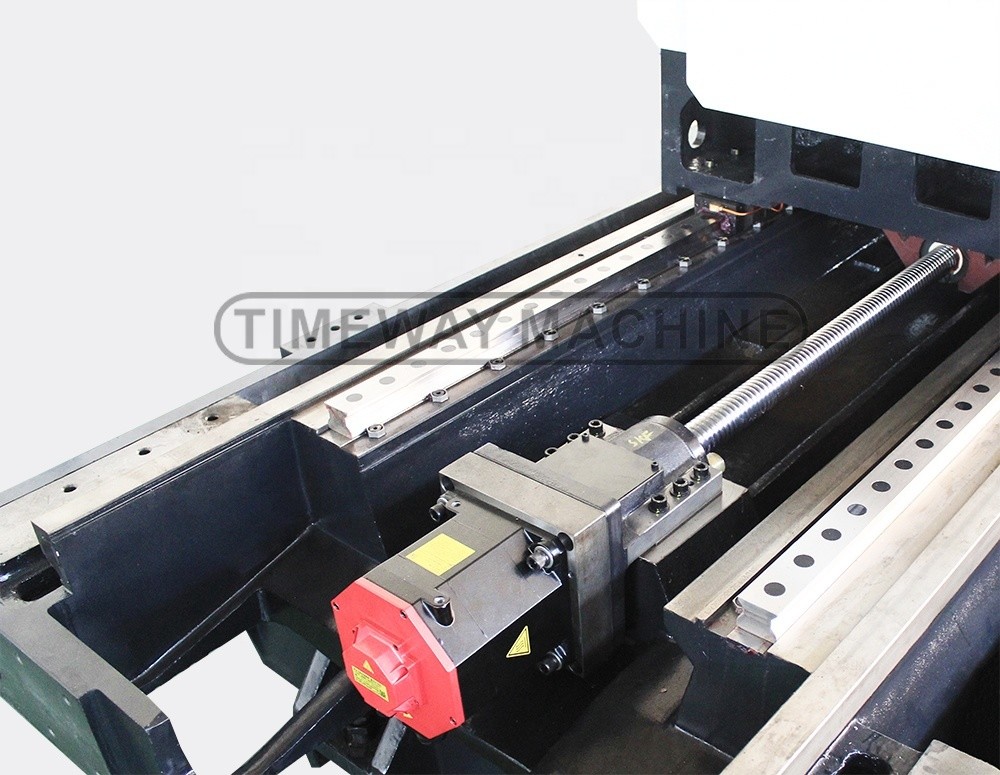

2. X, Y rails adopts imported linear guideway,Z rail is quenching -plastic sliding guide rail pair
3. Imported rolling screw, rack, gear box
4. X rail adopt stainless steel telescopic cover,
Y rail adopts plastic accordion cover
5. Standard with belt driven head, optional for auto. 5 faces head, gear head, ZF reducer head, direct driven head, CTS head
6. Taiwan production pneumatic cylinder
7. Taiwan ATC, carousel type, disc type,chain type are available as option
8. Imported bearings for leadscrews
9. Famous brand coupling
10. Headstock balancing system is Nitrogen balance system as option
11. Work lamp
12. Pilot lamp
13. USB and LAN interface
14. Manual pulse generator (MPG)
15. Centralized automatic lubrication system
16. Cooling system
17. Heat exchanger for electrical cabinet
18. Leveling blocks & bolts
19. Toolbox and tools
20. Double spiral chip conveyor
21. CNC controller: KND,GSK, HNC (China) SIEMENS, FANUC,MITSUBISHI, FAGOR,etc

Optional accessories：

1. Special milling head: Lengthen milling head, right angle milling head, universal milling head
2. Circular Coolant Nozzle
3. Coolant through spindle (CTS)
4. Spindle oil cooler
5. Air conditioner (A/C) for electrical cabinet
6. Auto. Tool length measurement system
7. Auto. Workpiece measurement systems
8. Chain type chip conveyor
Packing & Delivery
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Exhibition&Training
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Company Introduction
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
Factory Display：
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
Text Introduction：
600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
