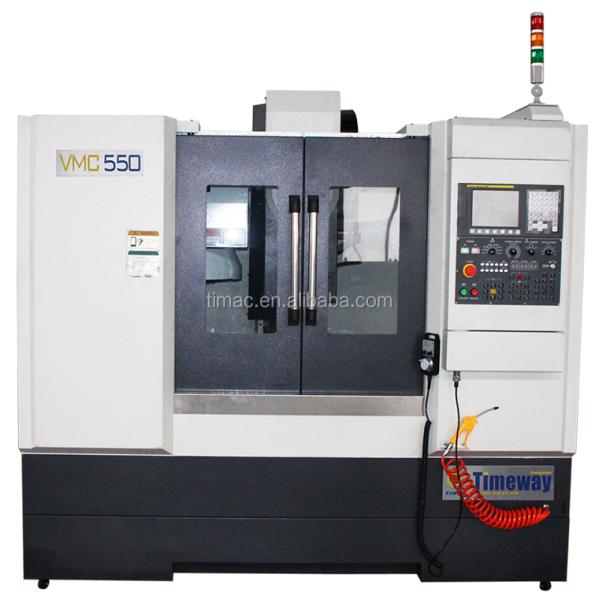

500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine
500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine
500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine
500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine
500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine
500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine
500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine
500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine
500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine
500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine
500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine
500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine
Specifications
Condition :
New
No. of Spindles :
Single
Type :
VERTICAL
Dimension(L*W*H) :
2100x1800x2150mm
Weight (T) :
3 T
Table Size (mm) :
320x800
CNC Control System :
GSK, FANUC, MITSUBISHI, Siemens
Number of Axes :
3
Table Travel (X) (mm) :
550
Table Travel (Y) (mm) :
340
Table Travel (Z) (mm) :
500
Positioning Accuracy (mm) :
±0.005
Repeatability (X/Y/Z) (mm) :
±0.003
Spindle Motor Power(kW) :
5.5
Max. Table Load(kg) :
350 kg
Min. Time of Tool Change(s) :
1
Tool Magazine Capacity :
12
Key Selling Points :
High-accuracy
Warranty :
1 Year
Place of Origin :
China
Brand Name :
TIMAC
Voltage :
As required
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Machine Type :
Vertical machining center CNC
Controlling Mode :
Full automatic
Control system :
FANUC or SIEMENS or GSK
Workbench size :
320x800mm
Workbench travel :
550/340mm
Spindle vertical travel :
500mm
Spindle speed :
0-8000rpm
Spindle type :
BT40/120
Rail :
Linear
X/Y/Z-axis feed speed :
24/24/24m/min
Applicable Industries :
Manufacturing Plant
Showroom Location :
Peru, Kenya, Colombia, South Africa
Core Components :
Bearing
Packaging Details :
Wooden case
Supply Ability :
200 Set/Sets per Month
Price :
$30,000.00/sets 1-2 sets
MOQ :
1 set
Description

3-axis Linear Rail Vertical Machining Center CNC Machine

VMC550

500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine

Product Description

500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine

Features:

• At all stages from foundation design to guarantee of high-speed and high-precision continuous machining, the structure of the machine tool is analyzed with ANSYS.

• To ensure excellent bending rigidity of the machine tool, we take a simulation test for deformation produced when the center of machine tool bears load is conducted.
• Large precision preloaded ballscrews, direct servo-motor drive to ensure max. Reliability and precision. Premium linear guideways on all axes.
• Pneumatic tool clamping for easy and quick tool changes.
• Optimal extension ratio of spindle box realizes the optimal machining rigidity, and design of large-span herringbone columns guarantees strong rigidity of columns.
• Automatic central lubrication for low-maintenance operation.
• Powerful headstock motor, enough power in continuous operation.
• Effective coolant system ensures optimum use of tools and excellent chip conveyor.
• Enclosed work space ensures safe and contamination-free work.
• Superior mechanical properties of the total component package ensure longer tool life.
• Easy accessibility of work table for easy setup and tooling.

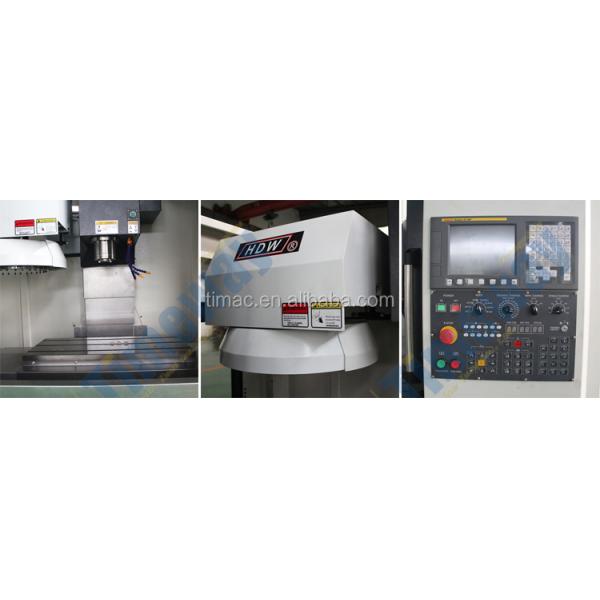

Views of Function parts
500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine

500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine

500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine

Technical parameter:

Specification Unit VMC550
Worktable size(LxWxH) mm 800x320
T-slot(Number/width/distance) mm 3-14-110
Max. weight of worktable kg 350
X-axis travel mm 550
Y-axis travel mm 340
Z-axis travel mm 500
Distance spindle center to column mm 390
Distance spindle nose to worktable mm 100-600
Spindle taper - BT40/120
Spindle speed rpm 8000
X-axis rapid feed speed mm/min 24000
Y-axis rapid feed speed mm/min 24000
Z-axis rapid feed speed mm/min 24000
ATC Type - carousel
ATC Station pcs 12
Max. tool weight kg 8
Max. tool diameter mm 90
Max. tool length mm 300
Tool change time sec 7/60HZ
Spindle motor power kw 5.5
X-axis servo motor power Nm 6
Y-axis servo motor power Nm 7.7
Z-axis servo motor power Nm 10
Positioning accuracy mm ±0.005/300
Re-positioning accuracy mm ±0.003
Overall dimension (LxWxH) mm 2100x1800x2150
Machine weight kg 3000
Get Quotation

Standard Configuration:
  • CNC controller: Siemens SINUMERIK
  • X/Y/Z-axis servo feed motor: Siemens
  • X/Y/Z-axis linear type guideway
  • BT40 spindle unit with 8000r.p.m
  • 12 tools Carousel type ATC
  • Full-closed protection guard
  • Electric parts: Schneider
  • Automatic lubrication
  • Coolant system
  • Operating tools
  • Operating manual in English

Related Products
500mm Spindle Travel VMC550 3-axis Linear Rail Vertical Machining Center CNC Machine

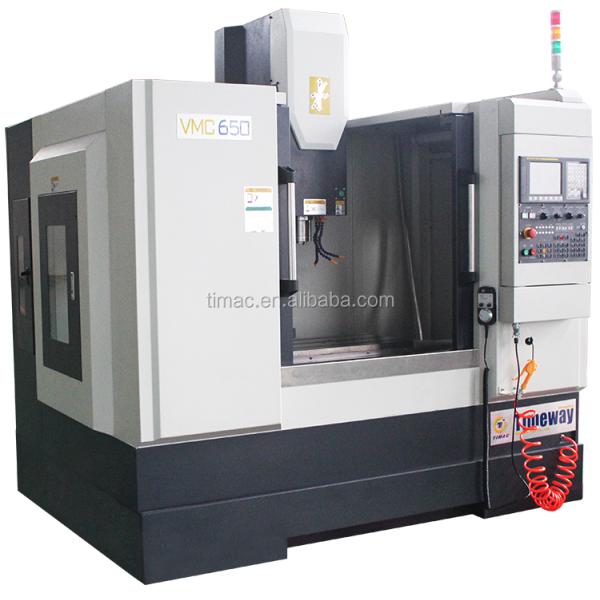

VMC650
