Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Specifications
Condition :
New
Spindle Taper :
BT50
No. of Spindles :
Single
Type :
Horizontal
Dimension(L*W*H) :
3800x6200x3200mm
Weight (T) :
15 T
Table Size (mm) :
Other
CNC Control System :
FANUC
Number of Axes :
3
Table Travel (X) (mm) :
1050
Table Travel (Y) (mm) :
900
Table Travel (Z) (mm) :
1050
Positioning Accuracy (mm) :
±0.001
Repeatability (X/Y/Z) (mm) :
0.001
Range of Spindle Speed(r.p.m) :
500 - 6000 r.p.m
Spindle Motor Power(kW) :
18.5
Max. Table Load(kg) :
1000 kg
Min. Time of Tool Change(s) :
4
Tool Magazine Capacity :
24
Key Selling Points :
High-accuracy
Warranty :
12 Months
Place of Origin :
China
Brand Name :
TIMEWAY TIMAC
Voltage :
380V/50Hz
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Table size :
630x630mm
Number of table :
2pcs
Table indexing :
0.001°
Spindle speed :
6000rpm
Tool magazine :
Disc 24pcs
X axis travel :
1050mm
Y axis travel :
900mm
Warranty period :
1year
Applicable Industries :
Manufacturing Plant
Showroom Location :
Mexico, Russia, Romania, South Africa
Core Components :
PLC
Packaging Details :
Wooden pallet or case
Port :
China port
Supply Ability :
100 Set/Sets per Month
Price :
$300,000.00/sets >=1 sets
MOQ :
1 set
Description
Product Description

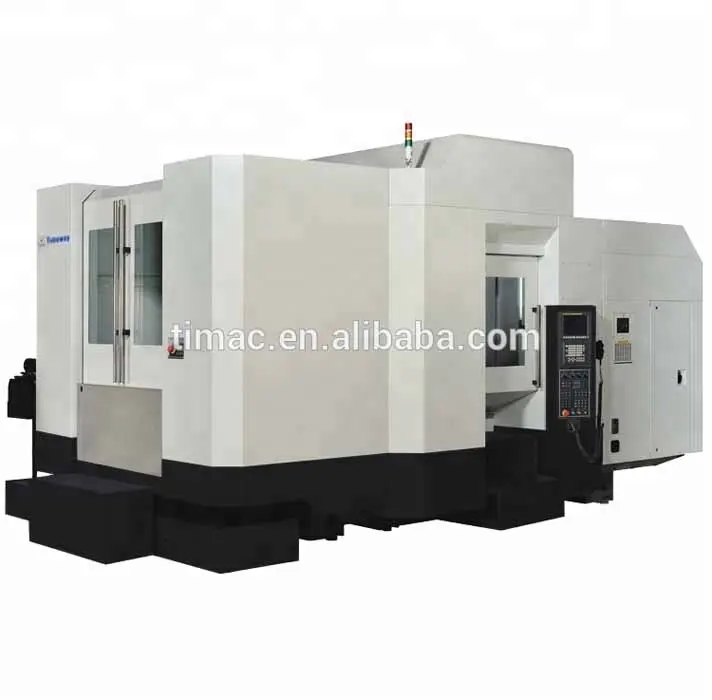

Exchange Table Horizontal Machining Center
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Specification
Techncial parameters
Unit
H3 APC
H4 APC
H5 APC
H6 APC
Wortable size
mm
300x300
400x400
500x500
630x630
Worktable number
-
2
2
2
2
Worktable indexing
°
0.001°
0.001°
0.001°
0.001°
Worktable loading capacity
kg
250kgx2
1000kgx2
600kgx2
1000x2
T slot of worktable (No.-sizexdistance)
-
24-M12(80x80)
5-14x80
5-14x100
24-M16 (125x125)
X axis travel
mm
460
600
900
1050
Y axis travel
mm
350
600
800
900
Z axis travel
mm
350
600
800
1050
Distance from spindle center to worktable
mm
60-410
0-600
0-800
0-900
Spindle taper (Style/diameter)
-
BT40-Φ120
BT40-Φ120
BT50-Φ190
BT50-Φ190
Max. spindle speed
rpm
10000
10000
6000
6000
ATC style/station
-
Disc/24pcs
Disc/24pcs
Disc/24pcs
Disc/24pcs
Max. tool diameter
mm
300
300
350
350
Max. tool length
mm
Φ80
Φ80
Φ127
Φ127
Max. tool weight
kg
7
7
15
15
Main motor
kw
5-7.5
15-18.5
15
15-18.5
Net weight (appox.)
kg
6300
15000
10000
15000
Overall dimension (LxWxH)
mm
2220x3000x2400
2620x4000x2600
3530x4600x2800
3800x6200x3200

Main configuration & accessories:

1. Resin sand casting;
2. X, Y, Z rails adopts imported linear guideway;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, H3APC/H4APC is direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadsrews;
8. Import coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
10. Exchangeable NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and Internet interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

Optional configuration & accessories:

1. ZF or BF reducer;
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Chain type chip conveyor;
Client feedback
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Factory Display：
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Exchange Table CNC Horizontal Boring Machine Center with 500 6000 r.p.m Spindle Speed
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
