500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
Specifications
Condition :
New
Spindle Taper :
BT40
No. of Spindles :
Single
Type :
VERTICAL
Dimension(L*W*H) :
2350x2100x2300
Weight (T) :
12000 KG
Table Size (mm) :
420*100
CNC Control System :
Other
Table Travel (X) (mm) :
700
Table Travel (Y) (mm) :
450
Table Travel (Z) (mm) :
500
Positioning Accuracy (mm) :
±0.01
Repeatability (X/Y/Z) (mm) :
±0.008
Range of Spindle Speed(r.p.m) :
0 - 8000 r.p.m
Max. Table Load(kg) :
700 kg
Feed Speed(mm/min) :
0 - 15000 mm/min
Min. Time of Tool Change(s) :
9
Tool Magazine Capacity :
Other
Key Selling Points :
Multifunctional, Automatic, Competitive Price, Sustainable
Warranty :
1 Year
Place of Origin :
China
Brand Name :
TIMEWAY
Voltage :
380V/220V
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Machining Capacity :
Medium Duty
Spindle Bore(mm) :
other
Cutting torque :
0 N.m
Rapid Feed Speed(mm/min) :
0 - 15000 mm/min
Worktable size (WxL) :
420x1000mm
T-slot (No./width/pitch) :
5/18/80mm
Loading capacity :
500kg
Longitudinal travel (X) :
700mm
Cross travel (Y) :
450mm
Vertical travel (Z) :
500mm
Distance from spindle nose to table :
100-600mm
Distance from spindle center to column :
470mm
Main motor power :
5.5/7.5
Machine weight :
4000kg
Price :
$18,000.00/sets >=1 sets
MOQ :
1 set
Description
Product Description

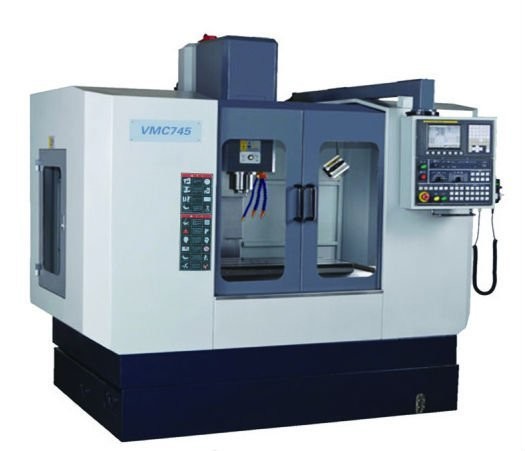

Vertical Machining Center VMC745
Main configurations & accessories:
1.Resin sand casting;
2.X, Y,Z rails are quenching - plastic sliding guide rail pair;
3.X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5.Taiwan production pneumatic cylinder;
6.Taiwan ATC, carousel type and disc type are available as option;
7.Imported bearings for leadscrews;
8. Imported coupling;
9.Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16.Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
Specification
SPECIFICATION
UNIT
VMC550
VMC650
VMC745
VMC850
Worktable size (WxL)
mm
320x800
420x800
420x1000
500x1000
T-slot (No./width/pitch)
mm
3/14/110
5/18/80
3/18/150
Loading capacity
kg
350
500
600
Longitudinal travel (X)
mm
550
600
700
800
Cross travel (Y)
mm
340
450
500
Vertical travel (Z)
mm
500
Distance from spindle nose to table
mm
100-600
150-650
Distance from spindle center to column
mm
390
470
550
Spindle taper
BT40
Spindle speed
rpm
8000
Main motor power
kw
5.5/7.5
7.5/11
Machine weight
kg
3000
3500
4000
5000
Details of Accessories:
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal

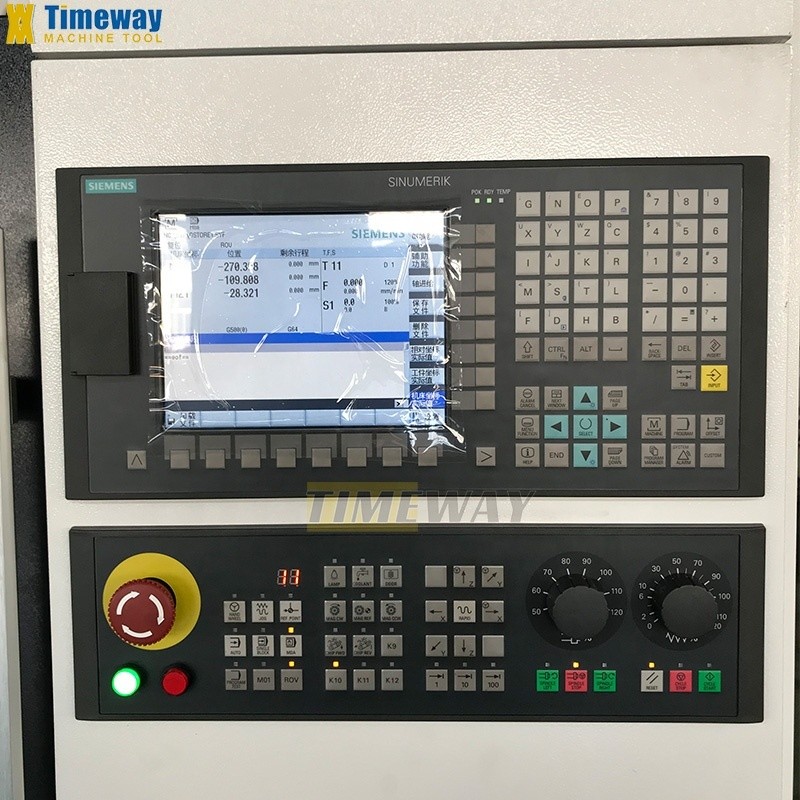

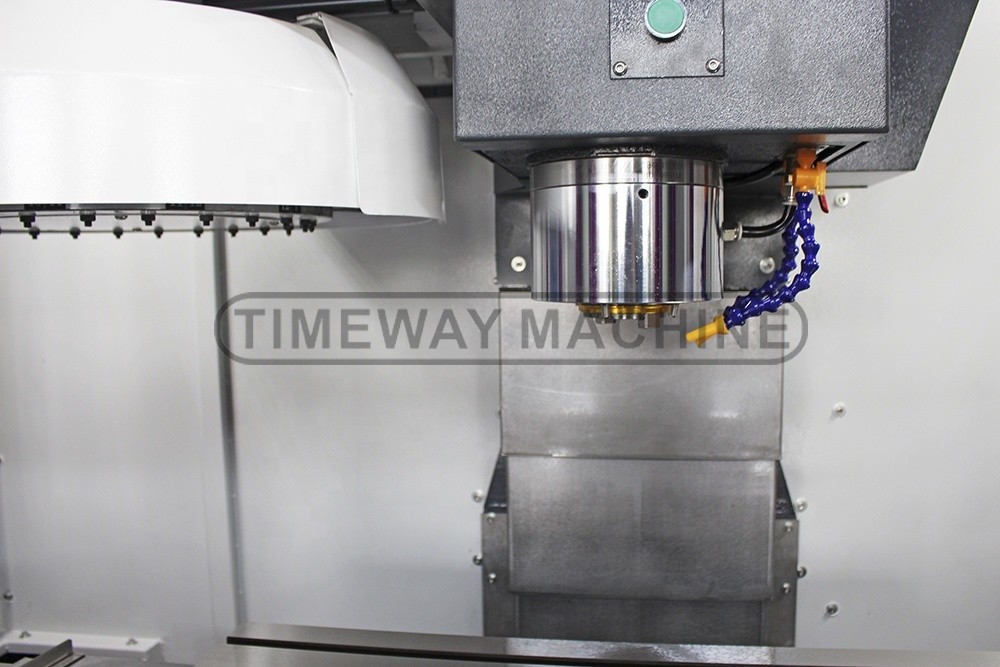

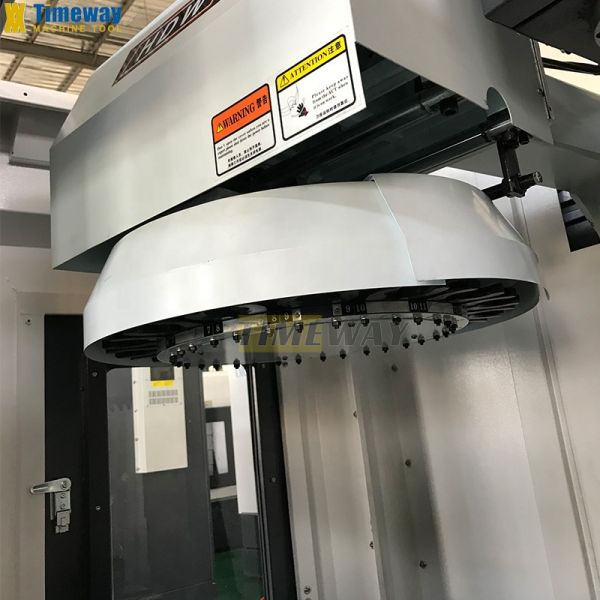

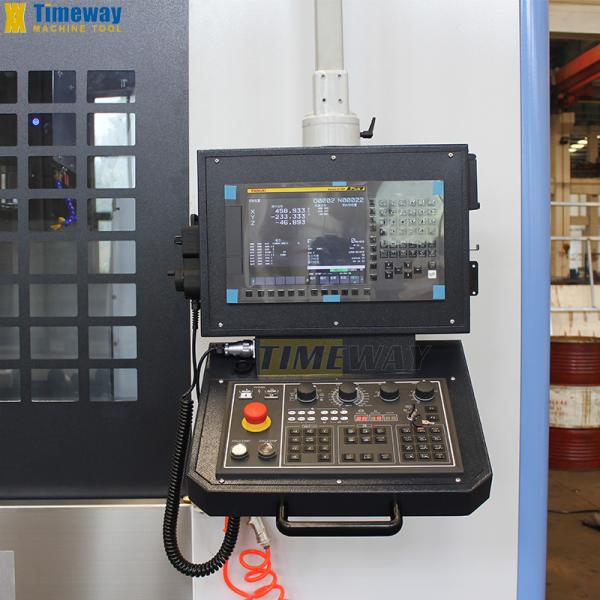

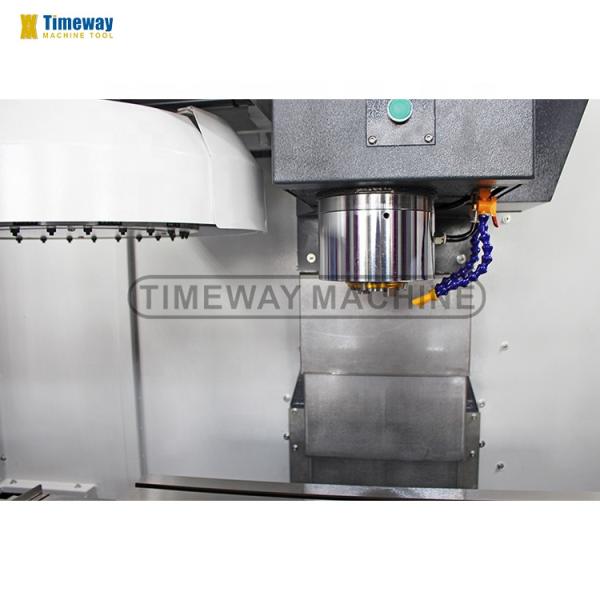

This is the machine's CNC system, tool magazine and other details for your reference
One-Stop Shopping
You can click on the picture to view the products you are interested in
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal

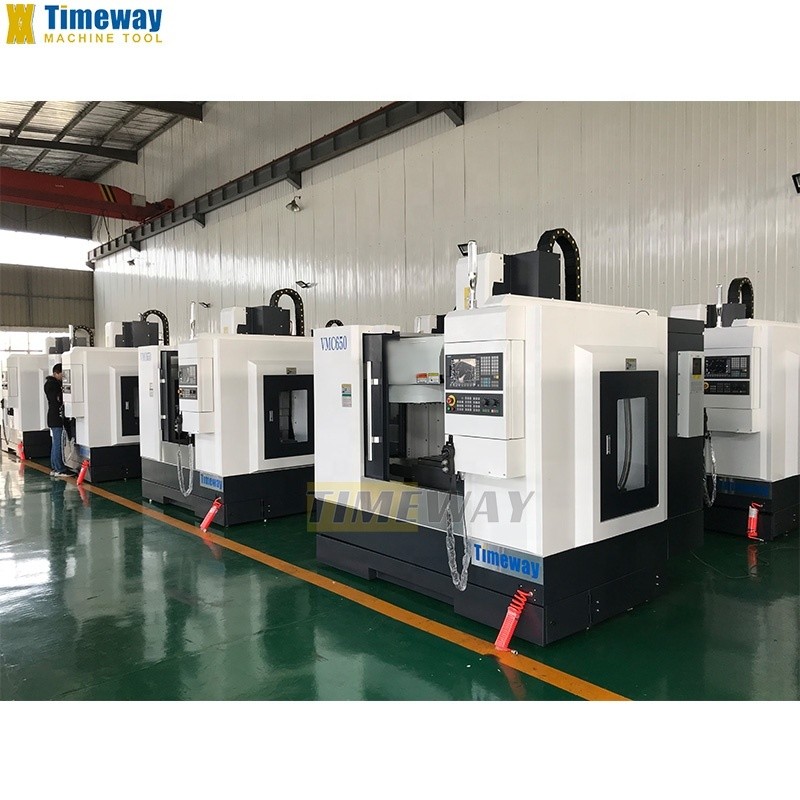

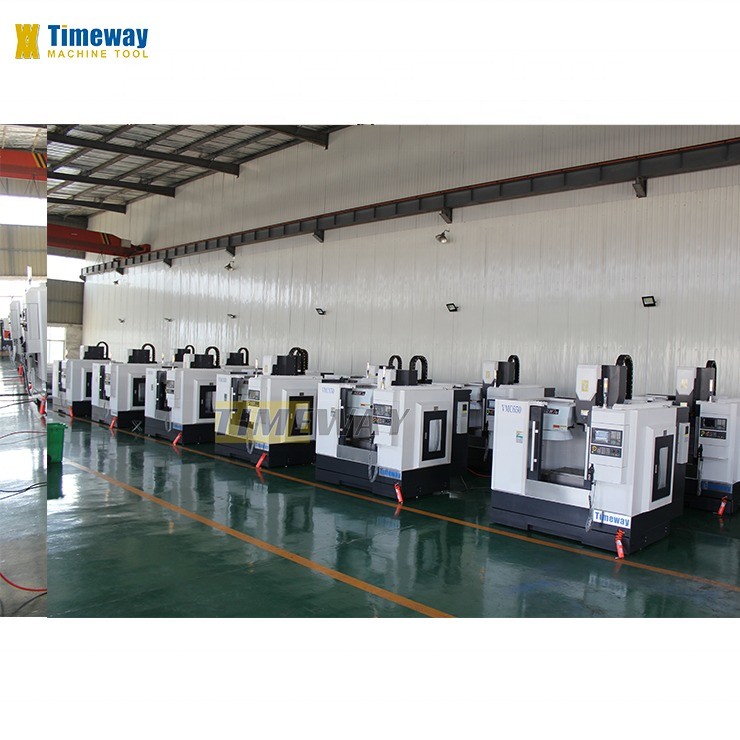

Factory Display：
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
500kg Loading Capacity VMC745 CNC Milling Machine Vertical Machining Center for Metal
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
