Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Specifications
Condition :
New
Spindle Taper :
BT40
No. of Spindles :
Single
Type :
VERTICAL
Dimension(L*W*H) :
2800x2250x2800mm
Weight (T) :
4.2 T
Table Size (mm) :
1000x500
CNC Control System :
MITSUBISHI
Number of Axes :
3, 4
Table Travel (X) (mm) :
800
Table Travel (Y) (mm) :
500
Table Travel (Z) (mm) :
500
Positioning Accuracy (mm) :
±0.005
Repeatability (X/Y/Z) (mm) :
±0.005
Range of Spindle Speed(r.p.m) :
1 - 8000 r.p.m
Spindle Motor Power(kW) :
7.5-11
Max. Table Load(kg) :
500 kg
Feed Speed(mm/min) :
1 - 10000 mm/min
Min. Time of Tool Change(s) :
2
Tool Magazine Capacity :
16, 20, 24, 32, 40
Key Selling Points :
Flexible Manufacturing
Warranty :
12 Months
Place of Origin :
Henan, China
Brand Name :
TIMAC
Voltage :
220V, 380V, 400V, 415V, 440V
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
Workbench dimension :
500x1000mm
Movement (X/Y/Z-axis) :
800/500/500mm
Machine Type :
CNC Vertical Machining Center
Controlling Mode :
Automatic
Control system :
FANUC 0i MF
Max. weight of parts :
500kg
Max. tool length :
300mm
Max. tool weight :
8kg
Spindle speed :
8000r/min
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Canada, United States, Italy, France, Germany, Brazil, Mexico, Russia, Spain, Australia, Morocco, Chile, Colombia, Ukraine, Uzbekistan
Certification :
ISO9001 CE
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Printing Shops, Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location :
Egypt, Canada, Italy, France, Germany, Brazil, Mexico, Russia, Spain, Chile, Colombia, Algeria, Romania, Australia
Core Components :
FANUC or SIEMENS
Rapid Feed Speed(m/min) :
48/48/48
Packaging Details :
In plywood cases.
Port :
China ports
Supply Ability :
200 Set/Sets per Month
Price :
$40,000.00/sets 1-2 sets
MOQ :
1 set
Description
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Products Description
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension

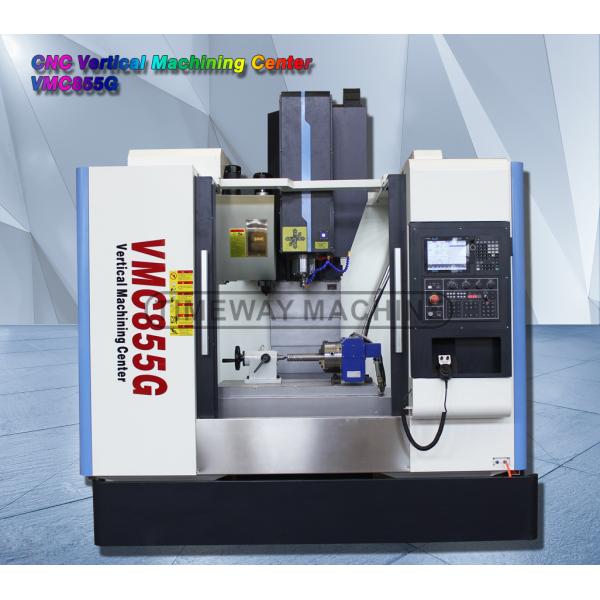

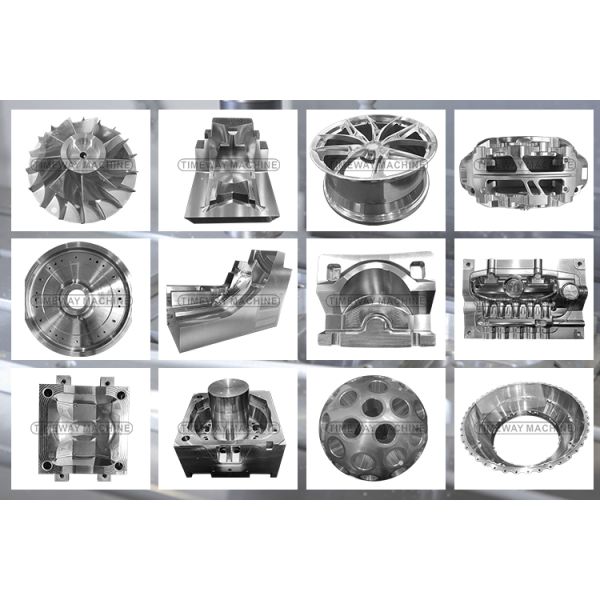

Applications of the vertical machining center:
The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis).
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Specification
Unit
VMC850G
X/Y/Z-axis guideway type
/
Linear guide rail
Capacity
X-axis travel
mm
800
Y-axis travel
mm
500
Z-axis travel
mm
500
Table
Table size
mm
1000×500
Loading capacity
kg
500
T-slots (No./width/pitch)
mm
5-18-100
Distance spindle nose to table center
mm
110-610
Spindle
Distance spindle center to column
mm
524
Spindle taper
/
BT-40
Spindle speed
r/min
8000
Main motor power
kw
7.5/11
3-axis (X/Y/Z)
X/Y/Z-axis servo motor power (MITSUBISHI)
kw
2/2/3
X/Y/Z-axis servo motor (FANUC)
Nm
β12/β12/β22
X/Y/Z-axis rapid feed speed
m/min
48/48/48
X/Y/Z-axis cutting feed speed
mm/min
0-10000
Accuracy
X/Y/Z-axis positioning accuracy
mm
±0.003/300
X/Y/Z-axis repeat positioning accuracy
mm
±0.003/300
Tool magazine (ATC)
ATC style
/
Disc
ATC capacity
tools
24
Tool change time (tool to tool)
sec
1.4
Max. tool weight
kg
8
Max. tool diameter
mm
Φ78/Φ120 (Empty)
Max. tool length
mm
300
Others
Power supply
KVA
20
Air pressure require
kg/cm2
6-8
Z-axis balancing system
/
no
Machine weight
kg
4200
Overall dimension (LxWxH)
mm
2800×2250×2600
CNC system
/
FANUC/MITSUBISHI
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Machine Details
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
========================

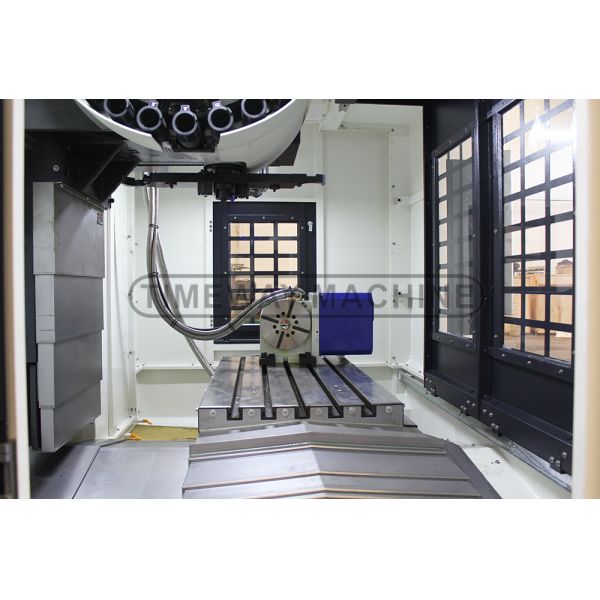

>> Hardened and fine ground worktable surface make sure high rigidity.

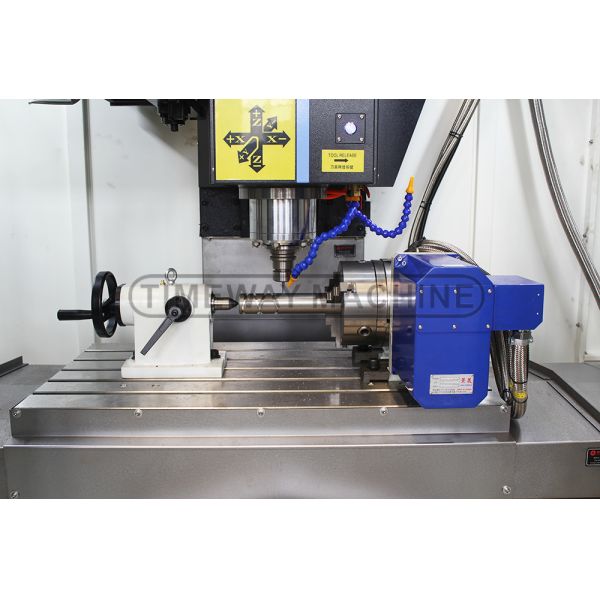

>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
========================

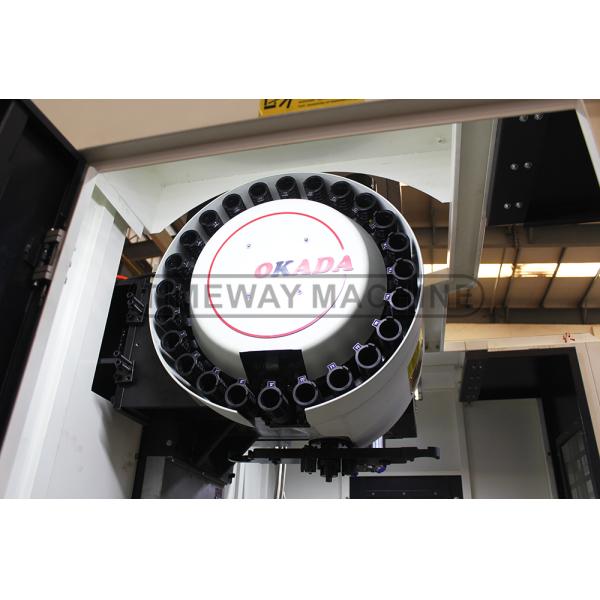

>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================

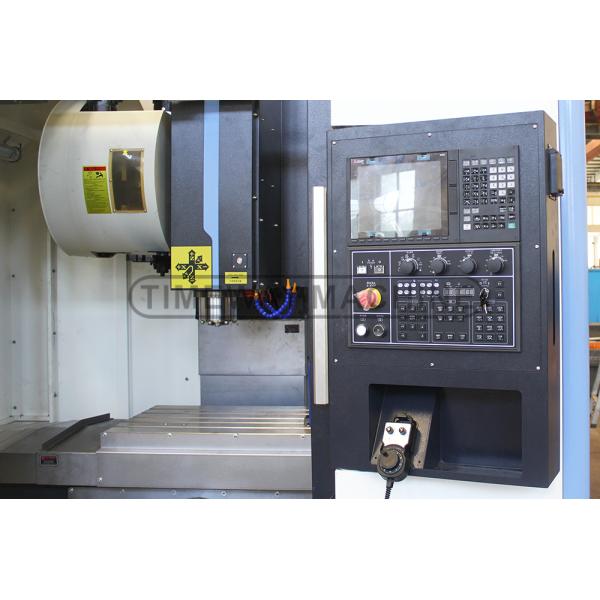

>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
========================

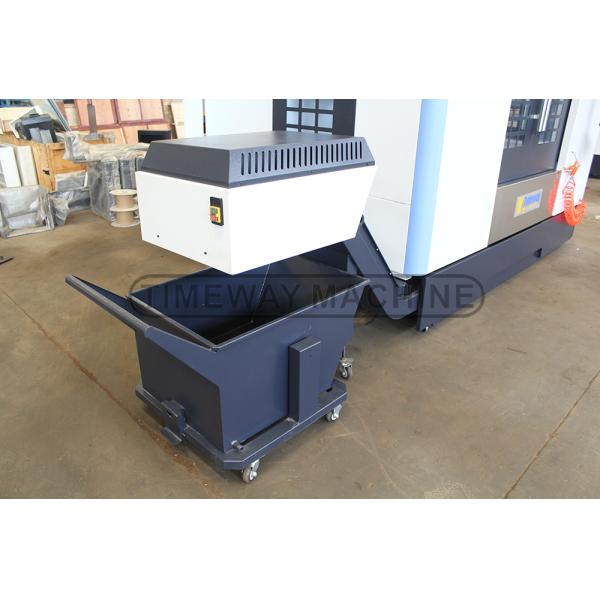

>> Chain-type chip conveyor comes optional.

Why Choose Us
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension

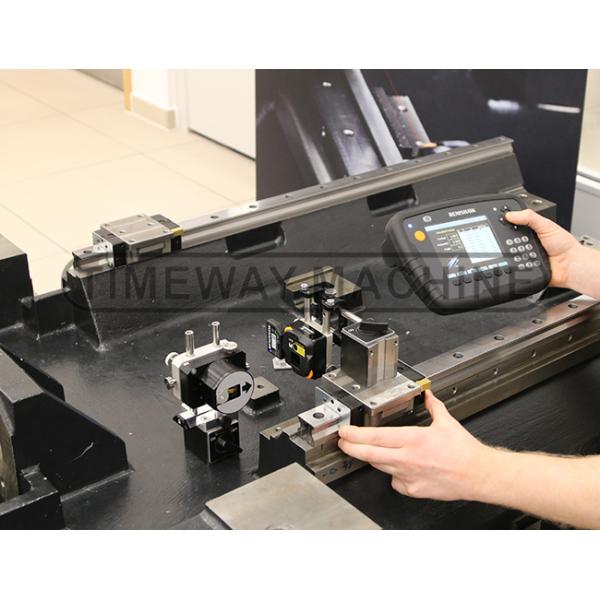

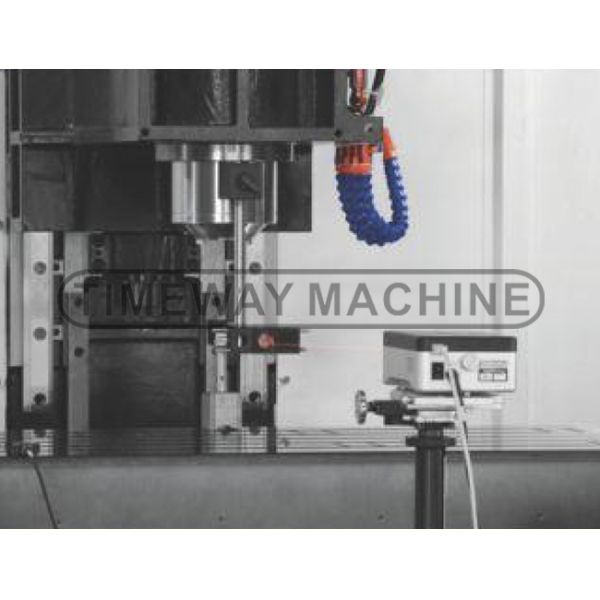

Renishaw laser interferometer for CNC vertical machining center：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension


Company Introduction
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
Vertical Milling Centers CNC Mill Machine Tool with 500x1000mm Workbench Dimension
